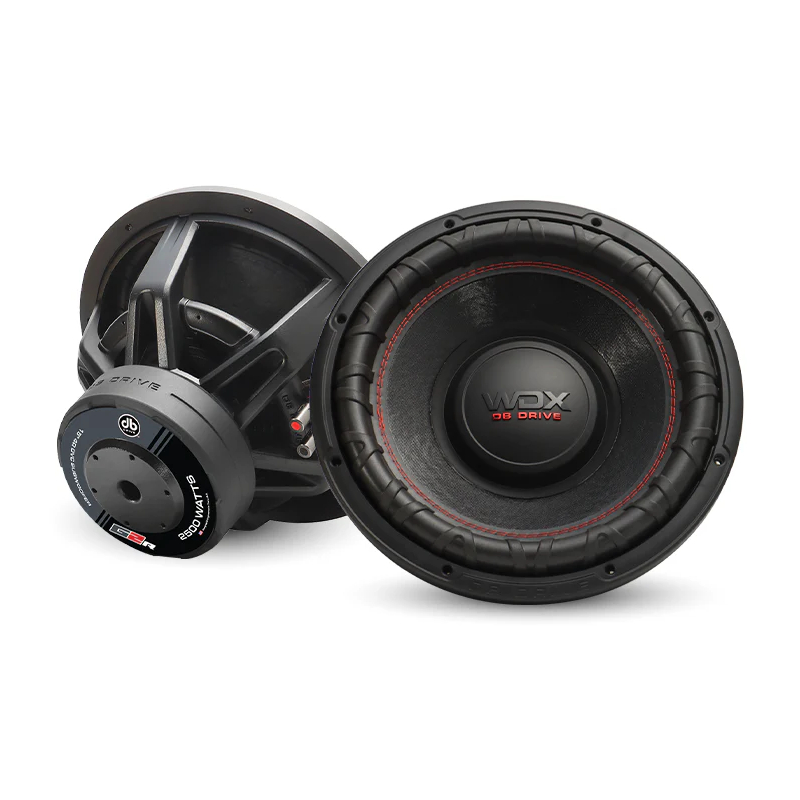

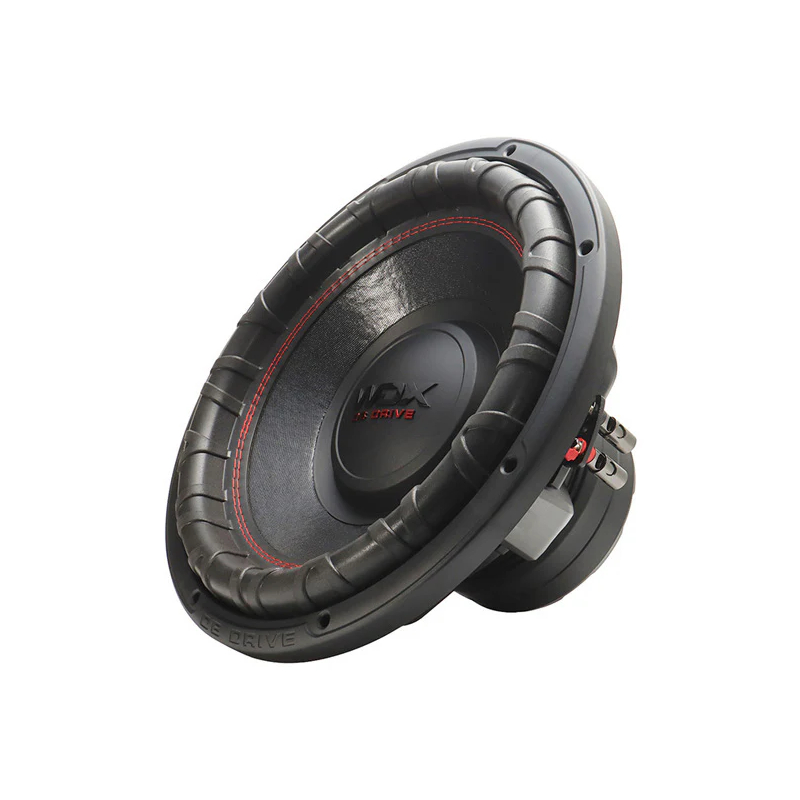

DB Drive WDX15G2R.4 WDX G2R Series 15" 1250W RMS (2500W Peak Power Handling) 4-Ohm, Dual Voice Coil Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Unleash Ground-Pounding Performance
The DB Drive WDX15G2R.4 15" subwoofer delivers serious low-end power with 1250 watts RMS and up to 2500 watts peak. Its 4-ohm dual voice coil configuration offers flexible wiring options, ideal for building custom, competition-grade systems. Designed for high-impact bass performance, it brings deep, clean, and aggressive sound to your ride.
Precision Built for Pure Sound

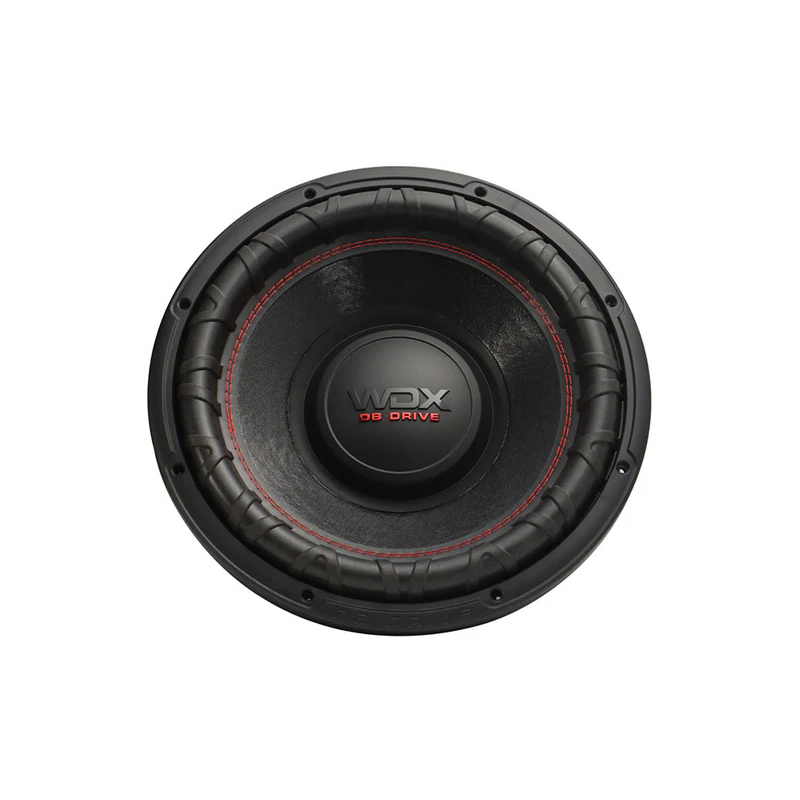

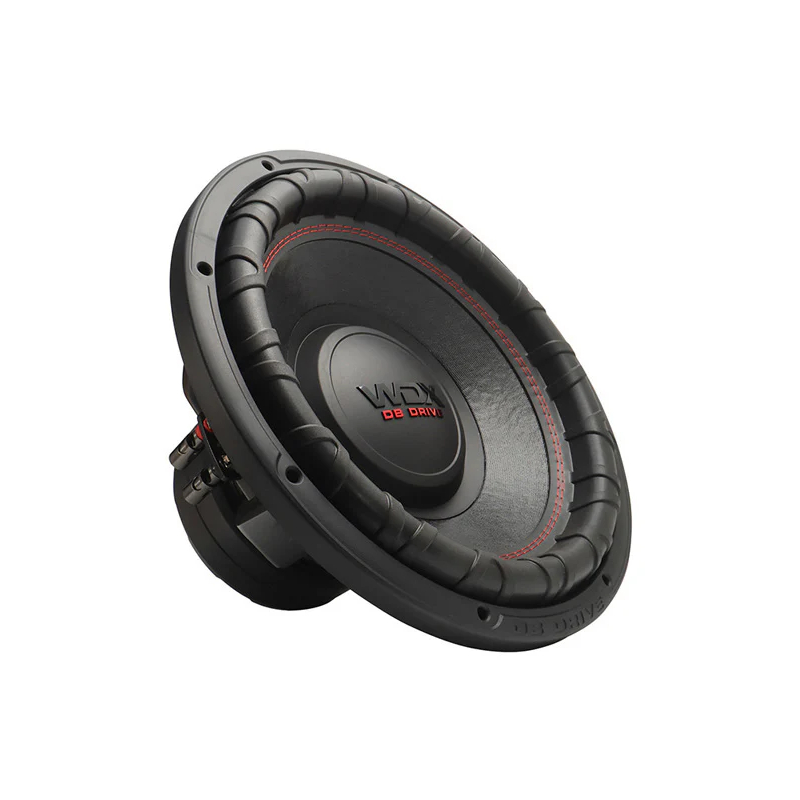

Crafted with a non-pressed paper cone, double-stitched reinforced foam surround, and dual poly-cotton dampeners, the WDX15G2R.4 maintains control and clarity at high excursion. A custom gasket ensures a tight seal, eliminating wave cancellation for tighter, harder-hitting bass. Built to push limits without distortion.
Durability Meets Design

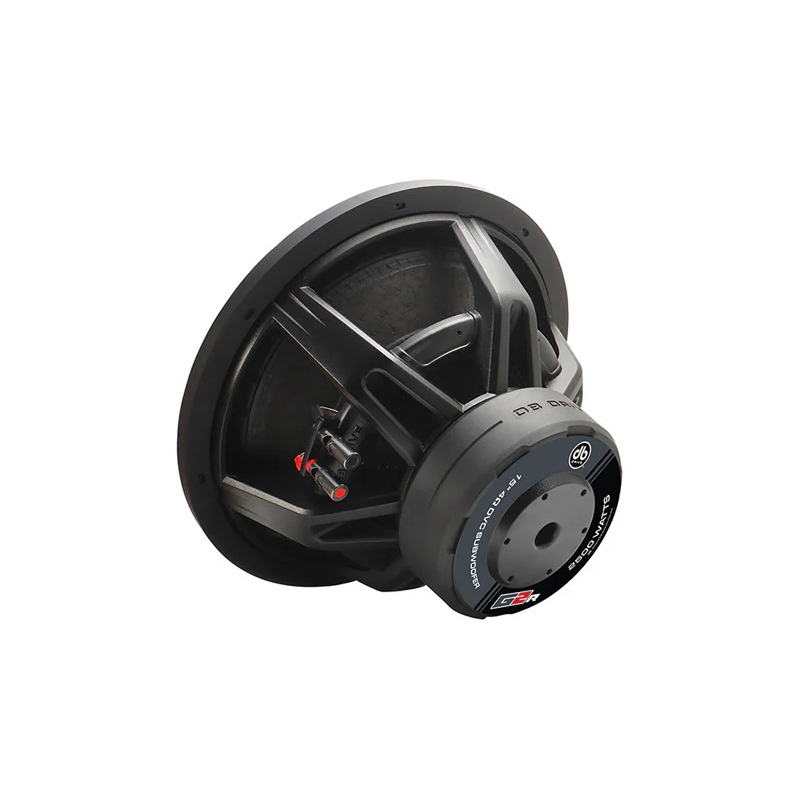

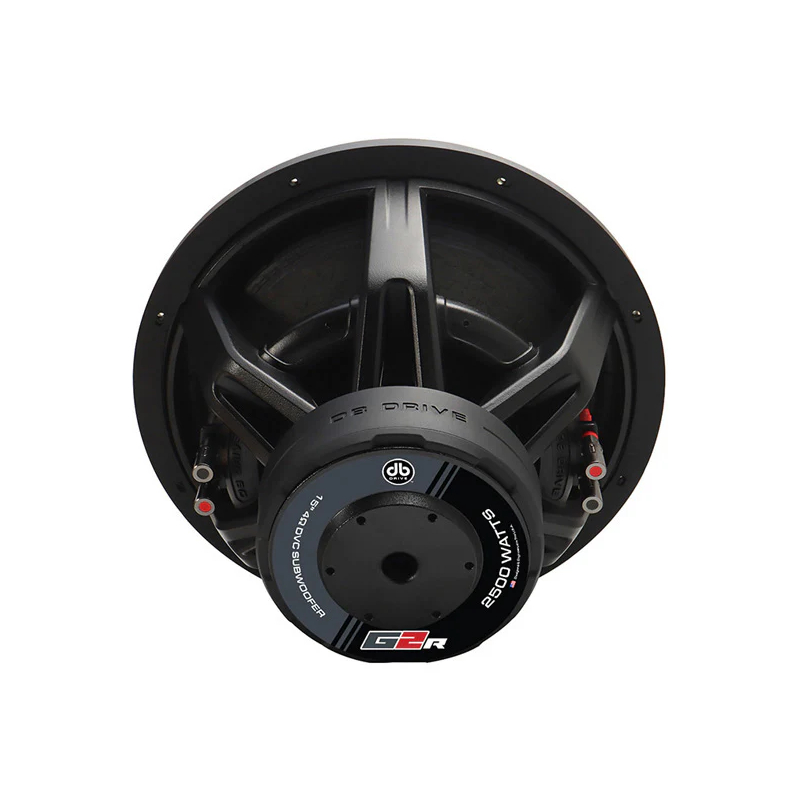

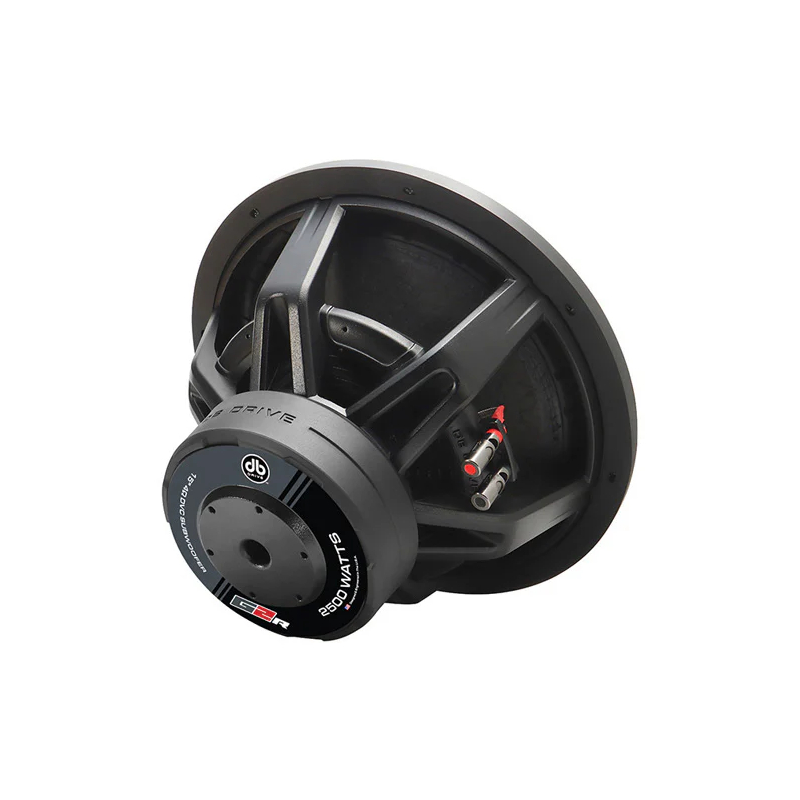

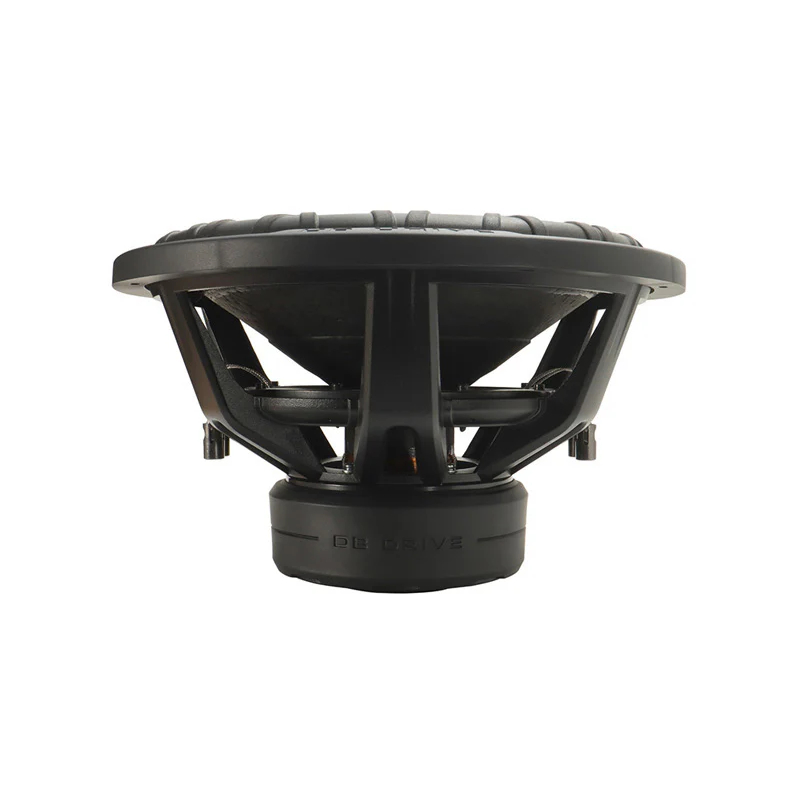

Built around a die-cast aluminum vented basket and 3.0" high-temperature anodized aluminum voice coil, this sub stays cool under pressure. Features include large gauge compression terminals, a protective magnet cover, and a custom-tooled aluminum basket for added strength and thermal control. Serious power, serious reliability.
- Diameter : 15 Inch
- Maximum Power : 2500 Watts
- Sensitivity : 83.7 dB
- Impedance : 4 Ohm
- Peak Power Handling : 2500 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 1250 Watts
Features:
- 3.0" Anodized Aluminum High-Temperature Voice Coil: Large-diameter coil built for high heat resistance and steady output in demanding setups.
- Non-Pressed Paper Cone: Offers lightweight and flexible construction for improved sound quality.
- Double-Stitched Reinforced Foam Surround: Provides enhanced durability and resilience, improving the speaker's lifespan.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.
- Die-Cast Aluminum Vented Basket: Promotes better airflow, preventing overheating and improving overall performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.

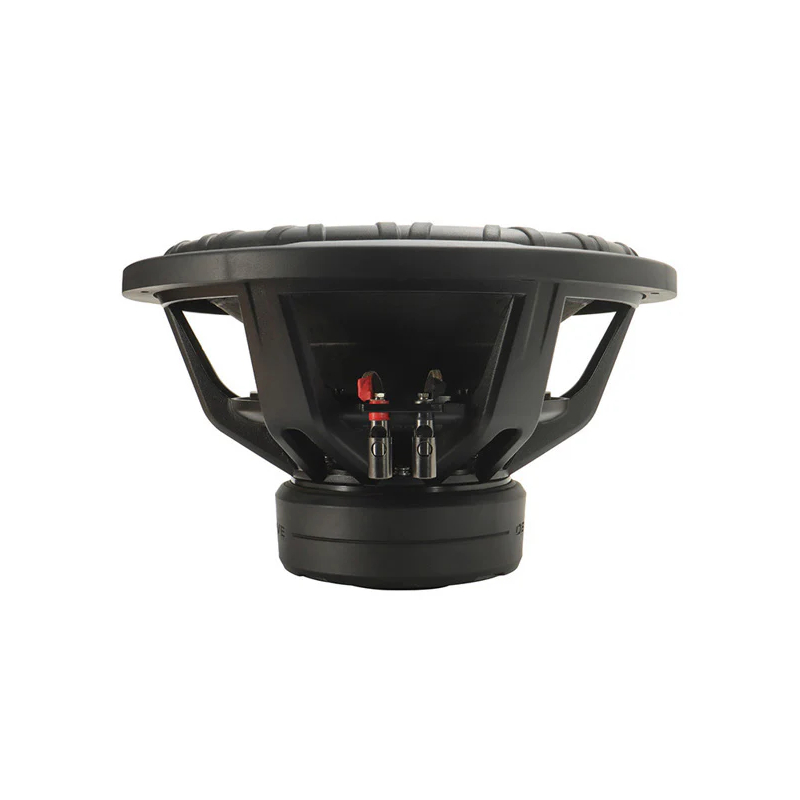

- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.
- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
Specifications:
- Dynamic Power Handling: 2500 Watts
- Nominal Power Handling: 1250 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 31.202 Hz
- D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
- Mechanical Quality Factor (Qms): 3.612
- Electrical Quality Factor (Qes): 1.320
- Total Quality Factor (Qts): 0.967
- Equivalent Air Volume (Vas): 65.567 L
- Mechanical Compliance of Suspension (CMS): 71.386 mm/N
- Mass of Diaphragm/Coil (Mms): 364.469 g
- Force Factor (BL): 18.613
- Sound Pressure Level (SPL): 83.7 dB
- UPC: 811536039446
- Weight: 28.4
