DB Drive WDX8G1.4 WDX G1 Series 8" 600W RMS (1200W Peak Power Handling) 4-Ohm, Dual Voice Coil Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Unleash Thunder on the Road
The DB Drive WDX8G1.4 delivers 1200 watts of peak power and features a massive 120 oz. magnet for deep, clean bass that hits with authority. This 8" subwoofer is designed to shake the streets with precise, powerful low frequencies—perfect for car audio enthusiasts who demand serious performance.
Built to Dominate, Engineered to Last
Equipped with a 2" BASV high-temperature voice coil and a non-pressed paper cone, the WDX8G1.4 is built to handle heavy loads without distortion. Dual poly-cotton dampeners and a double-stitched foam surround provide exceptional control and durability, ensuring reliable output during high excursion.
Sleek Design with a Purpose
A die-cast aluminum vented basket and rubber gasket trim ring enhance both cooling and structural integrity, while large-gauge compression terminals allow for secure wiring. The included protective magnet cover adds a rugged touch and safeguards the motor assembly. A subwoofer that looks as tough as it sounds.
- Diameter : 8 Inch
- Maximum Power : 1200 Watts
- Sensitivity : 80.9 dB
- Impedance : 4 Ohm
- Peak Power Handling : 1200 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 5.33 Inches
- RMS Power Handling : 600 Watts
Features:
- Non-Pressed Paper Cone: Offers lightweight and flexible construction for improved sound quality.
- Double-Stitched Foam Surround: Enhances durability by using double stitching, ensuring the foam remains securely in place during high excursion for improved performance over time.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.
- Die-Cast Aluminum Vented Basket: Promotes better airflow, preventing overheating and improving overall performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.
- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.
- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
- Ground-Up Engineering Design: Crafted by DB Drive engineers for extreme performance and deep bass impact.
- 2" BASV High-Temperature Voice Coil: Handles higher power levels with improved heat resistance, delivering stronger performance and extended reliability.
Specifications:
- Dynamic Power Handling: 1200 Watts
- Nominal Power Handling: 600 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 55.71 Hz
- D.C. Voice Coil Resistance (Re): 3.2 x 3.2Ω
- Mechanical Quality Factor (Qms): 6.234
- Electrical Quality Factor (Qes): 0.757
- Total Quality Factor (Qts): 0.675
- Equivalent Air Volume (Vas): 3.519 L
- Mass of Diaphragm/Coil (Mms): 150.516 g
- Force Factor (BL): 10.550
- Sound Pressure Level (SPL): 80.9 dB

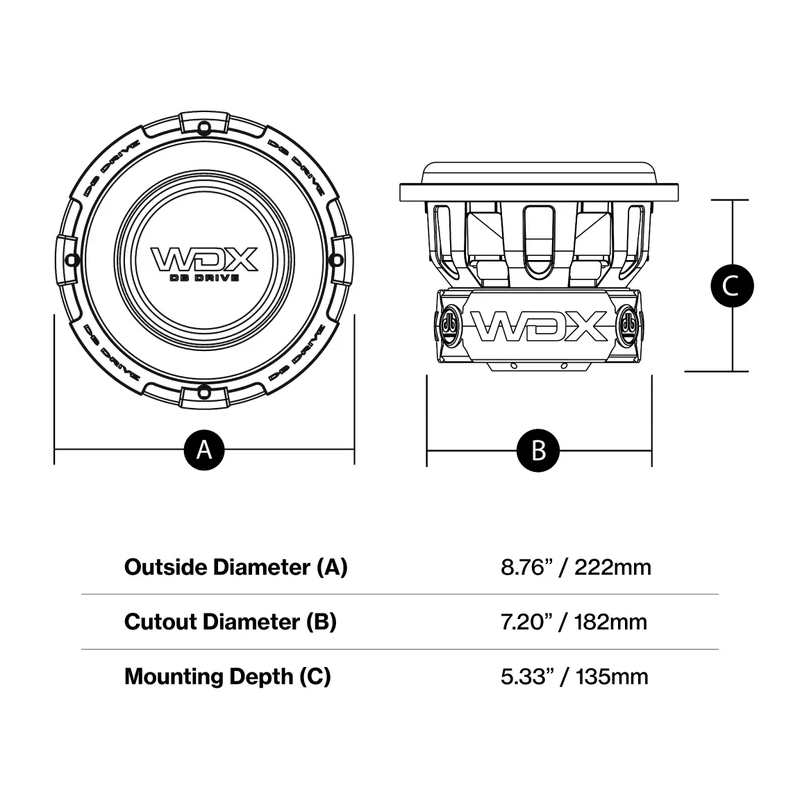

- Outside Diameter: 8.76"/ 222mm
- Cutout Diameter: 7.20"/ 182mm
- Mounting Depth: 5.33"/ 135mm
- UPC: 811536032645
- Weight: 10.5
- Authorized Internet Dealer
Warranty: 0 Months Onlinecarstereo.com warranty.
0 Months warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
