DB Drive WDX12G1.4 WDX G1 Series 12" 1000W RMS (2000W Peak Power Handling) 4-Ohm, Dual Voice Coil Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Feel the Power of Pure Bass
Ready to experience sound like never before? The DB Drive WDX12G1.4 12" subwoofer is here to take your car audio system to the next level. With a massive 2000W peak power handling, it delivers thunderous, deep bass that you can feel in your bones. Thanks to its high-temperature 3" BASV voice coil and non-pressed paper cone, you'll enjoy a sound that’s both clear and precise. Every beat hits just the way it should, with deep lows and crisp highs that make every song come alive.
Built to Last, Sound That Thrives
This subwoofer isn't just about power—it’s built to last. The DB Drive WDX12G1.4 features a die-cast aluminum vented basket that keeps things cool even when the volume goes up. Plus, the double-stitched foam surround and poly-cotton dampeners ensure your sound stays distortion-free, even at peak levels. So whether you're hitting those low notes or pushing it to the max, this subwoofer can handle it all without breaking a sweat.
Quick, Easy Setup with a Sleek Design
Not only does it perform like a beast, but the WDX12G1.4 also looks great while doing it. With easy-to-use large gauge compression terminals and a protective magnet cover, installation is a breeze. It’s designed to fit seamlessly into your setup, so you can get back to enjoying your music in no time. Upgrade your car audio system with the DB Drive WDX12G1.4 and feel the difference—sound that’s powerful, durable, and easy to install!
- Diameter : 12 Inch
- Maximum Power : 2000 Watts
- Sensitivity : 84.1 dB
- Impedance : 4 Ohm
- Peak Power Handling : 2000 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 6.84 Inches
- RMS Power Handling : 1000 Watts
Features:
- Non-Pressed Paper Cone: Offers lightweight and flexible construction for improved sound quality.
- Double-Stitched Foam Surround: Enhances durability by using double stitching, ensuring the foam remains securely in place during high excursion for improved performance over time.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.
- Die-Cast Aluminum Vented Basket: Promotes better airflow, preventing overheating and improving overall performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.
- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.
- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
- 3" BASV High-Temperature Voice Coil: Supports extreme power handling and superior thermal stability for peak performance under heavy load.
Specifications:
- Dynamic Power Handling: 2000 Watts
- Nominal Power Handling: 1000 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 40.93 Hz
- D.C. Voice Coil Resistance (Re): 3.2 x 3.2Ω
- Mechanical Quality Factor (Qms): 3.885
- Electrical Quality Factor (Qes): 0.739
- Total Quality Factor (Qts): 0.621
- Equivalent Air Volume (Vas): 18.014 L
- Mass of Diaphragm/Coil (Mms): 335.972 g
- Force Factor (BL): 13.679
- Sound Pressure Level (SPL): 84.1 dB

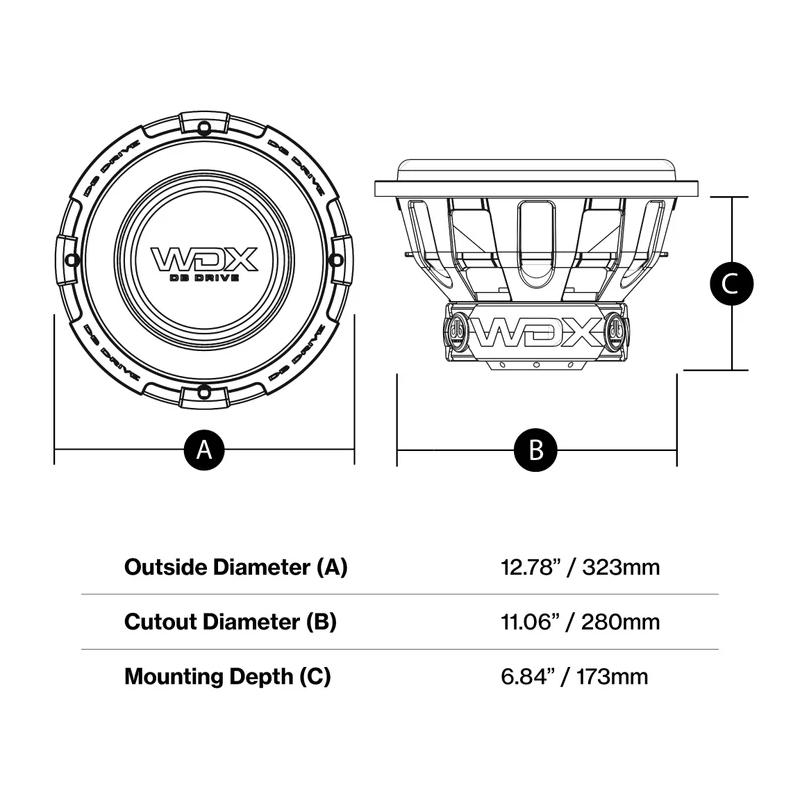

- Outside Diameter: 12.87"/ 323mm
- Cutout Diameter: 11.06"/ 280mm
- Mounting Depth: 6.84"/ 173mm
- UPC: 811536032669
- Weight: 24.6
- Authorized Internet Dealer
Warranty: 0 Months Onlinecarstereo.com warranty.
0 Months warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
