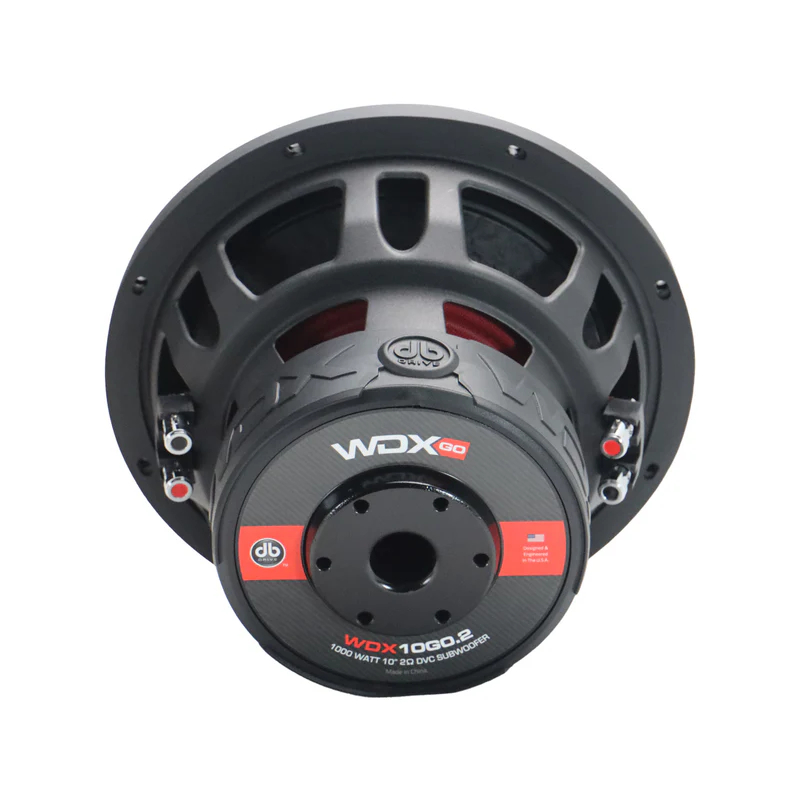

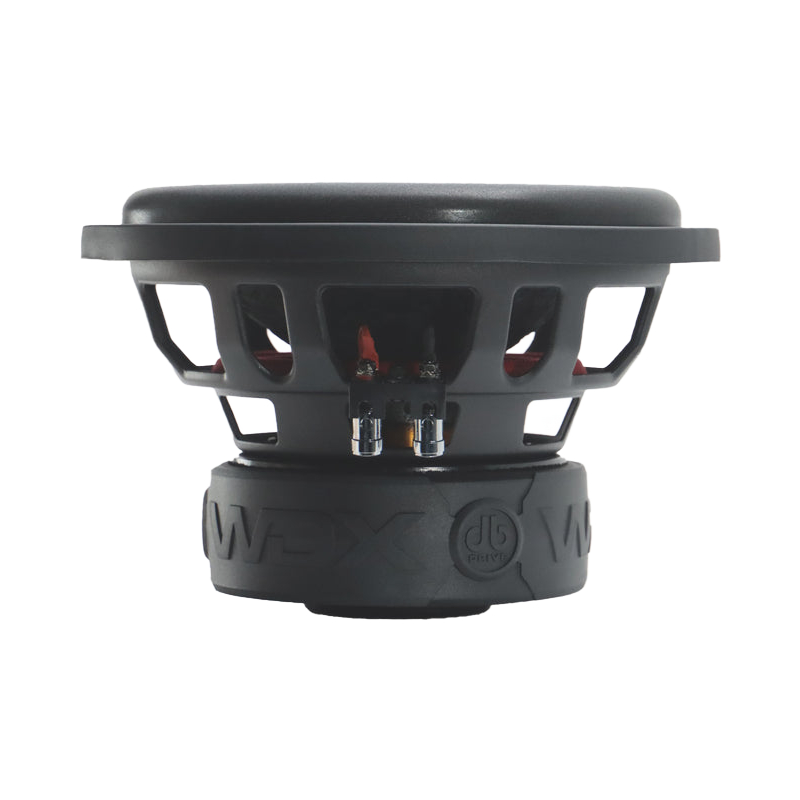

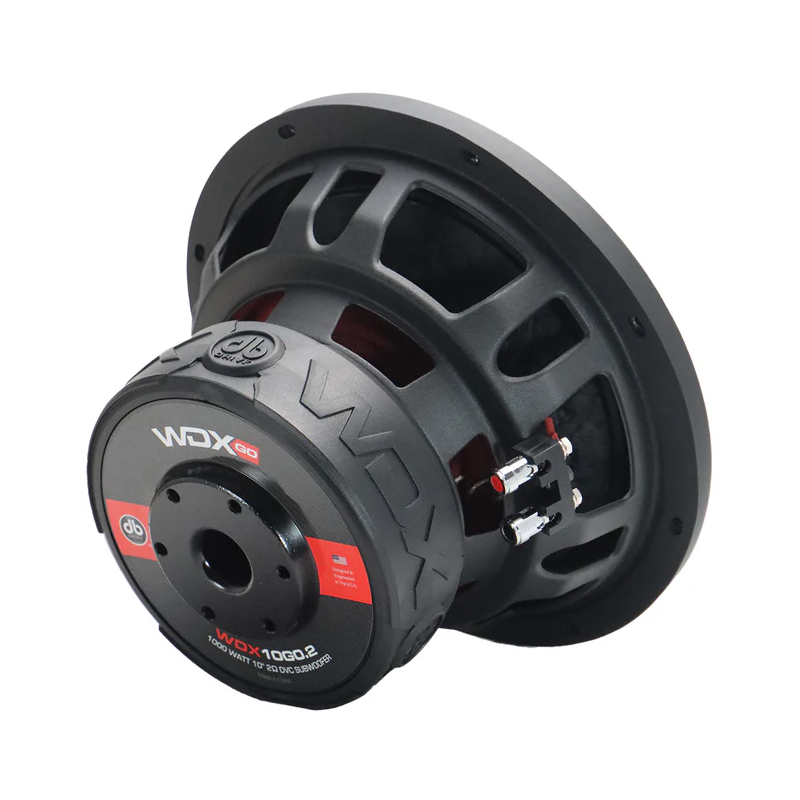

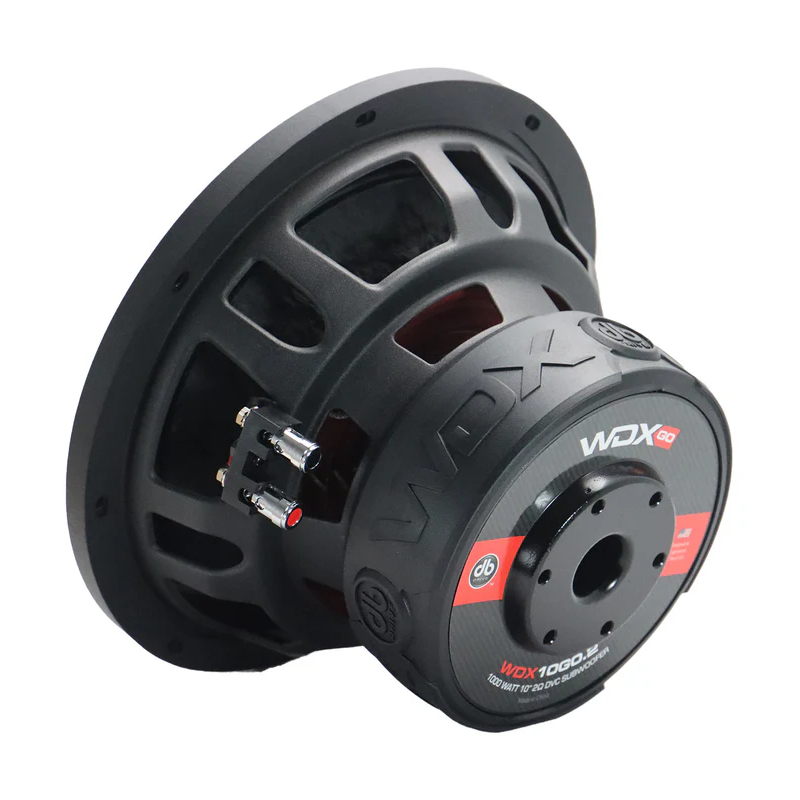

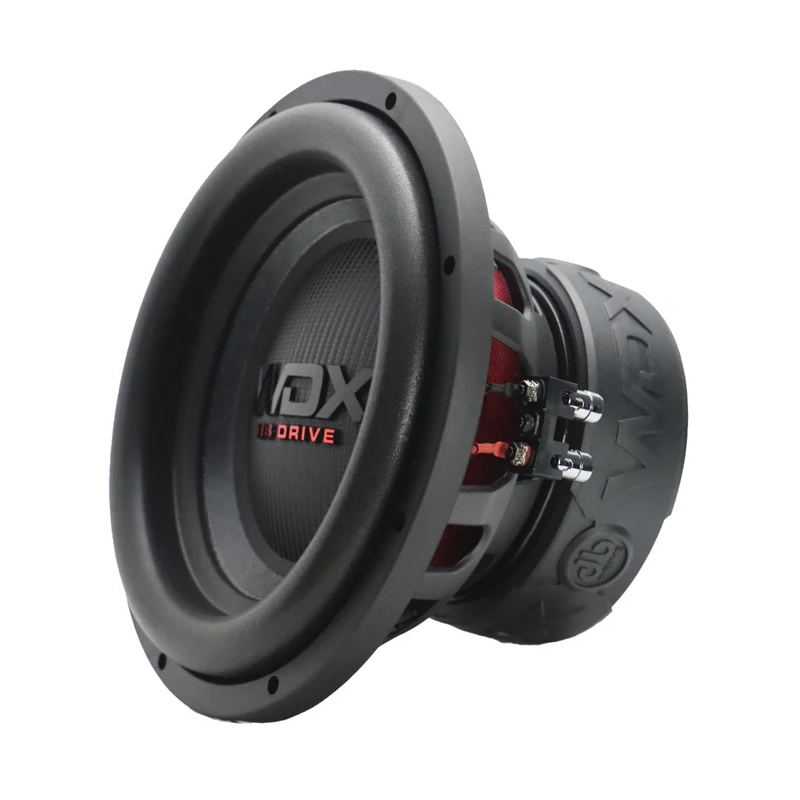

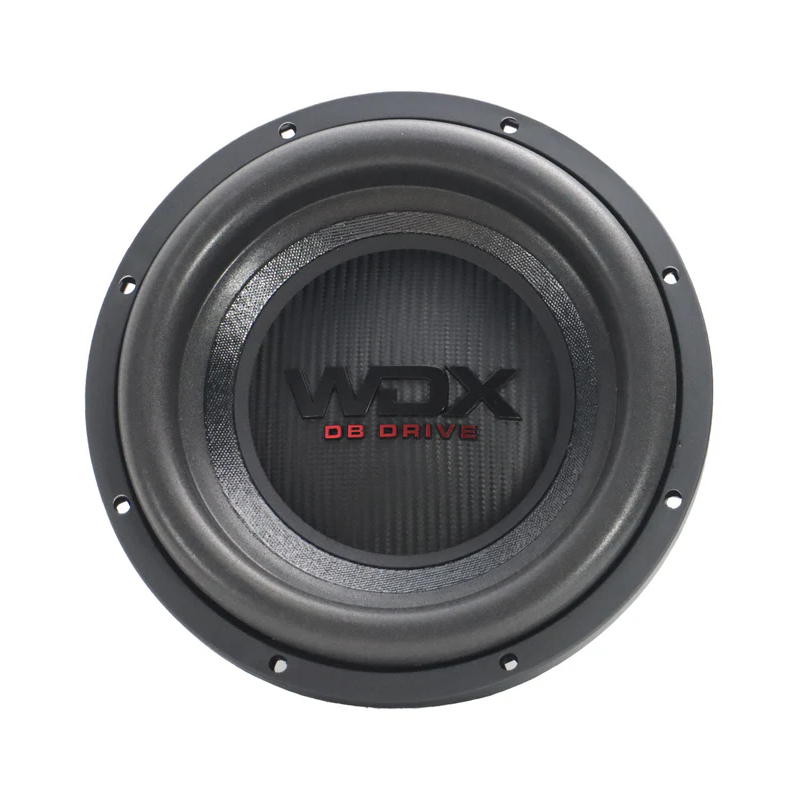

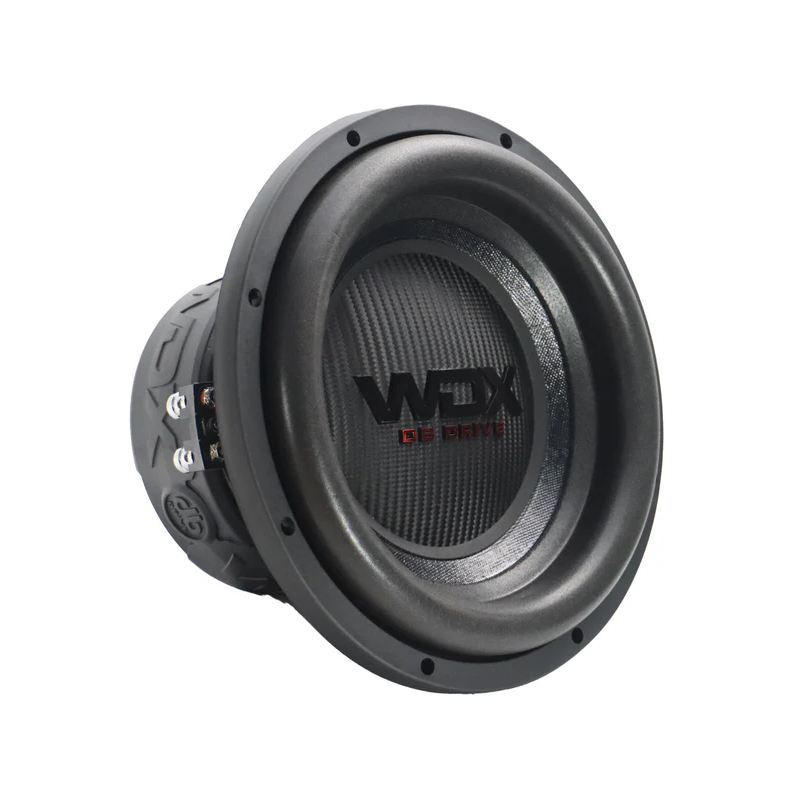

DB Drive WDX10G0.2 WDX G0 Series 10" 500W RMS (1000W Peak Power Handling) 2-Ohm, Dual Voice Coil Stamped-Frame Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Unleash Sonic Thunder
The DB Drive WDX10G0.2 delivers deep, thunderous bass with 500 watts RMS and 1000 watts peak power handling. This 10-inch subwoofer is designed to elevate your in-car audio experience with rich, dynamic lows that bring your music to life.
Built to Thrill, Designed to Last
Featuring a 2.5" high-temperature voice coil, reinforced paper cone, and double-stitched foam surround, the WDX10G0.2 is built for both performance and durability. Dual poly-cotton spider dampeners and a stamped steel vented basket ensure reliable performance under heavy use.
Precision Meets Power
This subwoofer features dual 2-ohm voice coils for flexible wiring configurations, large gauge compression terminals for secure connections, and a protective magnet cover for added durability. Finished with a rubber gasket trim ring, the WDX10G0.2 blends clean design with serious performance.
- Diameter : 10 Inch
- Maximum Power : 1000 Watts
- Sensitivity : 85.2 dB
- Impedance : 2 Ohm
- Peak Power Handling : 1000 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 500 Watts
Features:
- Reinforced Paper Cone: Delivers a balance of lightweight responsiveness and enhanced durability for improved bass accuracy and performance.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.
- Stamped Cast Basket: Provides structural rigidity while maintaining efficient airflow for cooler operation and consistent performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.
- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.
- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
- 2.5" High-Temperature Voice Coil: Accommodates increased power handling and enhances thermal efficiency for superior long-term performance.
- 100 oz Magnet: Provides strong magnetic force for improved cone control, delivering deeper bass and greater overall output.
Specifications:
- Dynamic Power Handling: 1000 Watts
- Nominal Power Handling: 500 Watts
- Impedance: Dual 2Ω Voice Coil
- Resonant Frequency (fs): 36.392 Hz
- D.C. Voice Coil Resistance (Re): 1.9 x 2Ω
- Mechanical Quality Factor (Qms): 2.192
- Electrical Quality Factor (Qes): 0.432
- Total Quality Factor (Qts): 0.361
- Equivalent Air Volume (Vas): 19.199 m
- Mechanical Compliance of Suspension (Cms): 102.579u
- BL Product (BL): 9.681 N/A
- Diaphragm Mass inc. Airload (Mms): 186.453 gr
- Sound Pressure Level (SPL): 85.2 dB
- X-MAX: 14mm
- UPC: 811536038289
- Weight: 16
