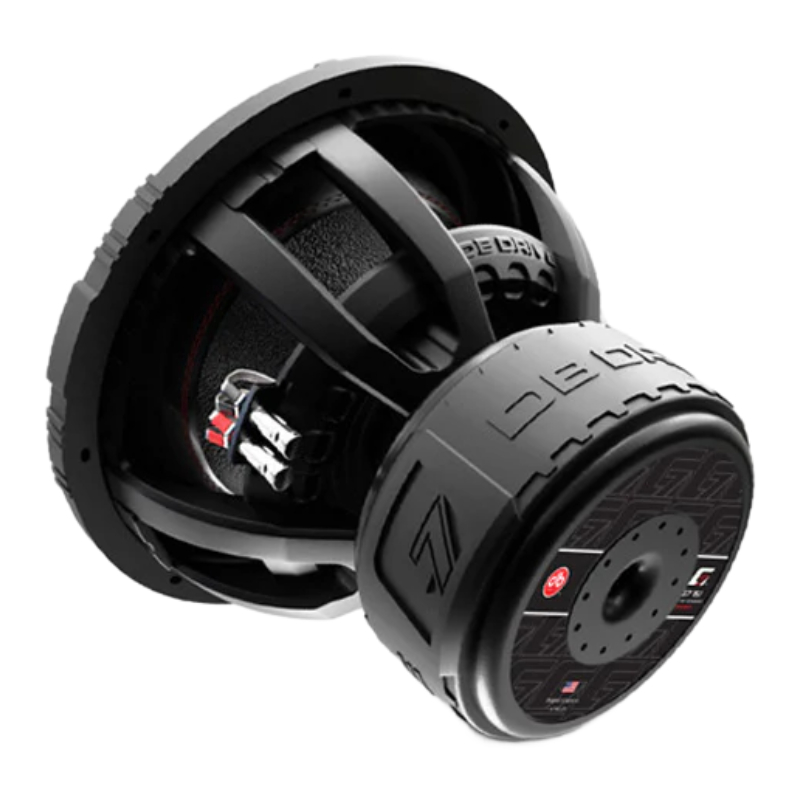

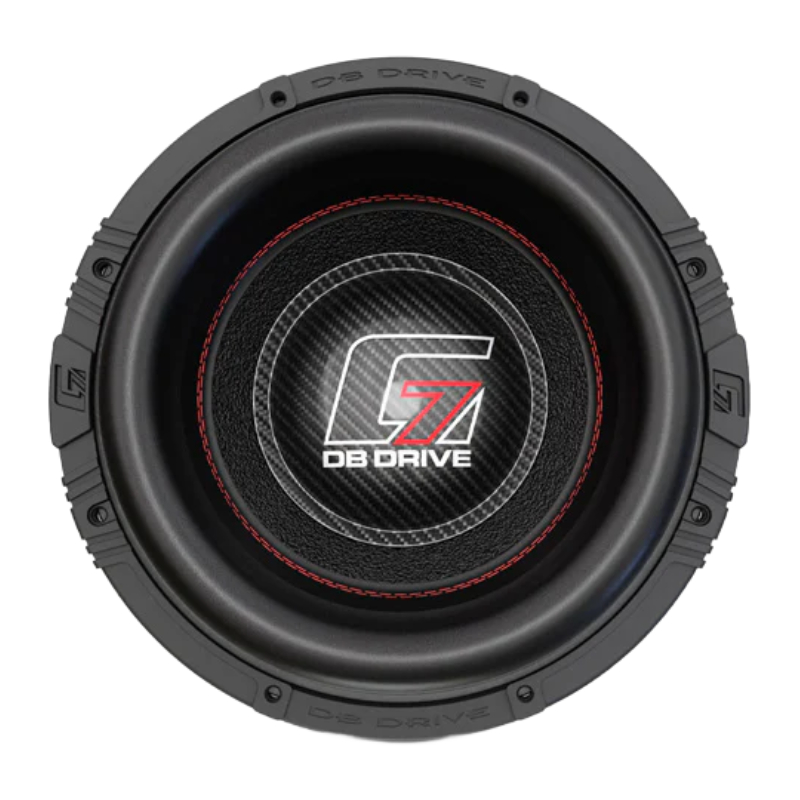

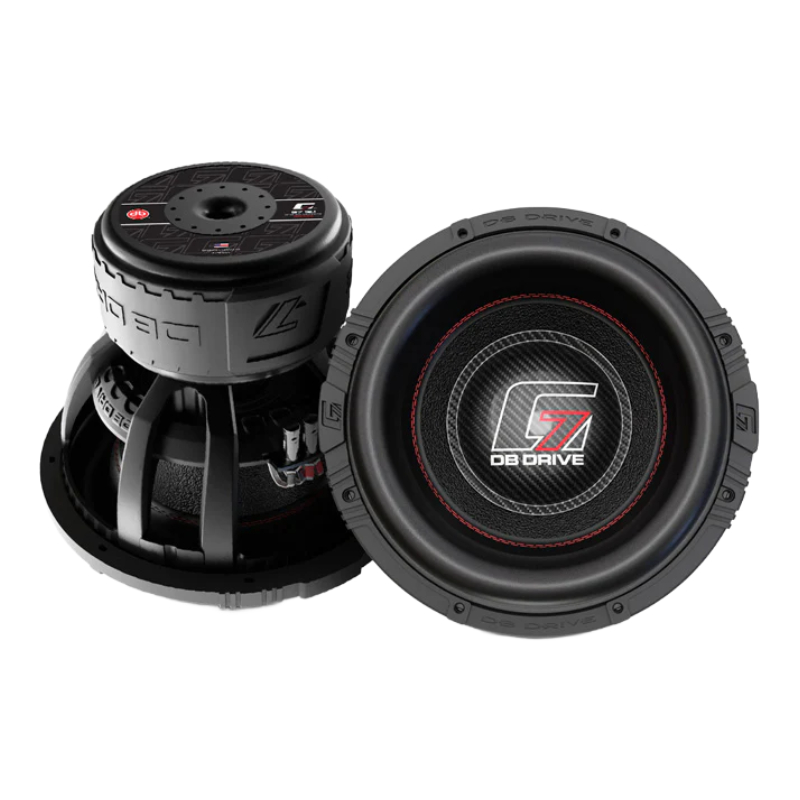

DB Drive G7 15.2 G7 Series 15" 4000W RMS (8000W Peak Power Handling) 2 Ohm, Dual Voice Coil Competition Grade Component Car Subwoofer
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 15" Dual Voice Coil Competition Grade Component Car Subwoofer
- • Owner's Manual

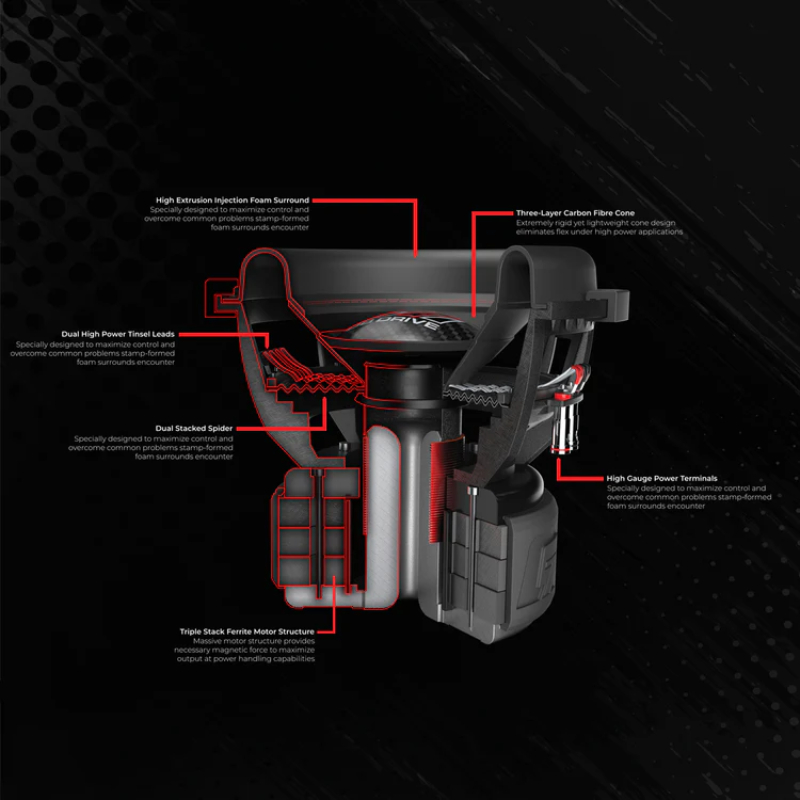

Engineered for Powerful Bass
Experience deep, controlled bass with the high-excursion foam surround, while the true carbon fiber dust cap delivers lightweight strength and accuracy. The custom die-cast aluminum basket provides a durable, vibration-resistant foundation for stable, distortion-free performance.
Built for Power and Precision
Triple-layer progressive dampeners ensure accurate cone movement and long-lasting performance, while large gauge push terminals make wiring simple and secure. A 3-inch high-temperature, 4-layer voice coil delivers extreme power handling with rock-solid reliability.
Engineered for Maximum Output
A custom rubber protective magnet band shields the motor for lasting durability, while the triple-stacked Y35 ferrite oxide magnet delivers immense strength and power for peak performance.
- Diameter : 15 Inch
- Sensitivity : 84.4 dB
- Impedance : 2 Ohm
- Peak Power Handling : 8000 Watts
- Top Mount Depth : 10.78 Inches
- Number of Voice Coils : Dual
- Mounting Depth : 10.78 Inches
- RMS Power Handling : 4000 Watts
Features:
- High Excursion Foam Surround: Designed for deep, controlled bass response
- True Carbon Fiber Dust Cap: Lightweight and rigid for strength and accuracy
- Custom Die-Cast Aluminum Basket: Durable, vibration-resistant frame for stability
- Triple-Layer Progressive Dampeners: Ensures precise cone movement and longevity
- Large Gauge Push Speaker Terminals: Simplifies secure and efficient wiring
- 3-Inch High-Temperature 4-Layer Voice Coil: Handles extreme power with reliability
- Custom Rubber Protective Magnet Band: Shields magnet for durability and protection
- Triple-Stacked Y35 Ferrite Oxide Magnet: Delivers powerful motor strength for maximum output
Specifications:
- Structure: 15" (38.1 cm) Woofer
- Dynamic Power Handling: 8000W
- Nominal Power Handling (RMS): 4000W
- Impedance: Dual 2 Ω Voice Coil
- Resonant Frequency (Fs): 23.461 Hz
- D.C. Voice Coil Resistance (Re): 2 × 2 Ω
- Mechanical Quality Factor (Qms): 2.466
- Electrical Quality Factor (Qes): 0.573
- Total Quality Factor (Qts): 0.465
- Equivalent Air Volume to Cms (Vas): 79.836 L
- Mass of Diaphragm/Coil (Mms): 466.313 g
- Force Factor (Bl): 19.601
- Sound Pressure Level (SPL): 84.4 dB
- Overall Diameter: 15.82" (402 mm)
- Mounting Depth: 10.78" (274 mm)
- Cutout Diameter: 13.85" (352 mm)
- UPC:
- Weight: 7
