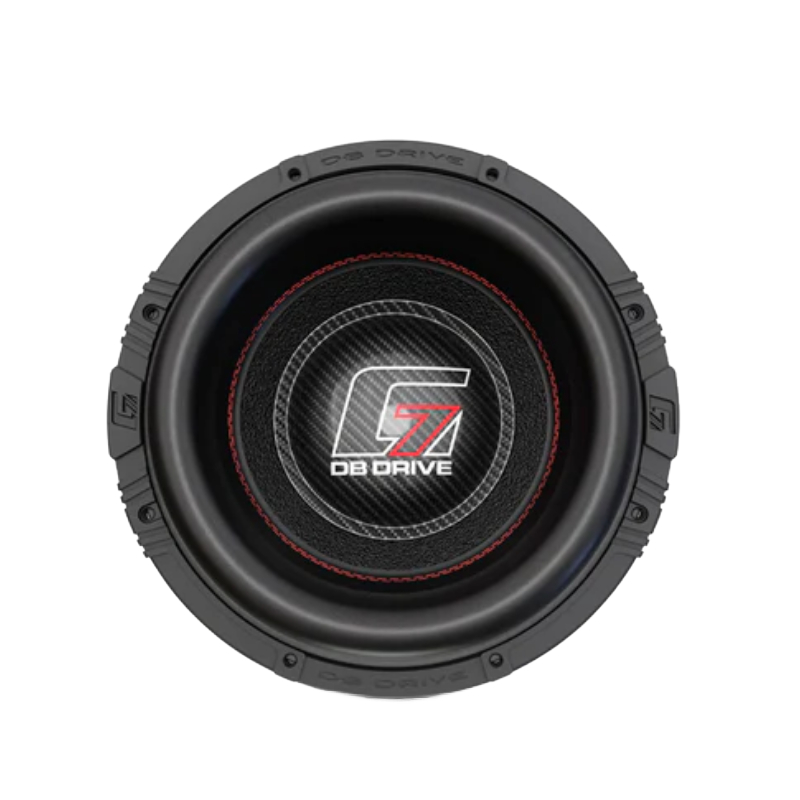

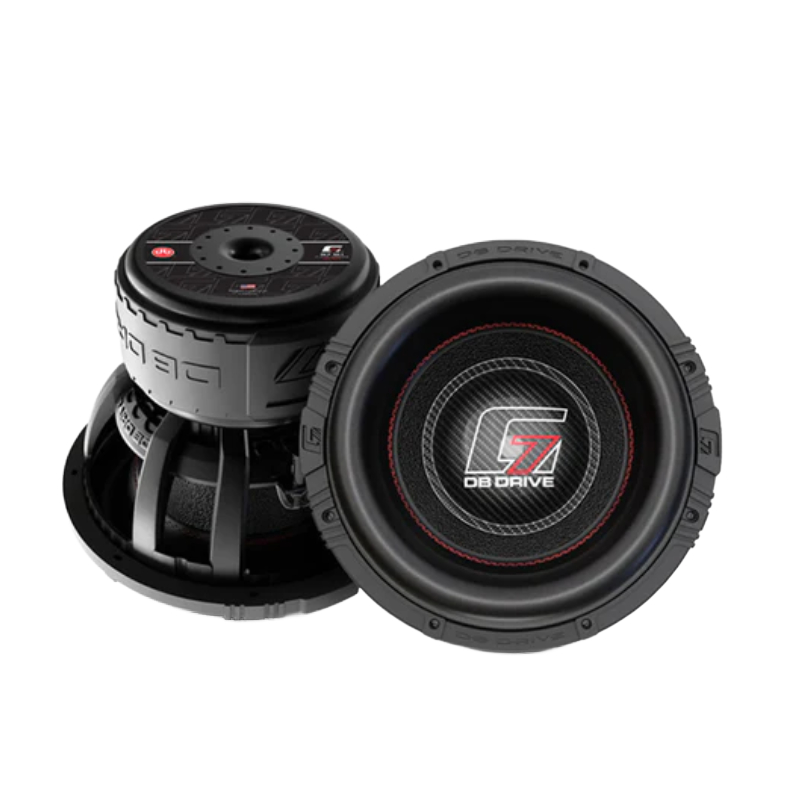

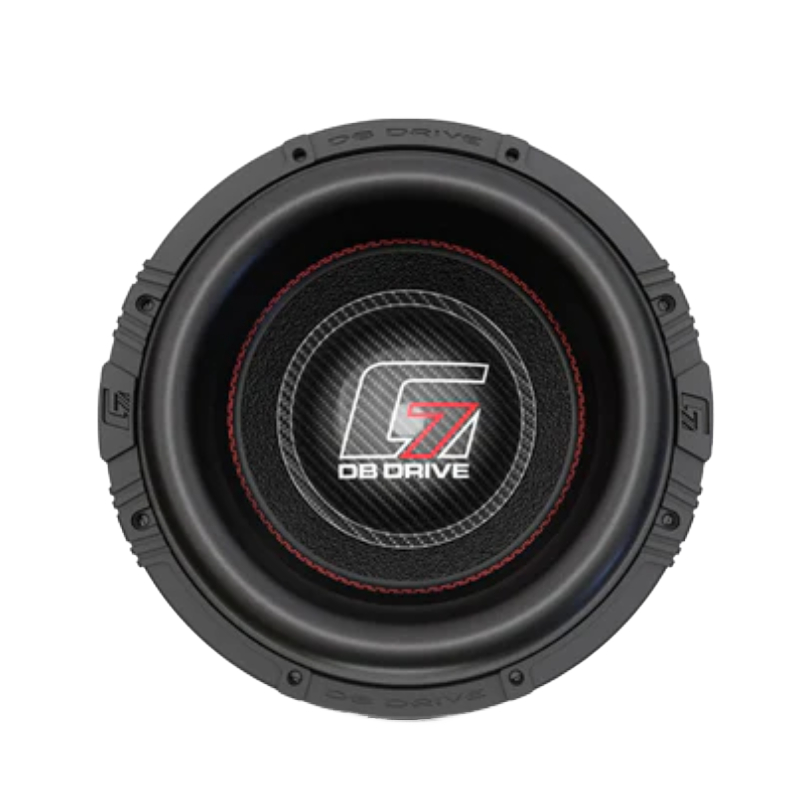

DB Drive G7 12.2 G7 Series 12" 4000W RMS (8000W Peak Power Handling) 2 Ohm, Dual Voice Coil Component Car Subwoofer
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Premium Subwoofer Design for Power and Precision
Experience superior performance with a high-excursion foam surround that allows greater cone movement for deeper, more responsive bass. The true carbon fiber dust cap adds both strength and lightweight efficiency, enhancing overall sound clarity. Built on a custom die-cast aluminum basket, this subwoofer ensures maximum rigidity and heat dissipation—perfect for high-power, audiophile-grade systems.
Engineered for Power, Control, and Reliability
Designed for serious audio enthusiasts, this subwoofer features a triple-layer progressive dampening system that enhances cone control and long-term durability. The large-gauge push speaker terminals ensure secure, low-resistance connections, while the 3" high-temperature 4-layer voice coil delivers exceptional power handling and consistent performance under extreme conditions.
Powerful Magnetic Precision with Ultimate Protection
Built for strength and performance, this subwoofer features a triple-stacked Y35 ferrite oxide magnet that delivers massive motor force and precise cone control. A custom rubber protective magnet band adds durability and impact resistance, ensuring long-lasting reliability even under high-demand audio conditions.
- Diameter : 12 Inch
- Sensitivity : 82 dB
- Impedance : 2 Ohm
- Peak Power Handling : 8000 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 4000 Watts
Features:
- Surround: High-excursion foam surround
- Dust Cap: True carbon fiber dust cap
- Basket: Custom die-cast aluminum basket
- Dampeners: Triple-layer progressive dampeners
- Terminals: Large gauge push speaker terminals
- Voice Coil: 3-inch high-temperature 4-layer voice coil
- Magnet Band: Custom rubber protective magnet band
- Magnet: Triple-stacked Y35 ferrite oxide magnet
Specifications:
- Structure: 12" (30.48cm) Woofer
- Dynamic Power Handling: 8000 Watts
- Nominal Power Handling: 4000 Watts
- Impedance: Dual 2Ω Voice Coil
- Resonant Frequency (Fs): 30.346Hz
- D.C. Voice Coil Resistance (Re): 2.2Ω
- Mechanical Quality Factor (Qms): 2.269
- Electrical Quality Factor (Qes): 0.613
- Total Quality Factor (Qts): 0.482
- Equivalent Air Volume (Vas): 22.479L
- Mass of Diaphragm/Coil (Mms): 386.199g
- Force Factor (Bl): 19.610
- Sound Pressure Level (SPL): 82dB
- UPC:
- Weight: 15
