Raw Titanium Clarity That Hits Hard and Clean

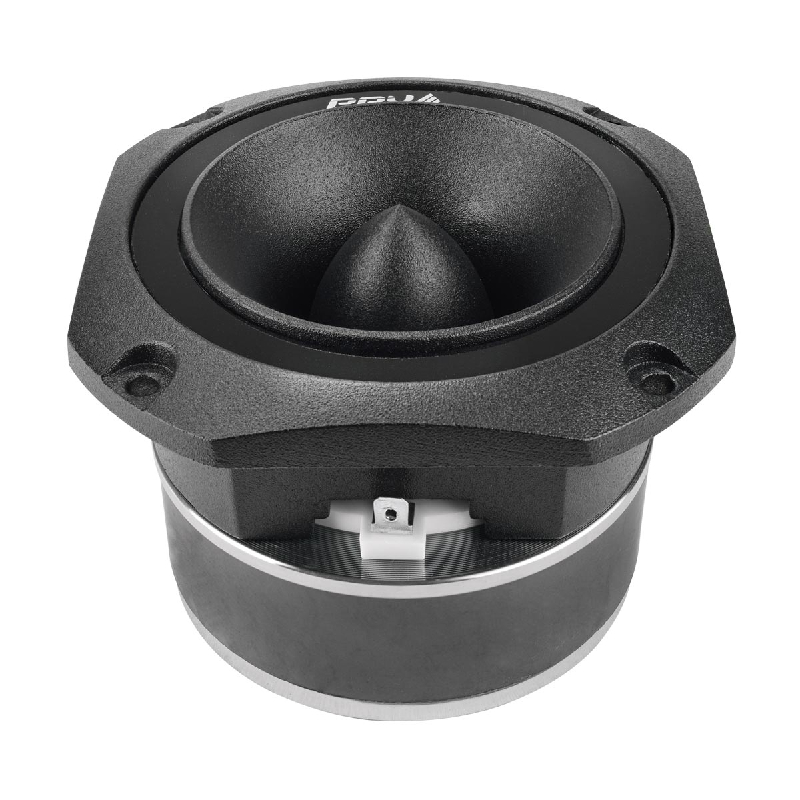

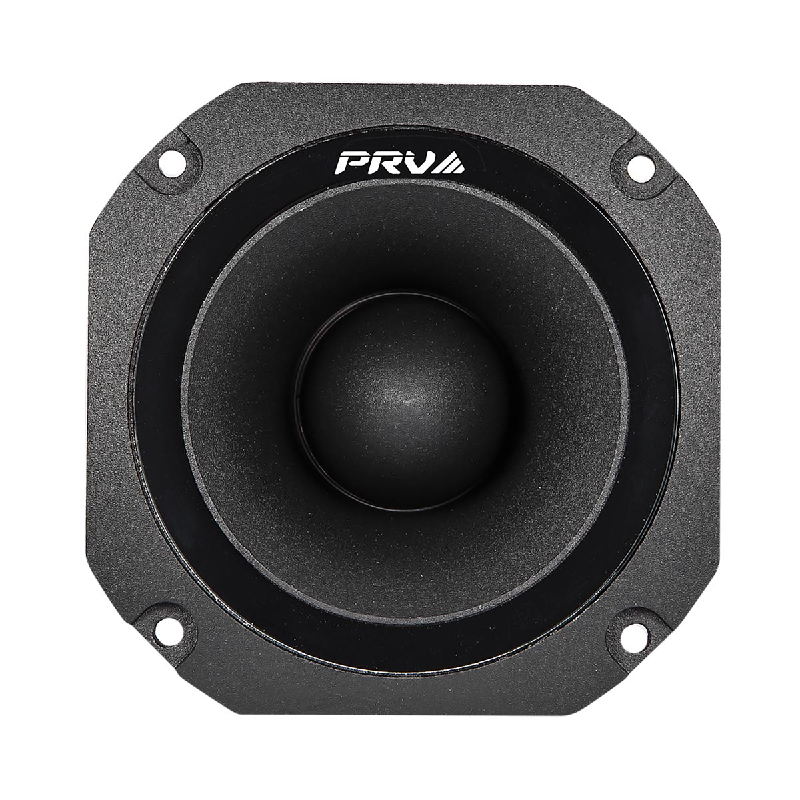

The PRV Audio TW700Ti titanium super tweeter is built for car audio setups that demand serious top-end authority. With a horn-loaded titanium diaphragm, it pushes out aggressive, ultra-detailed highs that stay sharp and controlled even when the system is running loud. This is the kind of tweeter that makes cymbals crack, vocals pop, and every detail stand out with pro-level clarity that cuts through heavy bass systems without getting buried.
Extreme Efficiency Built for High-SPL Systems
With a massive 107 dB sensitivity, this tweeter doesn’t need much power to get loud, making it perfect for high-output builds where efficiency matters. It’s equipped with a 1.5-inch high-temperature voice coil and a strong motor structure that supports up to 240W RMS and 480W peak power, giving you serious headroom when things get intense. The wide 3,500 Hz to 20,000 Hz range keeps the highs extended and clean so your system sounds full and detailed at any volume.
Pro-Level Build Quality for Serious Install Flexibility
The TW700Ti uses a heavy-duty ferrite motor assembly to improve magnetic control and keep the sound tight and accurate even under pressure. A built-in capacitor works as a protection crossover, filtering low frequencies so the tweeter stays safe and distortion-free. Its 4-inch square aluminum faceplate also makes installation clean and flexible, especially for tight or side-by-side mounting setups. Built with a Kapton former and CCAW voice coil, it’s made to handle long-term high-SPL use without losing stability or performance.
Frequently Asked Questions (FAQ)
- • Why does my TW700Ti sound too loud compared to my midrange speakers?
Many users experience an unbalanced system when the tweeter output is higher than the rest of the setup. Adjusting the amplifier gain, EQ levels, and crossover settings can help blend the highs with the midrange for a smoother sound.
- • Can I run the TW700Ti directly from my amplifier without protection?
No. Connecting the tweeter without proper crossover protection can allow harmful low frequencies to reach the driver. Using the correct high pass crossover helps prevent damage and improves overall performance.
- • Why is my TW700Ti producing a harsh or piercing sound?
Sharp treble is usually caused by excessive high frequency boost, incorrect tuning, or too much amplifier power. Lowering the treble level and adjusting the crossover can create cleaner and more comfortable highs.
- • Why does my TW700Ti distort when playing music at maximum volume?
Distortion often happens when the amplifier is clipping or the tweeter is being pushed beyond its recommended operating range. Proper gain adjustment and system tuning help maintain clear output at higher volume levels.
- • Is the TW700Ti suitable for powerful car audio and SPL builds?
Yes. The TW700Ti is designed for high output systems that require strong treble projection and detailed high frequencies. It performs best when matched with the correct amplifier and crossover settings.
- • Why does my TW700Ti have lower volume on one side of my vehicle?
Uneven output is commonly caused by wiring issues, incorrect polarity, amplifier channel differences, or mounting position. Checking connections and balancing both channels can solve the problem.
- • Can I pair the TW700Ti with PRV midrange and midbass speakers?
Yes. Many users combine the TW700Ti with PRV midrange and midbass drivers to create a complete system with powerful vocals, strong impact, and detailed high frequency response.
- • Why does my TW700Ti stop working after being played loudly for a long time?
Extended loud play can damage the tweeter when the amplifier clips, the crossover is set too low, or excessive power is applied. Proper tuning and frequency protection help improve durability.
- • How can I make the TW700Ti sound clearer for vocals?
Clear vocals require proper balance between the tweeter and midrange speakers. Adjusting crossover points, reducing unnecessary EQ boosts, and positioning the tweeter correctly can improve vocal detail.
- • Why does my TW700Ti sound different after changing my vehicle’s audio setup?
Changes in amplifier power, enclosure design, speaker placement, and tuning settings can affect the tweeter’s performance. Recalibrating the system after upgrades helps the TW700Ti deliver consistent sound quality.
- Diameter : 3.58 Inch
- RMS Power Range : 240 Watts
- Peak Power Handling : 480 Watts
Features:
- High-Impact Titanium Horn Precision: Engineered with a titanium diaphragm and horn-loaded design to deliver aggressive, ultra-detailed high frequencies with exceptional clarity and projection for professional-grade car audio systems.
- Extreme Sensitivity Output Performance: Delivers an outstanding 107 dB sensitivity at 1W/1m, ensuring powerful, high-SPL output with minimal amplifier power for maximum efficiency in large systems.
- High-Power Handling Capability: Built with a 1.5” high-temperature voice coil and robust motor structure, supporting up to 240W RMS and 480W peak power for demanding high-output applications.
- Wideband High-Frequency Extension: Covers a frequency response range of 3,500 Hz to 20,000 Hz, providing crisp, extended treble detail and seamless integration in multi-way audio setups.

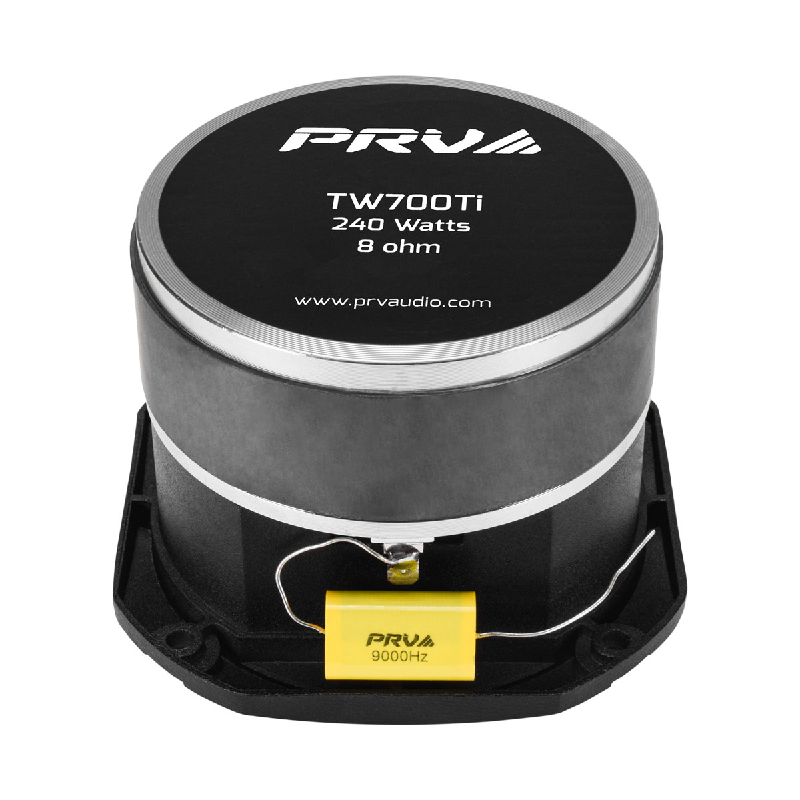

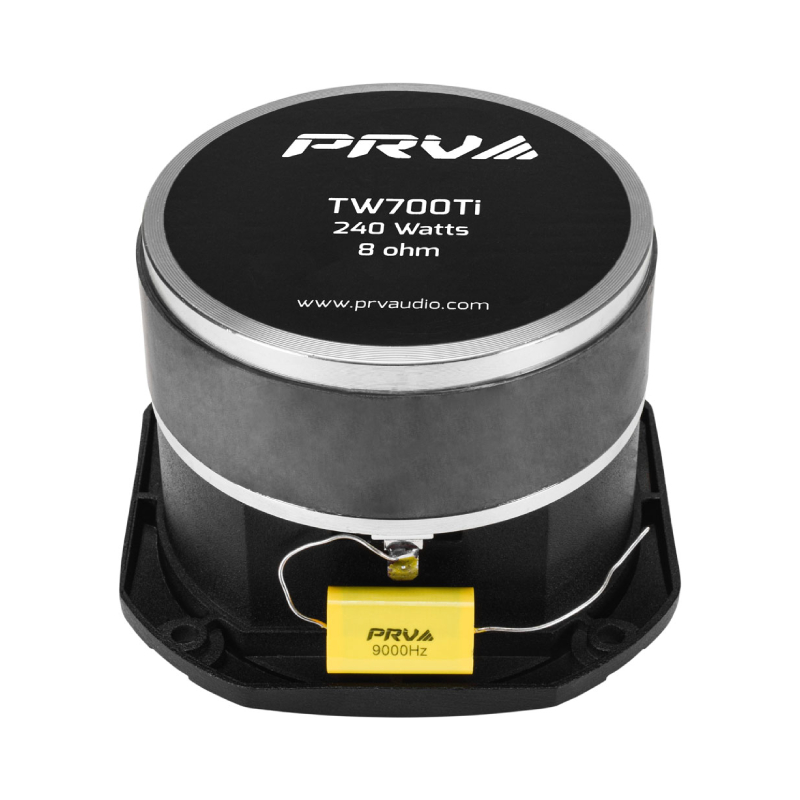

- Integrated Protection Crossover System: Features a built-in capacitor that functions as a high-pass filter, reducing low-frequency stress and ensuring clean, distortion-free high-frequency performance.
- Heavy-Duty Ferrite Motor Assembly: Utilizes a large ferrite magnet system to strengthen magnetic flux, improving efficiency, control, and overall sonic accuracy at high output levels.
- Flexible Installation Square Design: Includes a 4” square aluminum faceplate with flat-edge geometry for easy side-by-side mounting and efficient use of tight installation spaces.
- Professional-Grade Audio Durability: Designed with Kapton former and CCAW voice coil materials to maintain thermal stability and long-term reliability under continuous high-SPL operation.
Specifications:
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 120 W
- Continuous Program Power (RMS): 240 W
- Max Peak Power: 480 W
- Sensitivity (2.83V @ 1m): 107 dB
- Recommended High-Pass Crossover: 5,000 Hz (12 dB per octave) for full power handling
- Frequency Response (-10 dB): 3,500 – 20,000 Hz
- Voice Coil Diameter: 1.5” (38 mm)
- Voice Coil Wire Material: CCAW
- Voice Coil Former Material: Kapton
- Diaphragm Material: Titanium
- Flux Density: 1.60 T
- Magnet Material: Ferrite
- Overall Depth: 2.97” (75.54 mm)
- Mounting Depth: 2.55” (64.9 mm)
- Overall Width: 4.05” (103 mm)
- Overall Height: 4.05” (103 mm)
- Cutout Diameter: 3.58” (91 mm)
- Carton Dimensions (W × L × H): 4.5” × 4.5” × 3.25” (114 × 114 × 82.5 mm)
- UPC: 810075523553
- Weight: 4
