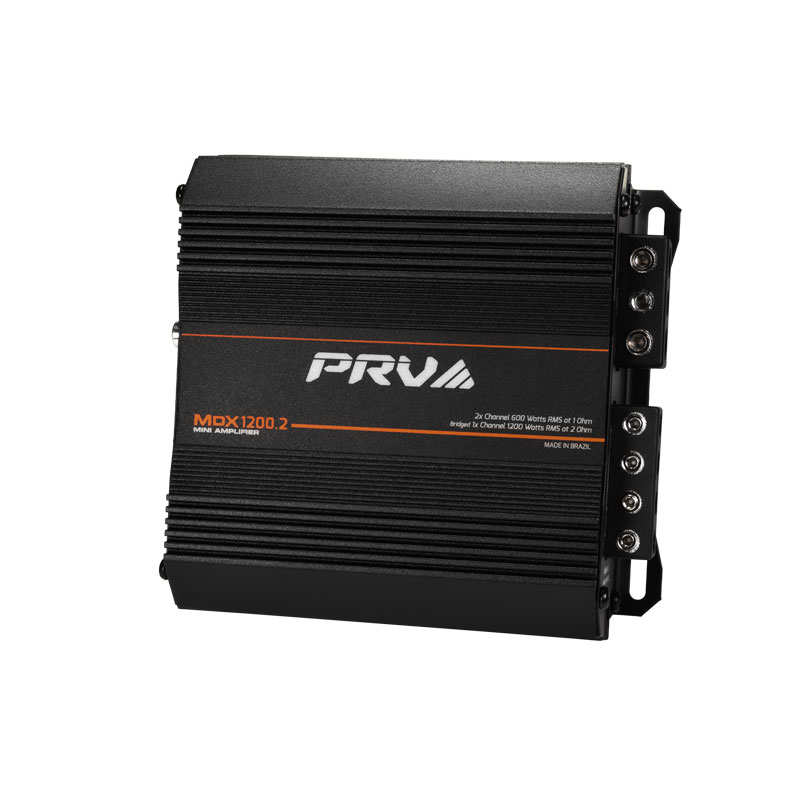

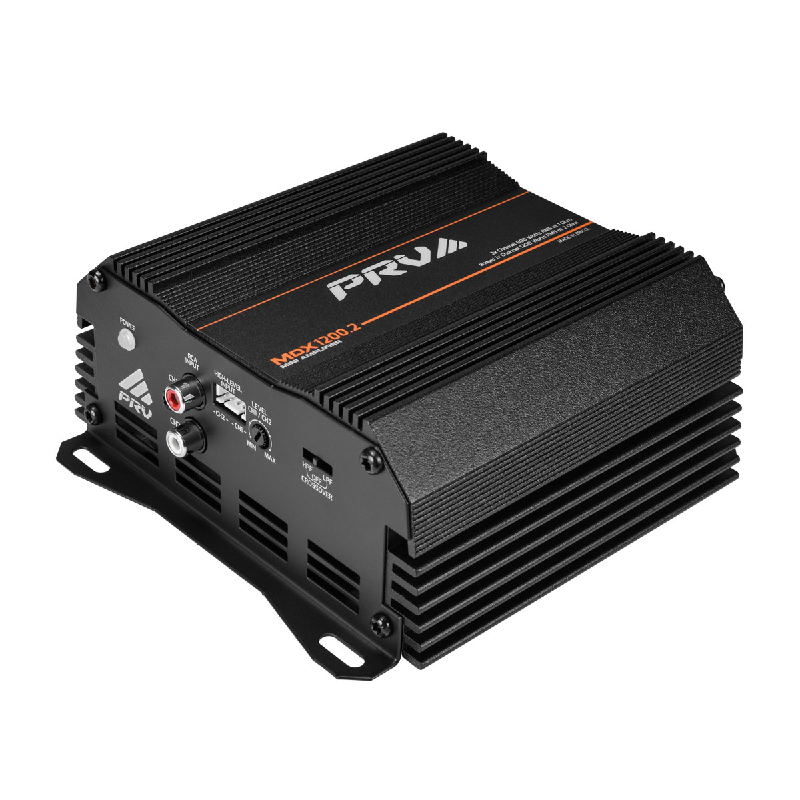

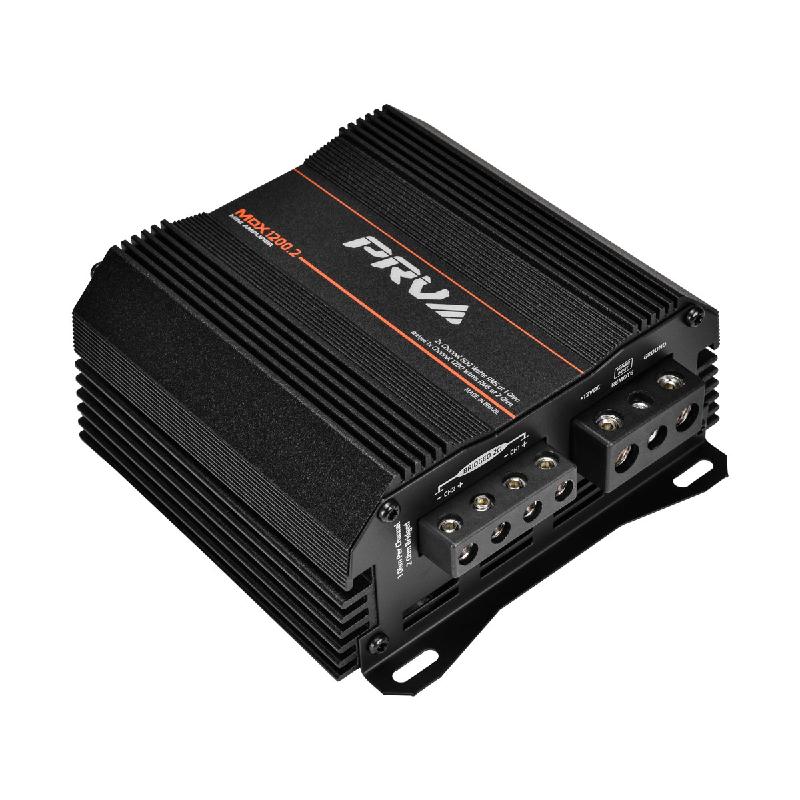

PRV Audio MDX1200.2 Series 2-Channel 2400W Max Power 1 Ohm, Class-D Full Range Car Amplifier-Made in Brazil
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2-Channel 2400W Max Power 1 Ohm, Class-D Full Range Car Amplifier-Made in Brazil
- • Owner's Manual

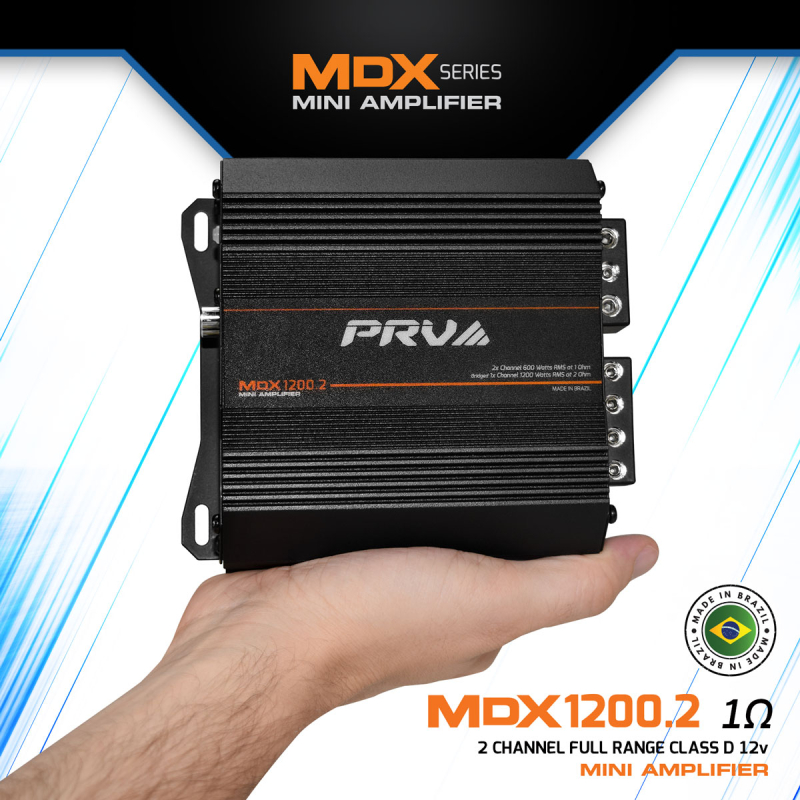

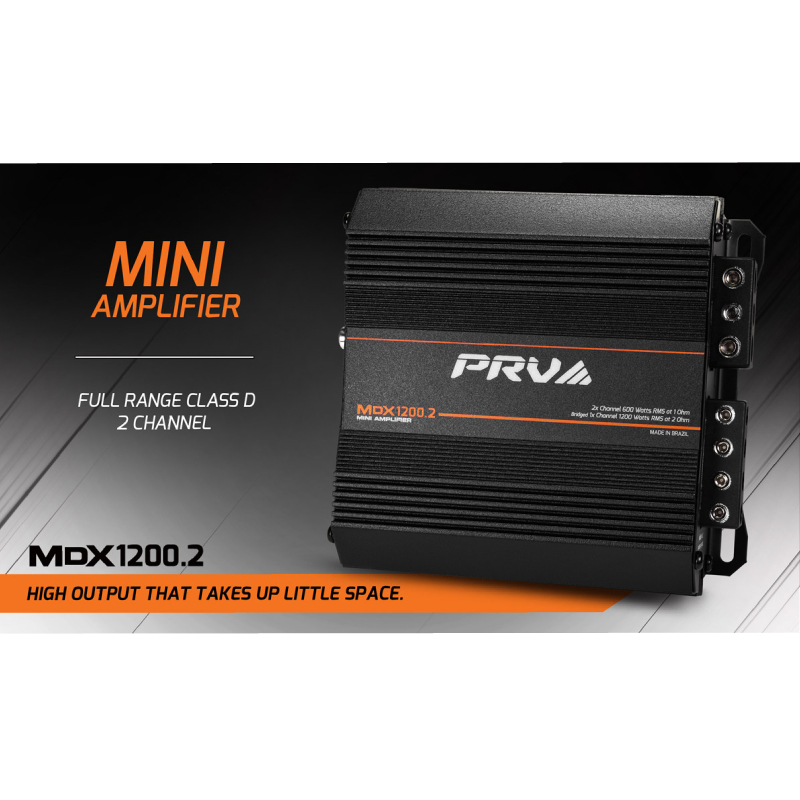

Big Power in a Small Frame That Hits Hard
If you are building a system where space is tight but sound has to be massive, the PRV Audio MDX1200.2 1 Ohm Class-D Full Range Amplifier is built for exactly that kind of challenge. It delivers a strong 1200W RMS total output with 2 x 600W at 1 ohm, giving you clean and controlled full-range performance across both channels. Whether you are running a daily driver or a competition setup, this amp brings serious output without the bulky footprint that usually comes with this level of power.
Smart Engineering Built for Real-World Installations
This MDX Series amplifier is all about efficiency and smart design. Its advanced digital Class-D Brazilian technology keeps the signal clean while reducing strain on your electrical system, so you get strong performance without unnecessary stress. The ultra-compact chassis, measuring just 6.50” x 5.90” x 2.60”, makes it easy to install in cars, motorcycles, and motorsport builds where every inch matters. Add in the lightweight 2.70 lbs design and you get a powerhouse that is easy to mount almost anywhere.
Flexible Control and Rock-Solid System Expansion
What makes this amplifier even better is how flexible it is in real setups. You can run it in stereo mode or bridge it for up to 1200W RMS at 2 ohms when you need extra punch for bigger speakers. It also supports multi-speaker wiring, letting you expand your system with multiple drivers while keeping everything balanced and clear. With high-level input for factory head units, thermal-optimized cooling with fan support, and rugged surface mount components for vibration resistance, this amp is built to stay clean, cool, and reliable no matter how hard you push it.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio MDX1200.2 1 Ohm keep entering protection mode?
Protection mode is commonly caused by incorrect speaker impedance, overheating, poor ground connections, or low battery voltage. Inspect the wiring and verify the electrical system is operating properly.
- • Can I bridge the MDX1200.2 1 Ohm for more power?
Always follow the amplifier's recommended wiring configuration before bridging. Using an incorrect speaker load can reduce performance or activate the amplifier's protection circuitry.
- • Why is only one channel of my amplifier working?
A single channel may stop working because of loose RCA cables, damaged speaker wiring, incorrect crossover settings, or a faulty speaker. Test each connection individually to locate the issue.
- • Why does my amplifier become hot during normal listening?
Some heat is expected, but excessive temperatures are often caused by restricted airflow, low impedance wiring, or gain settings that are too high.
- • Can the MDX1200.2 1 Ohm power subwoofers or midrange speakers?
Yes, it can be used for either application when the speakers are properly matched to the amplifier and the crossover settings are configured correctly.
- • Why do my speakers distort before reaching full volume?
Distortion usually occurs because of amplifier clipping, excessive gain, an overloaded speaker, or a distorted signal coming from the source unit.
- • Why do I hear engine noise through my speakers after installing the amplifier?
Engine noise is often caused by poor grounding, low quality RCA cables, or signal wires routed too close to power cables. Improving the installation typically resolves the issue.
- • What is the most common installation mistake with the MDX1200.2 1 Ohm?
A frequent mistake is wiring the speakers below the recommended impedance, which can cause overheating, protection mode, or reduced amplifier reliability.
- • Can I install the MDX1200.2 1 Ohm in a motorcycle, Jeep, or UTV?
Yes, many users install this amplifier in compact custom audio systems where space is limited. Be sure to mount it securely and provide adequate airflow.
- • How can I get the best sound quality from the MDX1200.2 1 Ohm?
Use quality power and signal cables, match the speakers to the proper impedance, adjust the gain and crossover carefully, maintain stable battery voltage, and provide good ventilation for dependable, clean audio performance.
- Maximum Power : 2400 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 20000 Hz
- Number of Channels : 2
- Frequency Response : 10-20000 Hz
- RMS Power Output : 1200 Watts
- Amplifier Class : D
- Fuse Rating : 60 A

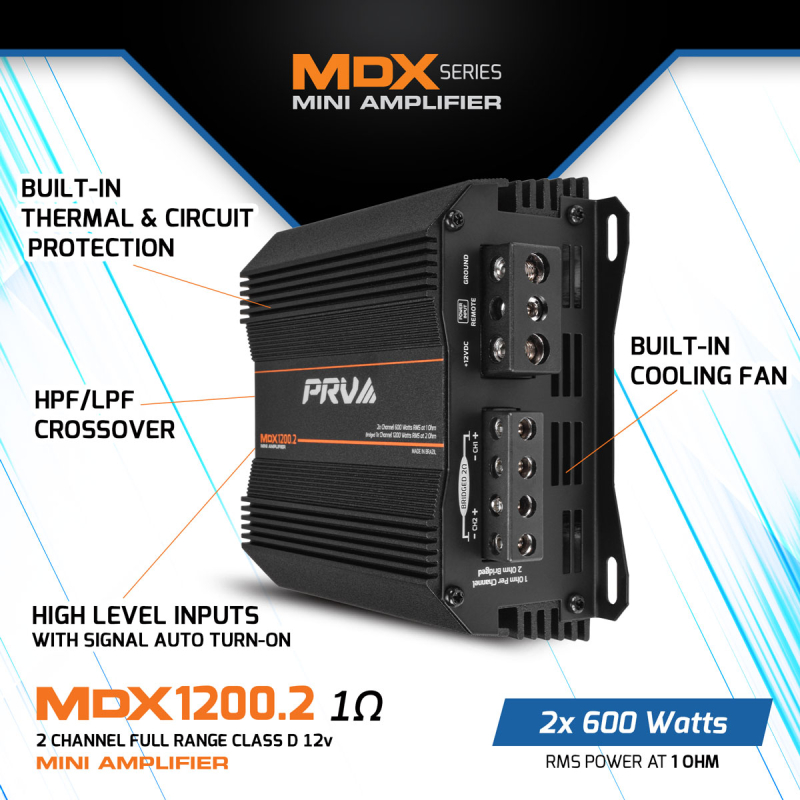

Features:
- Compact High-Output Stereo Power Unit: Engineered for space-limited builds, delivering 1200W RMS total output with 2 x 600W at 1 Ohm for precise full-range performance across dual channels.
- Advanced MDX Series Efficiency Architecture: Designed for high-performance audio systems, combining output strength with reduced electrical strain for stable daily and competition use.
- Digital Class-D Brazilian Technology: Utilizes modern high-efficiency amplification technology to ensure clean signal reproduction and consistent power delivery across all frequencies.

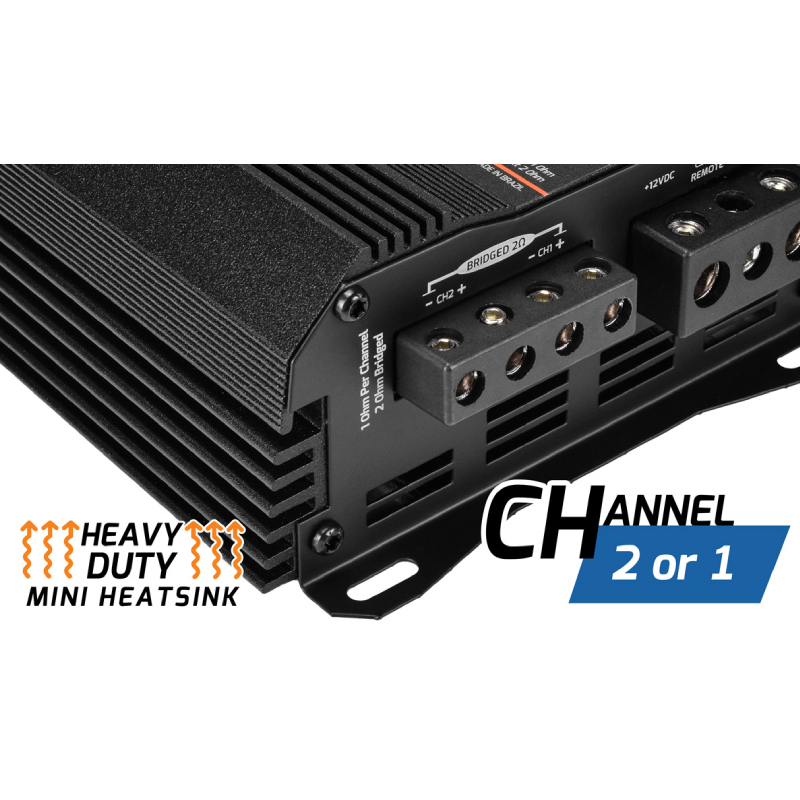

- Ultra-Compact Heavy-Duty Chassis Design: Built with a reinforced mini heatsink structure measuring 6.50” x 5.90” x 2.60”, allowing flexible installation in tight vehicle, motorcycle, and motorsport spaces.

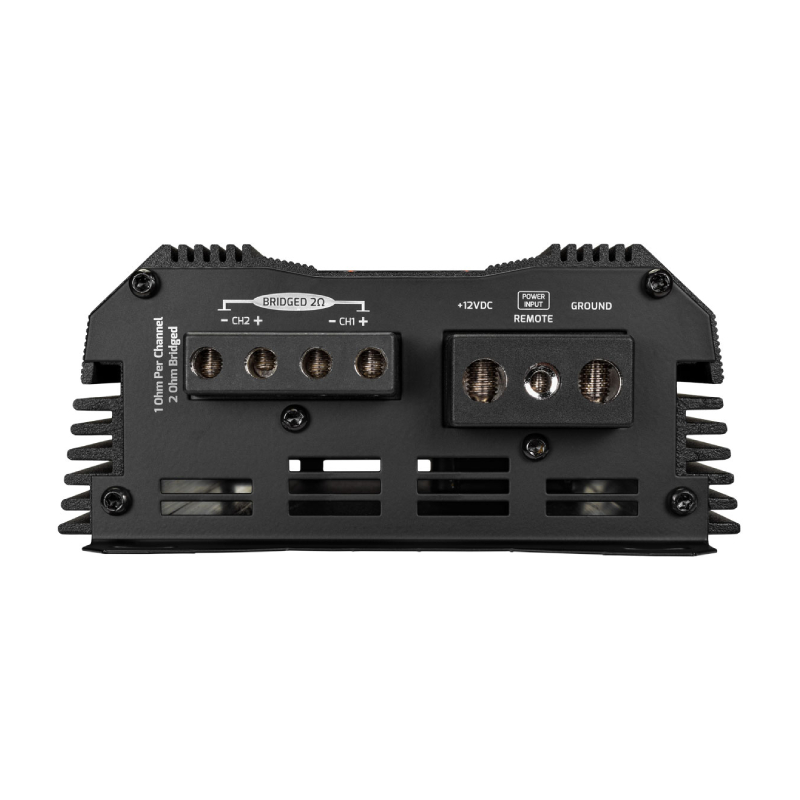

- Flexible 2-Channel and Bridged Operation: Supports stereo configuration or bridged mono output, delivering up to 1200W RMS at 2 Ohm for high-demand speaker setups.
- Multi-Speaker Wiring Capability: Enables parallel wiring configurations, supporting multiple drivers per channel for scalable system expansion and balanced output distribution.
- High-Efficiency 1 Ohm Channel Operation: Allows advanced system designs such as multiple tweeter or driver arrays while maintaining controlled power delivery.
- Advanced Surface Mount Component Technology: Enhances vibration resistance and signal stability, ensuring long-term durability in mobile and high-impact environments.

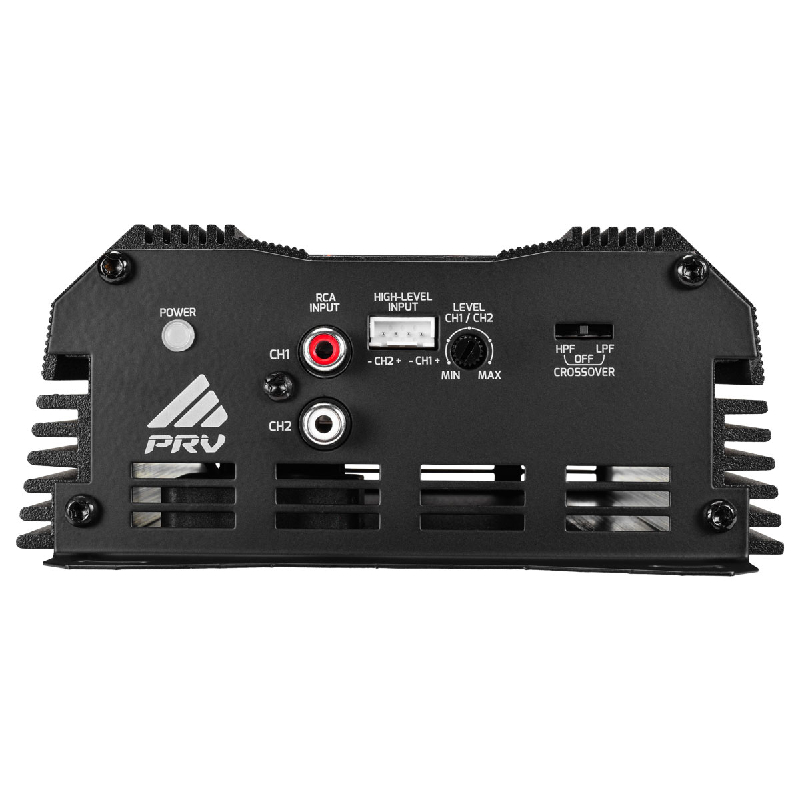

- Integrated High-Level Input Compatibility: Built-in speaker-level input allows seamless integration with factory head units without requiring external converters.

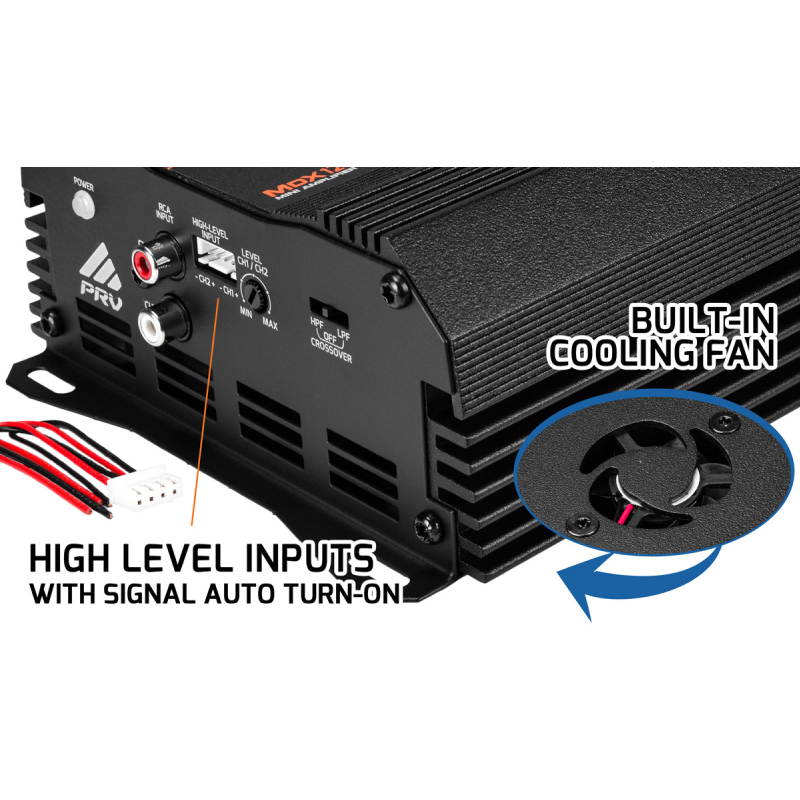

- Thermal-Optimized Cooling System: Equipped with a compact heatsink and integrated cooling fan to maintain stable operating temperatures under continuous high-output use.
- Lightweight High-Power Construction: Weighing only 2.70 lbs, it offers an excellent power-to-weight ratio for performance-focused custom installations.
- Versatile Motorsports Application Ready: Ideal for motorcycles, ATVs, and compact vehicles requiring efficient multi-channel amplification in limited space configurations.
- Precision Sound Distribution Control: Supports balanced power allocation across multiple speaker types, ensuring clarity and consistency in full-range audio setups.
Specifications:
- Impedance: 1 Ohm per Channel
- Channels: 2 Channel
- Rated RMS Power at 14.0 V at 1 Ohm: 2x 600 Watts RMS
- Rated RMS Power at 14.0 V at 2 Ohm: 2x 380 Watts RMS
- Bridged Rated RMS Power at 14.0 V at 2 Ohm: 1x 1200 Watts RMS
- Average Efficiency: 85%
- Operating Voltage: 9 to 16 Volts
- Musical Current Draw: 57 A
- Minimal Power Wire Input: (OFC) 4 Gauge wires
- Built-in Crossover: Fixed HPF & LPF at 80 Hz
- Minimal Speaker Wire Output: 12 Gauge
- Frequency Response(-3dB): 10 – 20,000 Hz
- Min. Input Sensitivity for Max. Output: 0.2 to 4v
- Signal Input: RCA Cables
- Signal to Noise: >90 dB
- Protection System: High Temperature / Short circuit on Output
- Heat Sink Type: Mini Heavy Duty Cast Aluminum
- Dimensions (Width x Depth x Height): 6.50″ x 5.90″ x 2.60″
- UPC: 810075524192
- Weight: 2.7
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
