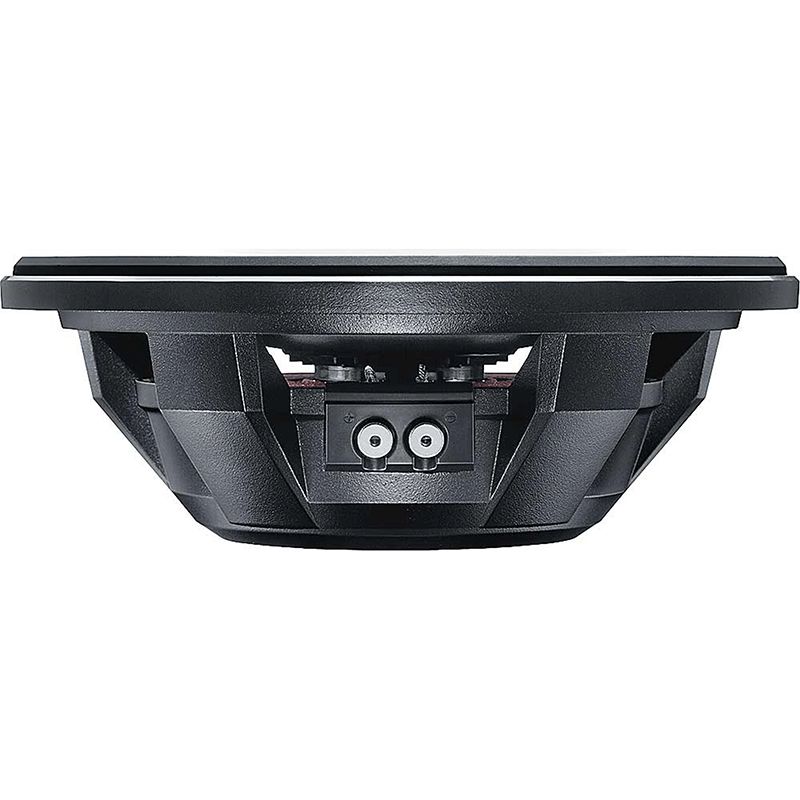

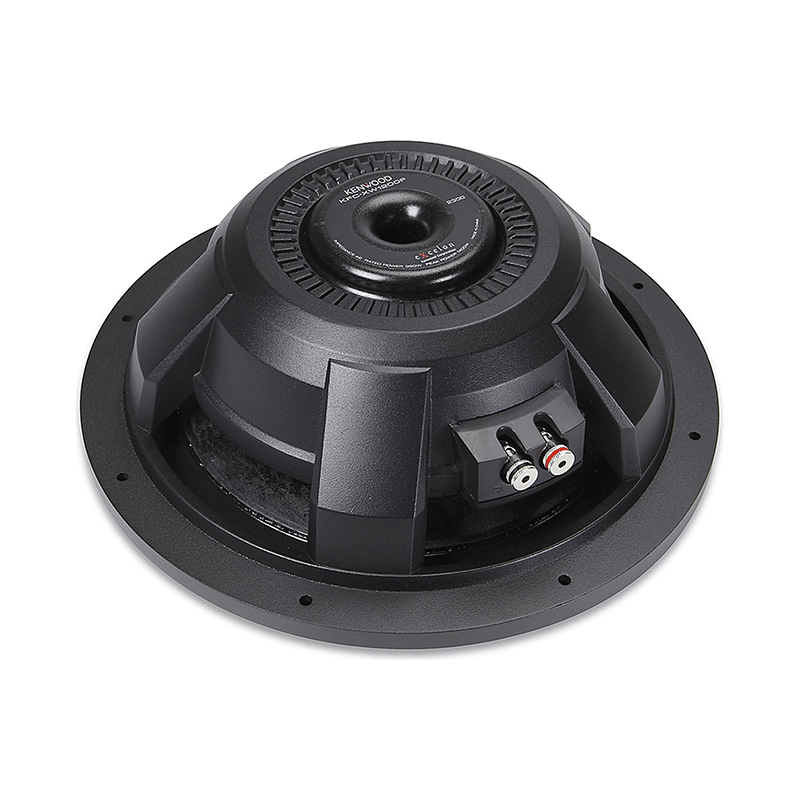

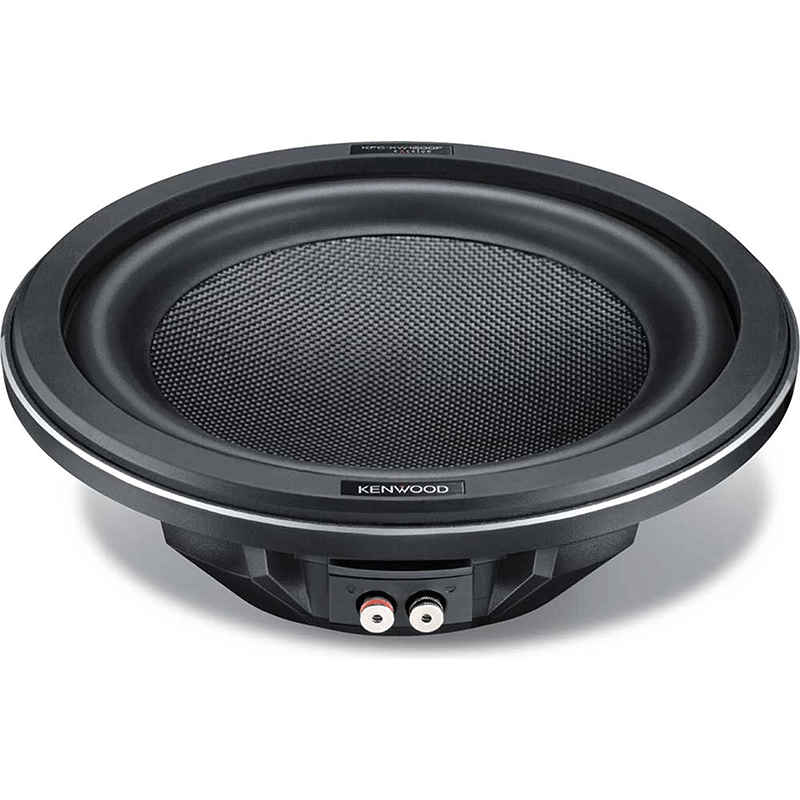

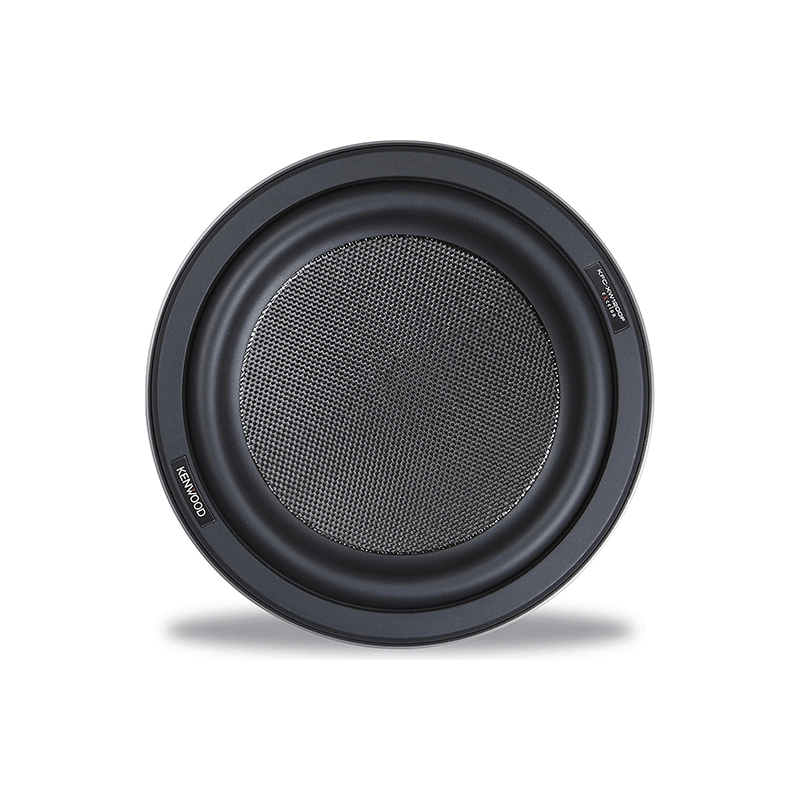

Kenwood Excelon KFC-XW1200F Slim Shallow-Mount Subwoofer
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •One 12" SVC Woofer
- •Rubber concealing ring (installed)
- •Self-adhesive foam strip
- •8 Mounting screws
- •"Kenwood" logo sticker for woofer
- •"eXcelon logo sticker for woofer
- •Cardboard template
- •Warranty Card
- •Owner's Manual
Produces Serious Bass Output
The Kenwood Excelon KFC-XW1200F 12" "flat" subwoofer produces serious bass output in the hard-to-fit areas of your compact car or truck. And this shallow-mount sub measures less than 4" deep, so you can get creative with your installation.
The carbon-glass fiber cone employs a honeycomb pattern to deliver quick response in demanding conditions without flexing. The beefed-up rubber surround maintains control over the cone, minimizing distortion caused by resonance. A die-cast aluminum basket offers a rock-solid housing with plenty of venting to keep the heat down. The silver-plated push terminals offer convenient connections and provide excellent signal transfer.
- Diameter : 12 Inch
- Sensitivity : 91 dB
- Impedance : 4 Ohm
- Frequency Response : 30-700 Hz
- Peak Power Handling : 1400 Watts
- Top Mount Depth : 3-15/16 Inches
- Shallow Mount : Yes
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : .8 Cubic ft.
- Suggested Ported Box Volume : .8 Cubic ft.
- RMS Power Handling : 350 Watts
Specifications:
- Ideal Ported Box Volume (cubic feet): 0.8
- Fs (Hz): 24.8
- Peak Power Handling (Watts): 1400
- Vas (liters): 62.69
- Qts: 0.544
- Xmax (millimeters): 8.5
- Dual Voice Coil: No
- Cone Material: Carbon-glass fiber
- Frequency Response: 30 - 700 Hz
- Port length (inches): 14
- Surround Material: Butyl rubber
- Top Mount Depth (inches): 3 15/16
- Sensitivity: 91 dB at 1 watt
- Free-Air: No
- Size: 12 -inch
- Impedance: 4 ohms
- Ideal Sealed Box Volume (cubic feet): 0.8
- Port diameter (inches): 3
- RMS Power Range (Watts): 50-350
- Bottom Mount Depth (inches): 4 7/16
- Cutout Diameter or Length (inches): 11 1/8
- UPC: 019048171450
- Weight: 19.01
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
Do you own this product?
Write a review!
-
I've gone though two pairs of these allready. I have a custom box in my Nissan Frontier, the pair are pushed by an Alpine PDX 1.600, talking to the local car audio guy i guess my first set I seperated the voice coils on them, replaced though warrantee, and now my 2nd set just craped out, Im looking for another pair of shallow's now.
Thats the bad...the good...these did actauly suprise me sound wise, they sounded verry good for being shallow mounts, but as time went on i noticed the quality decrease, and then they craped out on me. So if you dont plan to push them hard, they are good subs, but i guess i just pushed them too hard
-
I also have one of these in a custom 0.8 cu/ft ported box in my nissan fronier crew cab. I am using the sub channel on an alpine pdx-5 to power it (300 rms) and i also separated the voice coil on it. Like dustin said, its got a good sound, till it seperates. I definitely do not recommend a ported box with this as it does not sound clean at all, if that is what you are looking for. The sub also will not hit the super lows (below 30 Hz), while a lot of songs will have bass notes that hit around 20 Hz. I would go with something else if I did not buy this already, like a JL 12TW5, or JL 13TW5 or a Pioneer shallow...
-
Just what I was looking for in a flat sub. Price was right so I purchased 3 to match up with Kenwoods 2400 watt amp.
