Heavy duty aluminum alloy heat-sink for extreme heat dissipation
600W Max Power
2 or Mono channel operation
TVC(Total Volume Control) increases signal-to-noise ratio
Soft start turn-on
CEA-2006 compliant amplifier
125W RMS x 2 @ 4 Ohms
Frequency response: 10-30000 Hz
150W RMS x 2 @ 2 Ohms
300W RMS x 1 [Bridged] @ 4 Ohms
Oxygen-Free Copper Wire Coil for Output
3-way protection circuitry (thermal, overload, and speaker short protection)
Nickel-plated screw terminals
Dimensions: 10"W x 4-1/8"D x 2"H
Maximum Power : 600 Watts
Low Frequency Response : 10 Hz
High Frequency Response : 8000 Hz
Number of Channels : 2
Frequency Response : 10-30000 Hz
Built In Crossovers : Yes
Channel Separation : Yes
RMS Power Range : 150 Watts
Amplifier Class : F/D

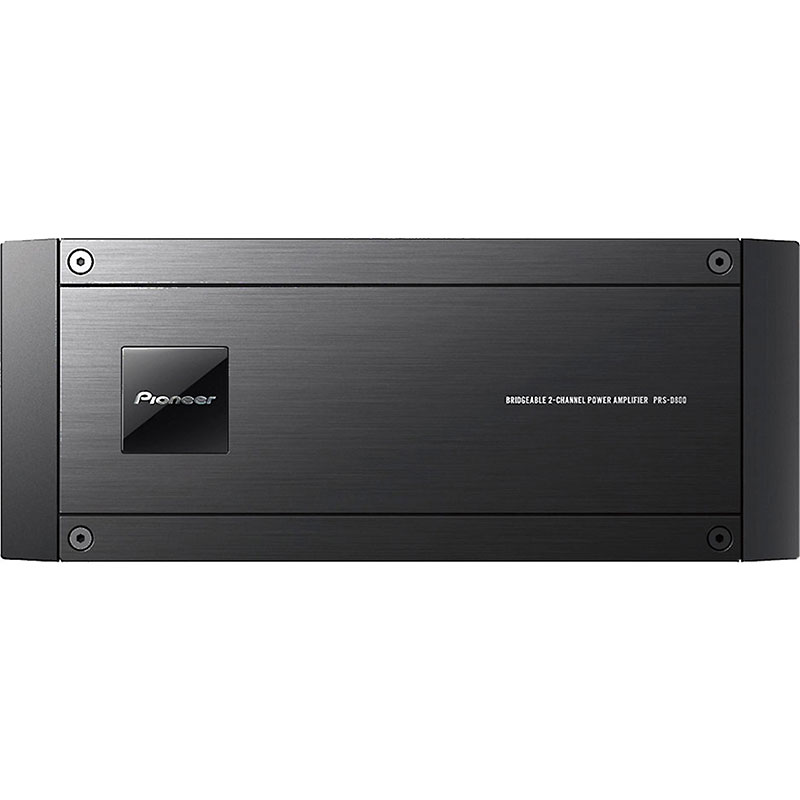

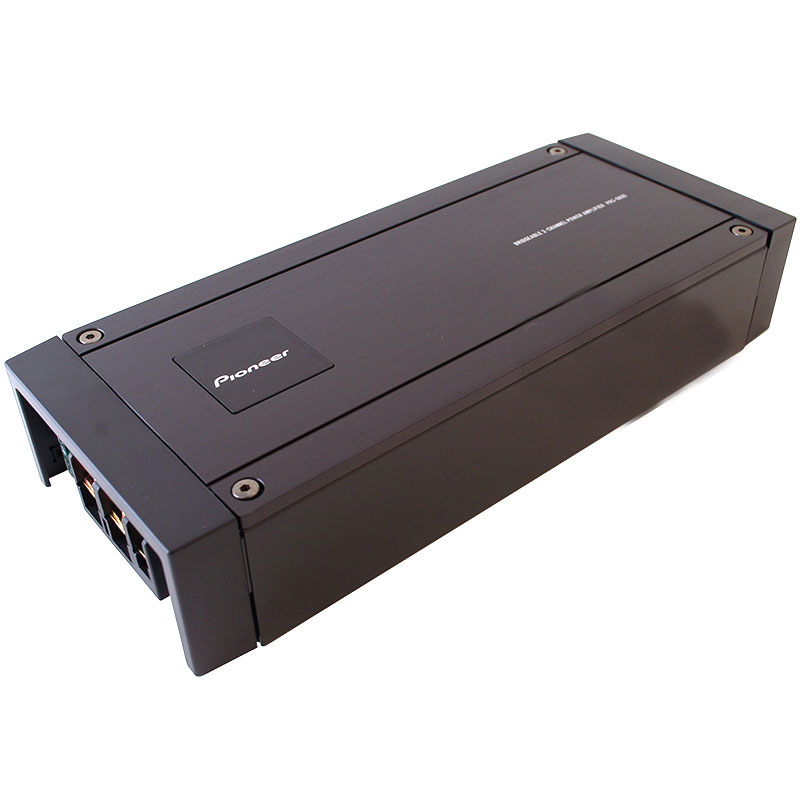

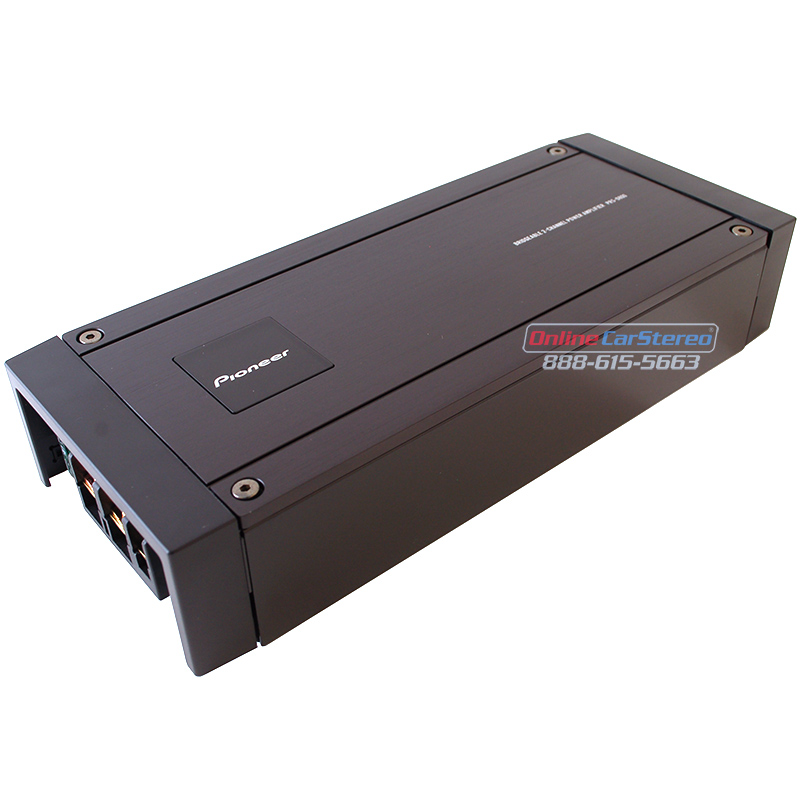

The PRS-D800 2-channel amplifier offers 125 watts RMS of crystal-clear power per channel, for driving high-quality speakers and components. 1-channel mode, and this amp will send 300 watts RMS of clean bass power to your sub. This full-range amplifier doesn't include any frequency filters or bass boosts that'll sidetrack the sound from its direct path to your speakers. Also, offers the superior performance of Pioneer's full-range digital amplifier technology. With cool-running operation of Class D design — all in a chassis that's only 10" long and a little over 4" wide.
Specifications
Depth (inches): 4-1/8
RMS Power Output (Watts x Channels): 125 x 2
Bridged Power (Watts x Channels): 300 x 1
Fuse Rating: 30
High-Pass Crossover Frequency: N/A
Width (inches): 10-1/16
Best Frequency Response: 10-30k Hz
Minimum Impedance Bridged: 4
Bass Boost: No
Speaker Level Inputs: No
Fan Cooled: No
Bass Boost Frequency: N/A
Low-Pass Crossover Frequency: N/A
Minimum Impedance Unbridged: 2
Signal to Noise Ratio: 105 dB
Peak Power Output (Watts x Channels): 250 x 2
Power at 2 Ohms (Watts x Channels): 150 x 2
THD at Rated RMS Power: 1%
Input Voltage: 14.4v
Amplifier Class: FD
Low-Pass Slope (dB/octave): N/A
High-Pass Slope (dB/octave): N/A
Preamp Outputs: No
Height (inches): 2
UPC: 884938153133
Weight: 27
Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties. What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
Superb compact amp. Easy to fit in any build you are working on. Sounds great and has plenty of power for its size.
