- Maximum Power : 1200 Watts
- Low Frequency Response : 40-400 Hz
- High Frequency Response : 40-400 Hz
- Number of Channels : 4
- Frequency Response : 10-35000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 150x4 Watts
- Amplifier Class : D
- Fuse Rating : 40 A
Features:

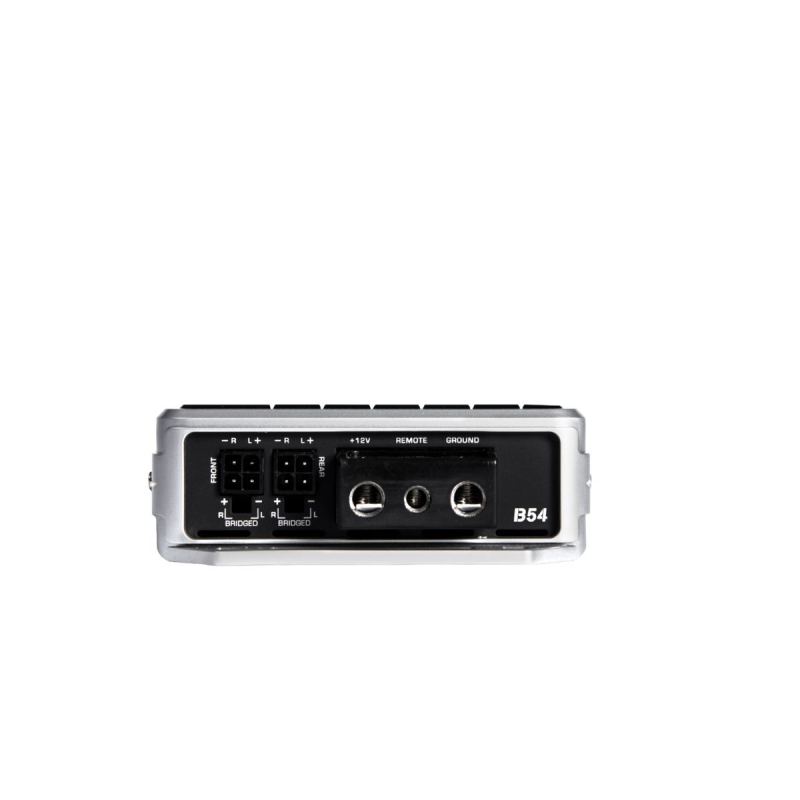

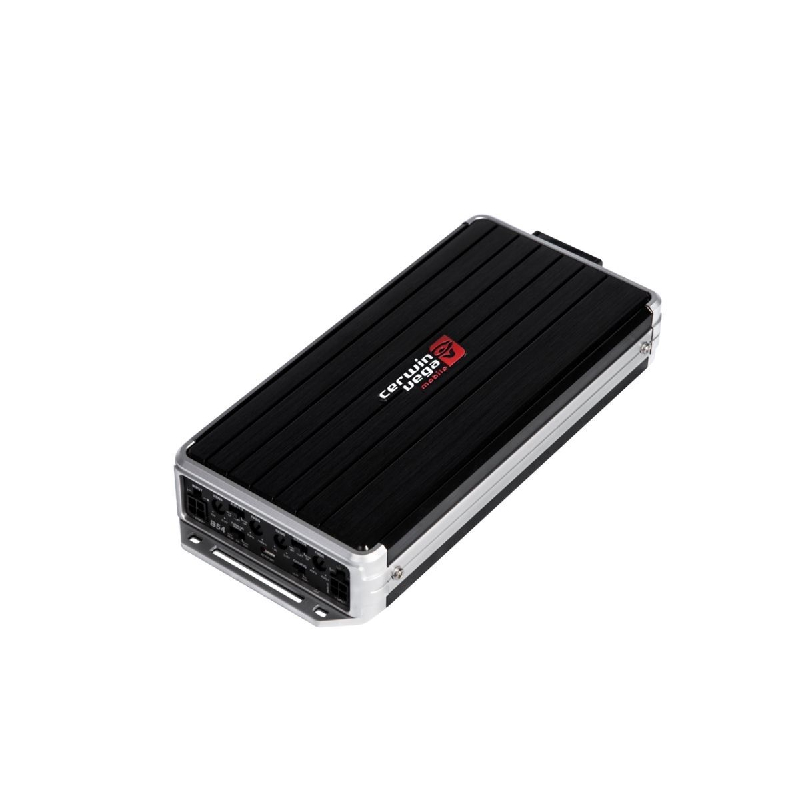

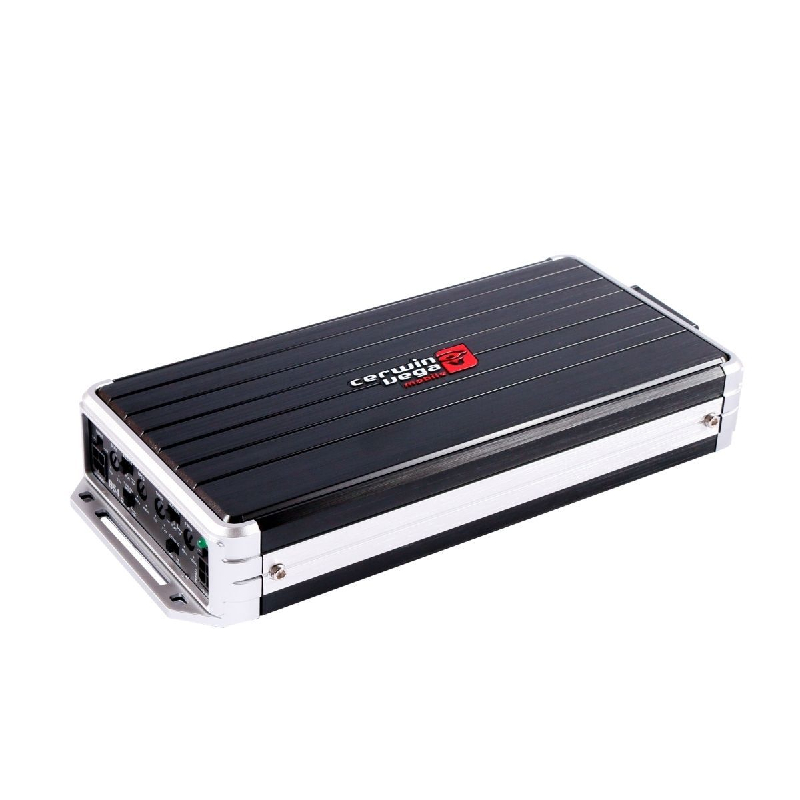

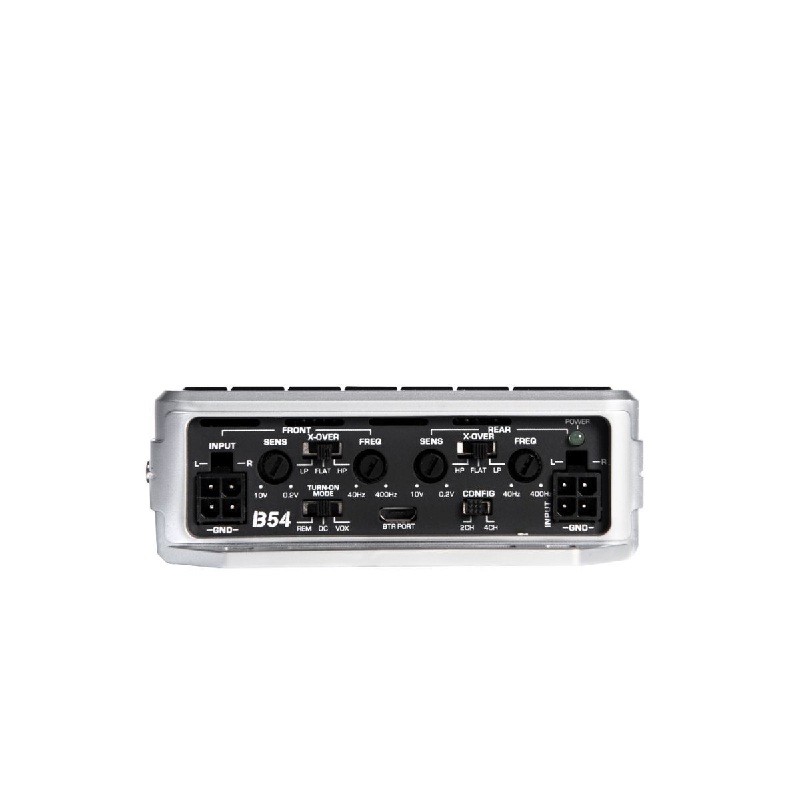

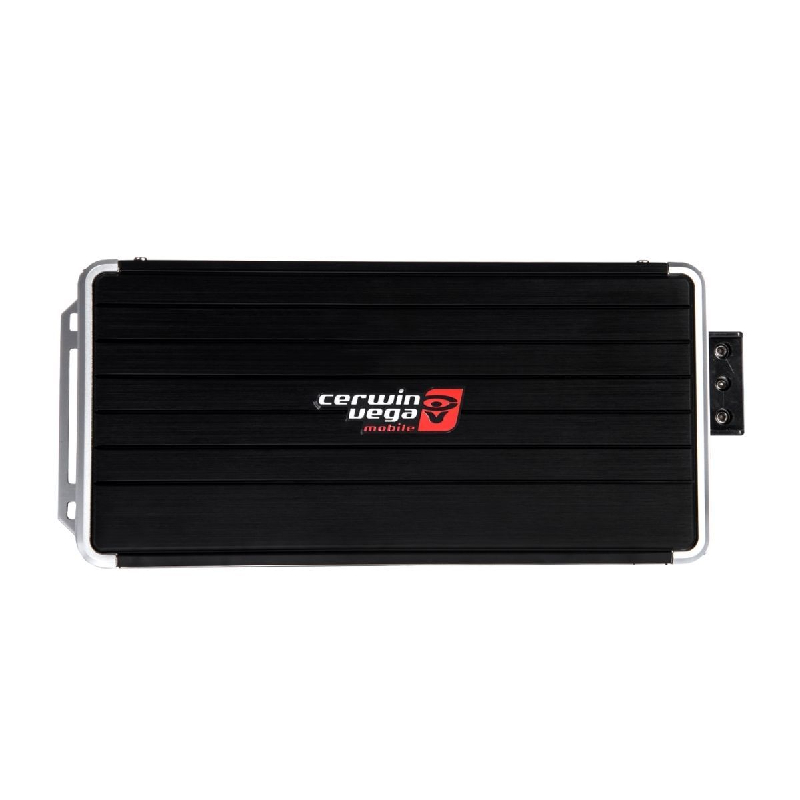

- 4-Channel Bomber Series Class D Amplifier
- Ultra-Compact High-Density Aluminum Alloy Chassis
- Advanced Rollback Power/Thermal Protection
- Class D IR Chipset with DirectFET Power Mosfet Output
- Switchable 12dB HP/FLAT/LP Crossovers and VEGA Bass Boost
- Remote Turn On Configurator – REM/DC/VOX
Specifications:
- 150W X 4 @ 2Ω RMS
- 80W X 4 @ 4Ω RMS Power
- 300W X 2 Bridged Stereo
- 1200W Max Power
- Types: Class D
- Power Supply: Full PWM
- Power Supply (Threshold): 10.0VDC-17.0VDC
- Idle Current: (0.7A)
- Distortion - THD: (1KHz@4Ω) 0.5%
- Distortion - S/N Ratio (A weight @ 1W): -85dBA
- Distortion - S/N Ratio (A weight @ FP): -101.1dBA
- Input Sensitivity - Hi/Low Input Level: 200mV-10.0V
- Input Impedance - Low Input Level: 20 kΩ
- Input Impedance - AUX Input Level: 20 kΩ
- Output Impedance: 0.018 Ω
- Damping Factor (50Hz@4Ω): >70
- Bandwidth (-3dB): 10Hz-35KHz
- Crossover (-12 dB/ Oct) Variable High-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
- FUSE Ratings - ATC: 40A
- Dimension - Length x Width x Height - Inches(mm): 8.8 x 4.0 x 1.4 (225.6 x 102 x 36)
- UPC: 0847169024252
- Weight: 10
