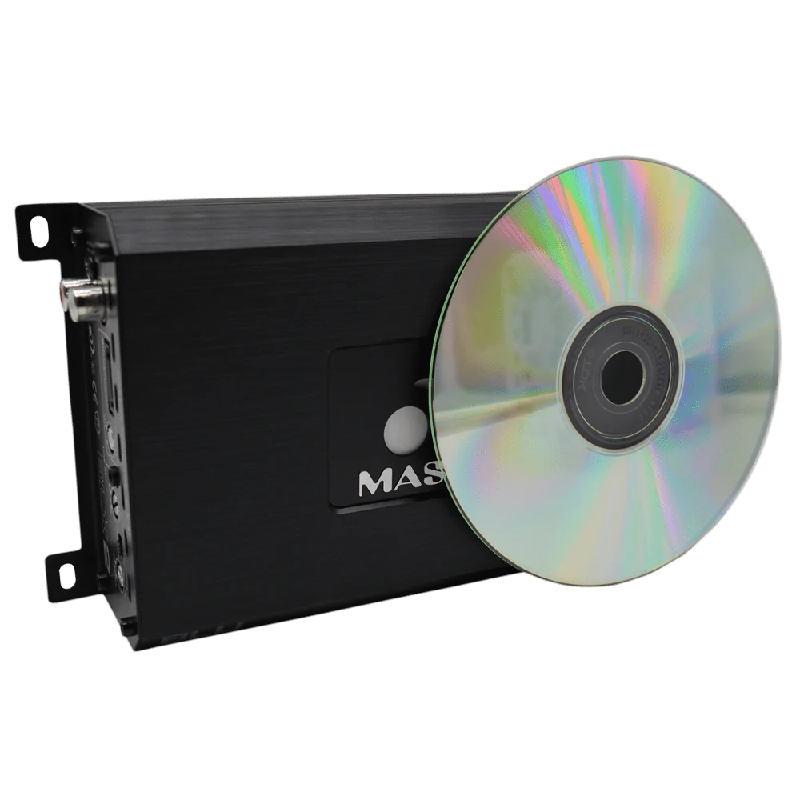

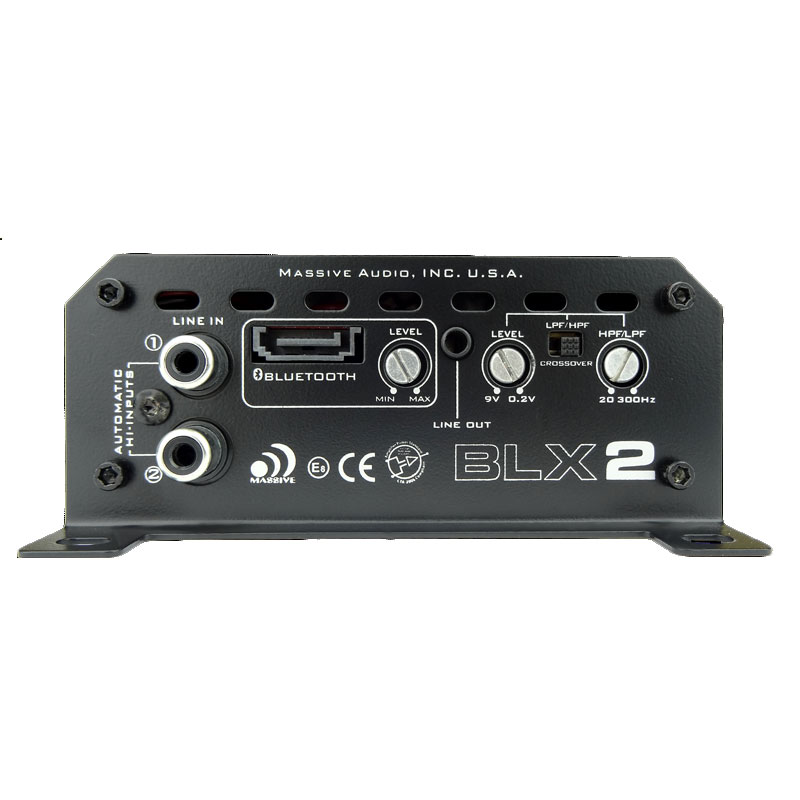

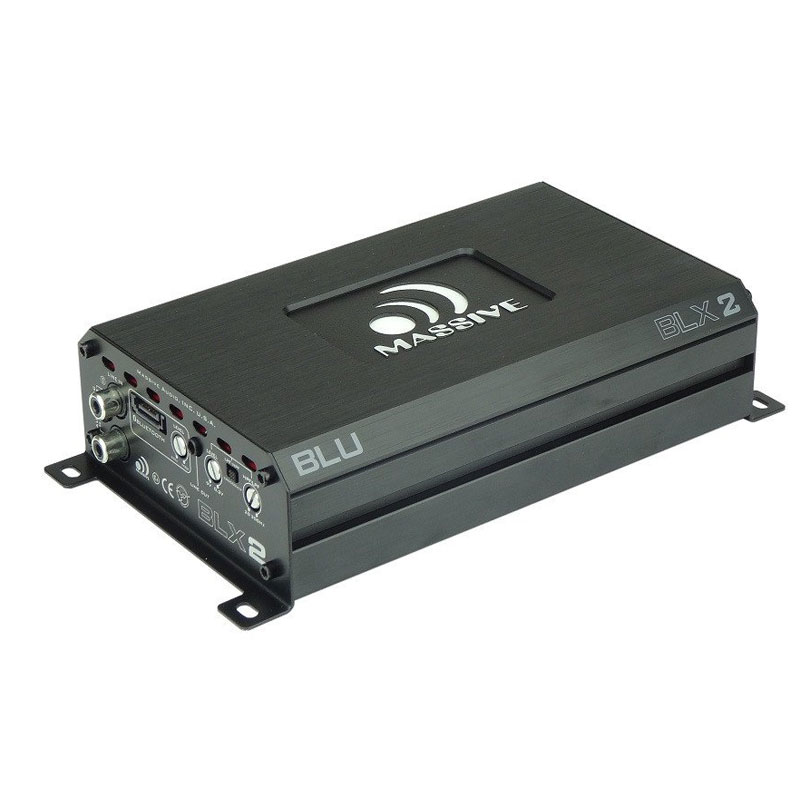

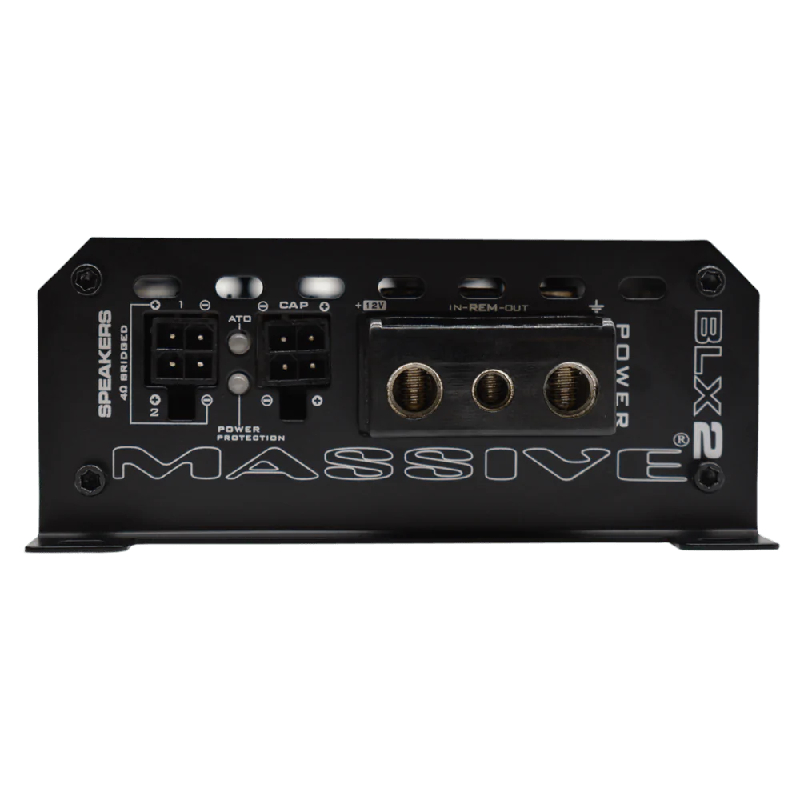

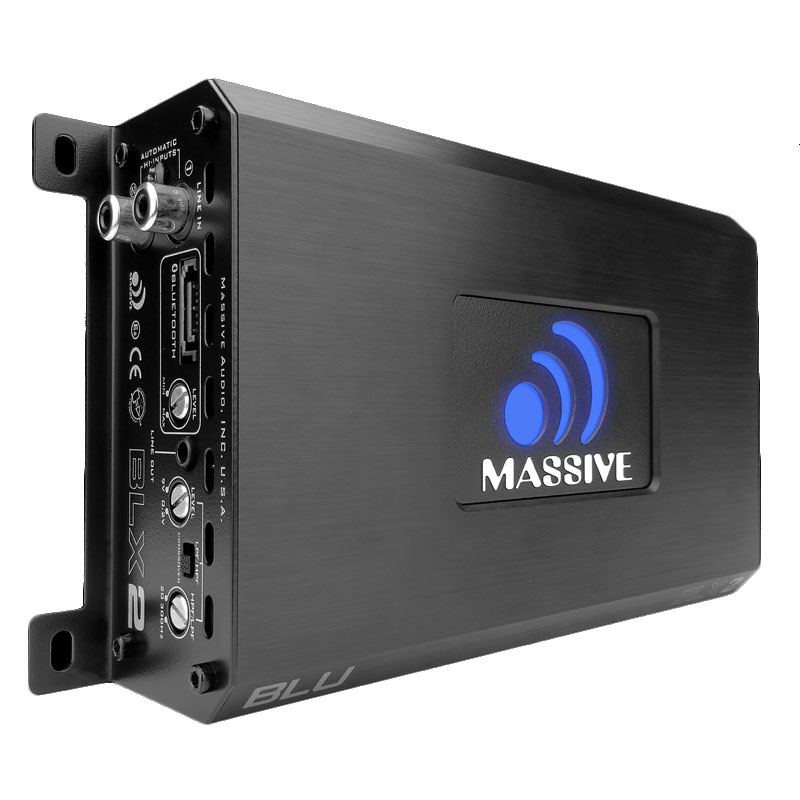

Massive Audio NANO "BLU" Series Amplifiers. The four CTA 2006 certified models include the BL1 Mono Block, BLX2 Two Channel, BLX4 Four Channel and the BLX5 Five Channel. NANO BLU amps are only 4.25” W X 1.6” H and range from 6.5" to 10.86" L. All models feature Digital Platforms, Built In OEM Line Converters, Up to 9V In, Line Out, Auto Turn (no turn on wire needed) with 12V out and support a USB which accommodates the optional UBT1 Bluetooth Dongle for audio streaming. All Nano "BLU" Amps use nickel plated RCA inputs and circuit boards are sprayed for water resistance and then everything gets shielded in a rust proof aluminum housing. Each model supports a "Docking Port" to plug in a optional custom matching Railcap Booster (RCLX).
- Maximum Power : 480 Watts
- Low Frequency Response : 20-300 Hz
- High Frequency Response : 20-300 Hz
- Number of Channels : 2
- Frequency Response : 10-25000 Hz
- RMS Power Output : 240x2 Watts
- Channel Separation : Yes
- Fuse Rating : 40 A
- Extreme Power in a Mini Compact Footprint
- Conformal Coated PC Board to Resist Moisture, Dust and Extreme Heat
- 1 Ohm Stable Design (BL1)
- 4 Layers PCB design with SMD parts
- Built-in Noise Reduction Circuitry
- Full MOSFET with High Grade Switching Devices

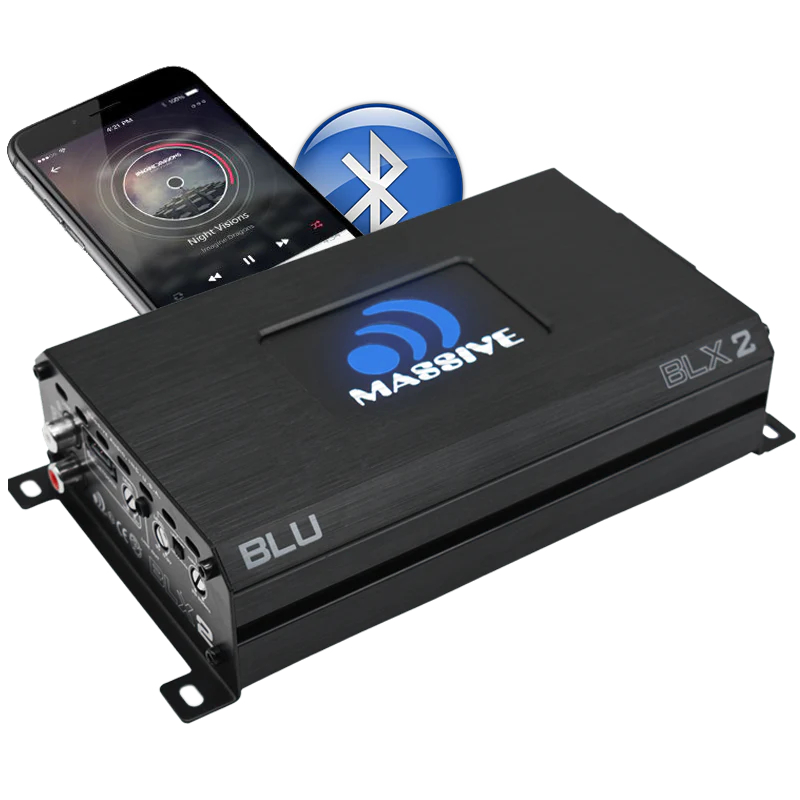

- Bluetooth Audio Streaming with optional UBT1 Dongle (BLX2, BLX4, BLX5)
- Built-in Auto Sensing Turn On Function (Hi-Inputs)
- 12V Remote Output for External Devices (Hi-Inputs)
- -3 ~ + 12DB Variable Bass Boost 40 Hz - 100 Hz (BL1)
- -6 ~ + 12DB Variable Bass Boost 40 Hz - 200 Hz (BLx5)
- Advanced 5 Way Protection Circuitry
- RCLX ~ Railcap Booster (Optional)
- World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
- Peak Output Power @ 14.4V: 480W x 1 Max
- 1 Ohm RMS: n/a
- 2 Ohm RMS: 240W x 2
- 4 Ohm RMS: 120W x 2
- 4 Ohm Bridged: 480W x 1
- Input Level: 0.2~9.0v
- Freq. Response: 10Hz~25KHz
- THD at 4 Ohm Load 30% Rated Power: <0.03%
- S/N Ratio: >85dB
- BassBoost: N/A
- Minimum Load: 2 Ohm Stereo
- Gain Remote: n/a
- Dimension: 1.6"H x 4.25"W x 6.50"L
- UPC: 623169631016
- Weight: 5.01
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
