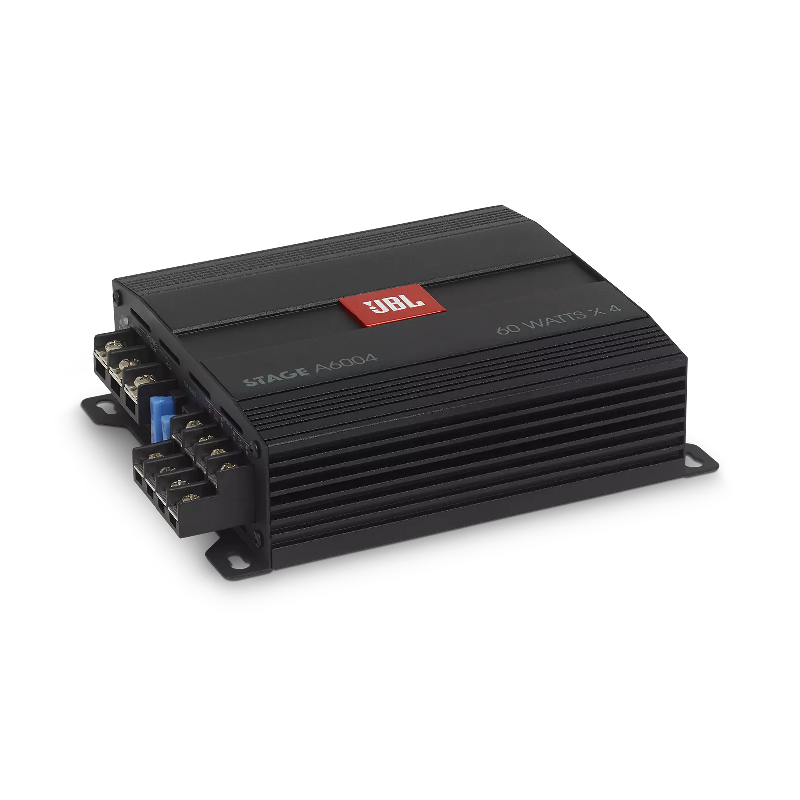

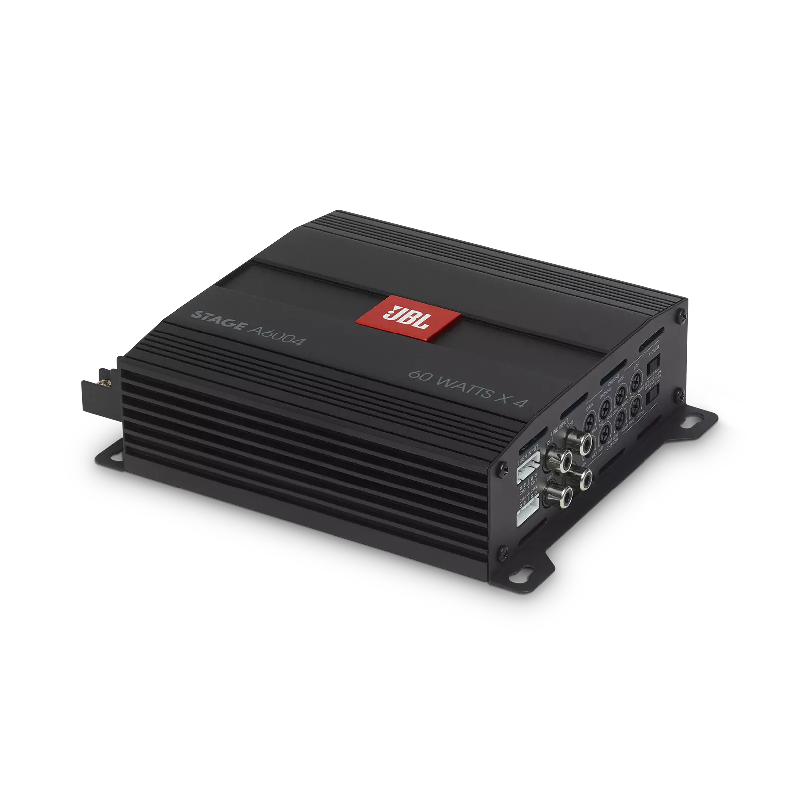

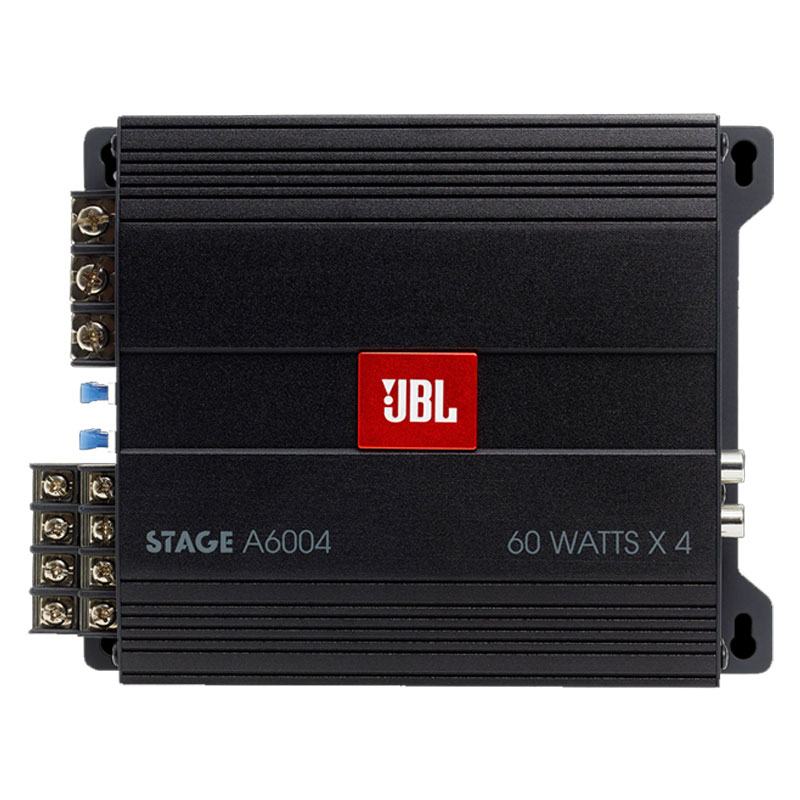

TStage amplifier provides true JBL performance at an affordable price while now lacking the features needed to properly tune and optimize performance.
With it becoming more and more difficult to find spacious locations for amplifier mounting, Stage has been developed in a small compact form factor to allow more location versatility.
Full On-Board Protection
Stage amplifier has on-board circuitry to protect them from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all four models to let you know when one of these conditions exists.
JBL is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world-class experience that lasts and lasts.

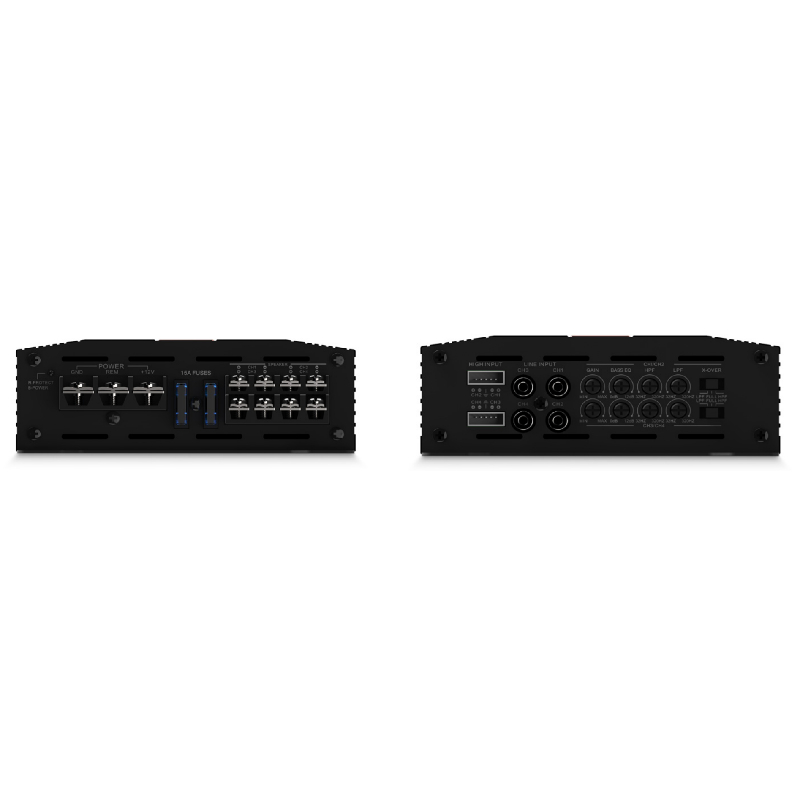

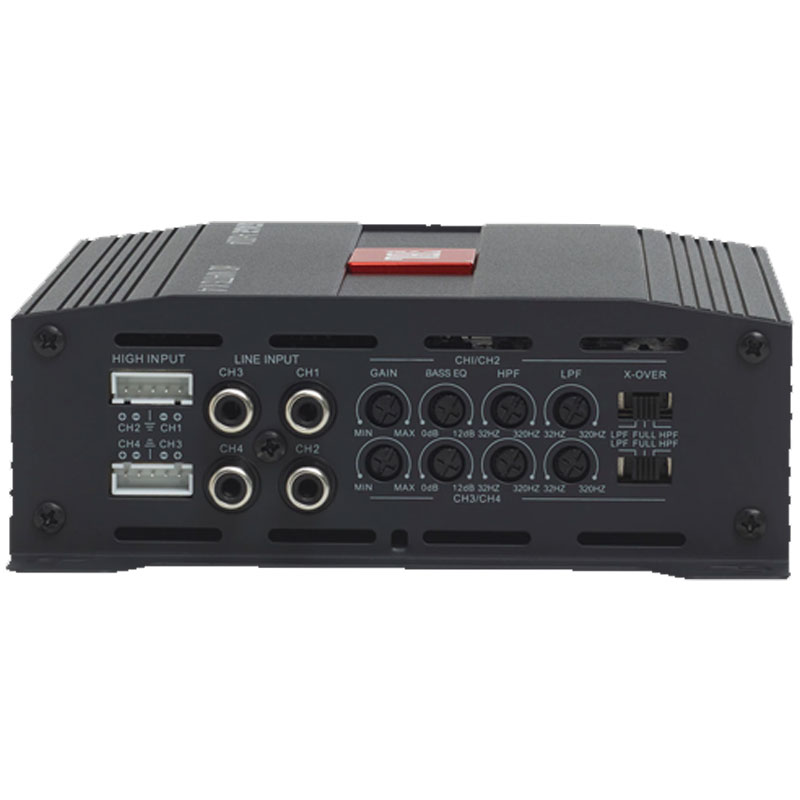

Input Level Control
When Low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 5.0Vrms. When High-level inputs are used, this control adjusts the input sensitivity between 0.5Vrms and 15Vrms.
Switchable bass EQ
This provides an available bass boost at 45Hz of 6dB or 12dB, serving as a great tool to optimize subwoofer and loudspeaker performance based on location and enclosure type.
Cool industrial design
Black with deep grooves, silver silkscreen, anodized JBL badge top-center with orange end panels and bottom.
Crossover mode switch
LPF crossover controls is switchable between 0dB to 12dB at 45Hz giving user ability to adjust sound to the environment and/or application.
Crossover control gives user additional fine tuning
Adjusts the crossover turnover frequency between 32Hz and 320Hz. (One knob for each stereo pair.)
Our Point of View
JBL believes that life is defined by what you experience. Music helps people have experiences that are more extraordinary, by fully immersing them in each moment. To help people have rich experiences, JBL creates full-on sound that draws people in and heightens the feeling. JBL is dedicated to delivering sound that elevates life.
Maximum Power : 560 Watts
Low Frequency Response : 32-320 Hz
High Frequency Response : 32-320 Hz
Number of Channels : 4
Frequency Response : 20-20000 Hz
Built In Crossovers : Yes
RMS Power Output : 70x4 Watts
Channel Separation : Yes
Amplifier Class : D

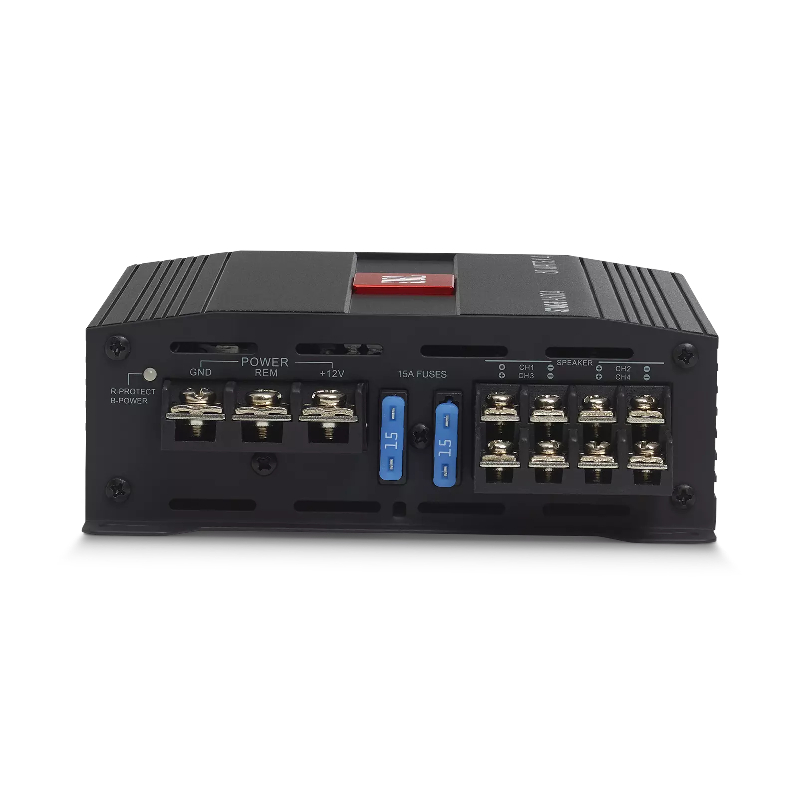

Fuse Rating : 15x2 A
1 x Amplifier
1 x Spare fuse (x2 for 1-channel and 4-channel model)
1 x High-level input cable (x2 for 4-channel model).
2 x Two-color JBL brand stickers
1 x Quick start guide
Operating voltage 9 – 16V
RMS power @ 4 ohms 60W
RMS power @ 2 ohms 70W
RMS bridged power @ 4 ohms 140W
Total peak power 560W
Frequency response 20Hz – 20kHz @ -1dB
THD + N at rated power (20Hz – 20kHz) <1%
Line-in signal-to-noise ratio (reference to 1 watt) >75dB
Maximum high input signal level 12V
High input maximum sensitivity 0.5V
Maximum line input signal level 5V
Line input maximum sensitivity 0.2V
Quiescent current draw <1.2A
Fuse size 2 x 15A
Dimensions (H x W x L) 50 x 145 x 193.6mm
