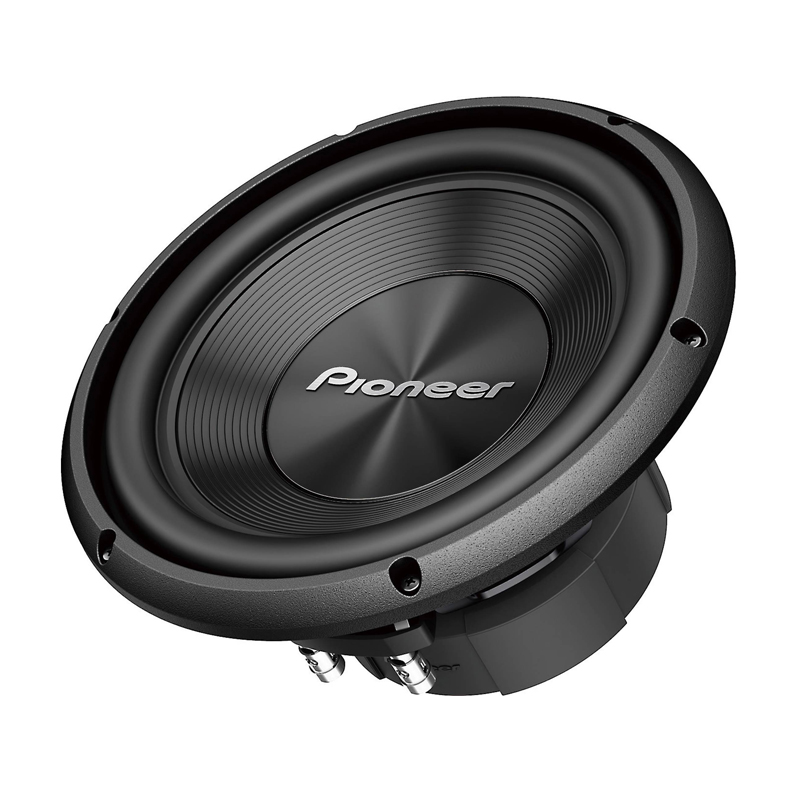

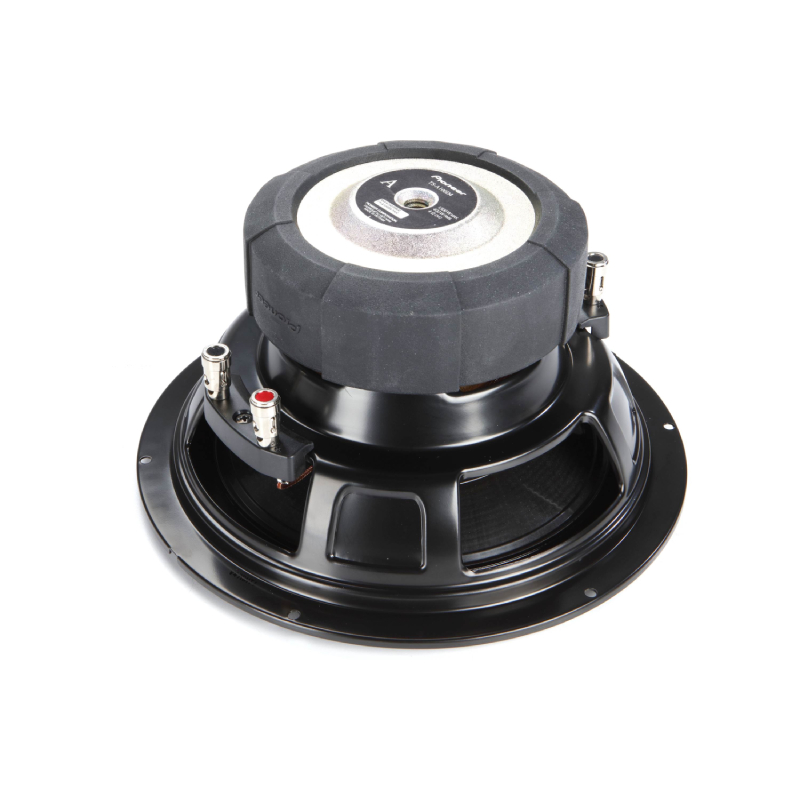

Pioneer TS-A100D4 10"400W Dual 4 Ohm Voice Coil Component Subwoofer
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
- •One 10" Subwoofer

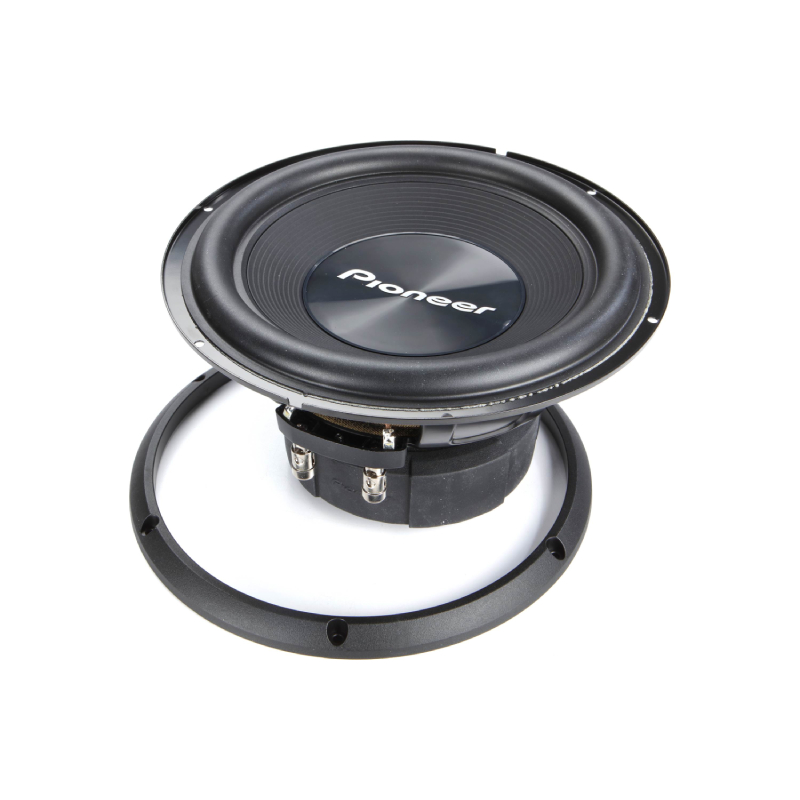

- •Trim ring
- •Six 1-1/8" Screws
- •Adhesive backed foam gasket
- •Owner's Manual
Easily Upgrade to High Performance
The Pioneer A Series speaker sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears. The A Series lineup expands flexibility and improves acoustic performance. The integrated inline crossover network allows for increased installation flexibility without the need of an outboard module. Included with the Pioneer A Series, are multi-fit installation adapters and tweeter mounts (when applicable).
Linear, Balanced Motion

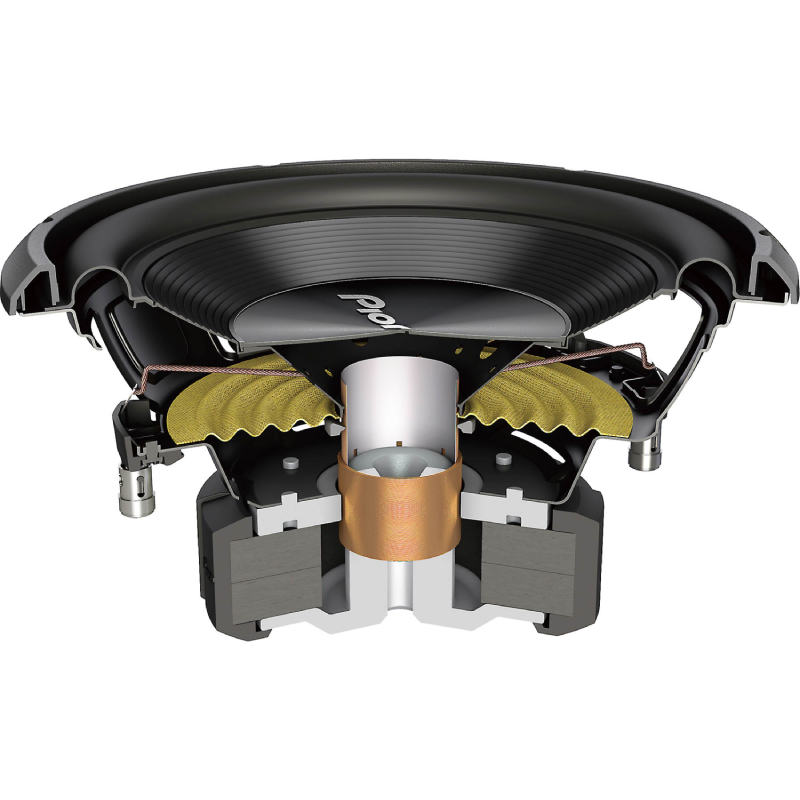

Linear, balanced motion in both the forward and reverse directions of cone movement is critical to accurate reproduction of recorded sound waves. Careful engineering of the entire motor structure and suspension system (voice coil, magnet, surround and spider) is required maintain a high level of linearity, even during high output / high excursion transients.
Pioneer’s CarSoundFit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
- Diameter : 10 Inch
- Sensitivity : 74 dB
- Impedance : 4 Ohm
- Frequency Response : 20 - 2000 Hz
- Peak Power Handling : 1300 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 5.25 Inches
- RMS Power Handling : 400 Watts
- System Type: Component subwoofer
- Sound Pressure Level (Sensitivity): 74 dB (+- 1.5dB)
- Frequency Range: 20 Hz to 2 kHz
- Continuous Power Handling (RMS): 400 Watts
- Maximum Peak Power Handling: 1300 Watts
- Nominal Impedance: 4 ohms Dual Voice Coil (DVC)
- Diameter: 10"
- Cone Material: Glass fiber and mica reinforced Injection Molded Polypropylene (IMPP)
- Surround Material: Butyl Rubber
- Basket Material: Stamped Steel
- Magnet Material: Double stacked ferrite
- Magnet Weight: 56 oz
- Mounting Depth: 5.25?
- UPC: 884938404600
- Weight: 11
