HCP 4 AB-CLASS FOUR CHANNEL AMPLIFIER
HCP 4 is a four channels car audio amplifier designed to reproduce any musical genres with four separate channels for multiple configurations. Pre-amplified (Pre-In) inputs and high-level (Speaker-In) inputs allow for connection with any head units. Built to work both in mono, as part of a three-channel system with sub and front, and in stereo for a powerful two-channel system, HCP 4 is a unique model in terms of versatility!
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

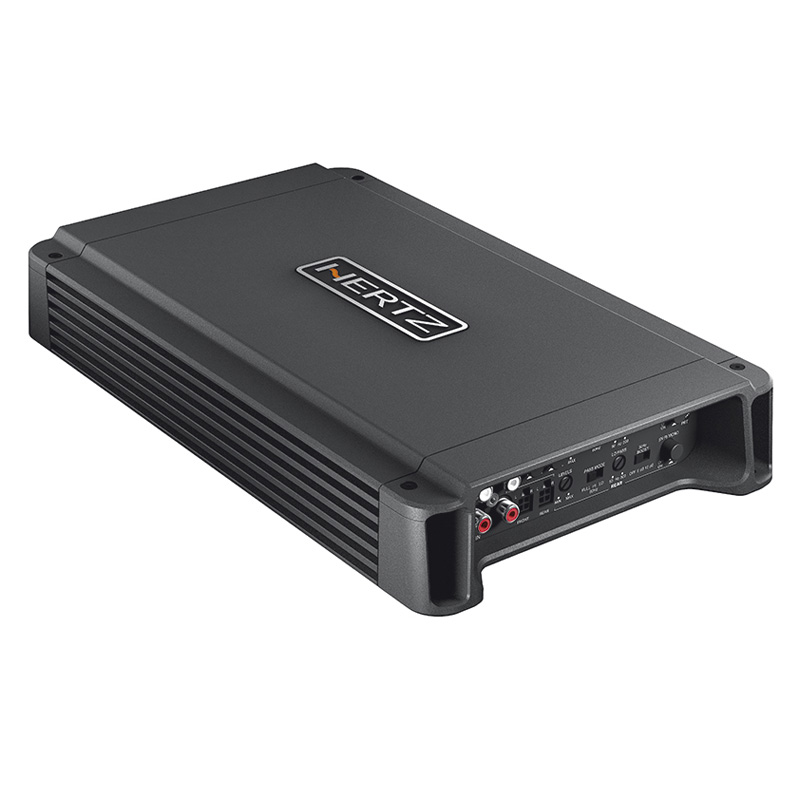

- Compact design built from extruded aluminum heatsink with the top side ensuring effective transfer of the heat.

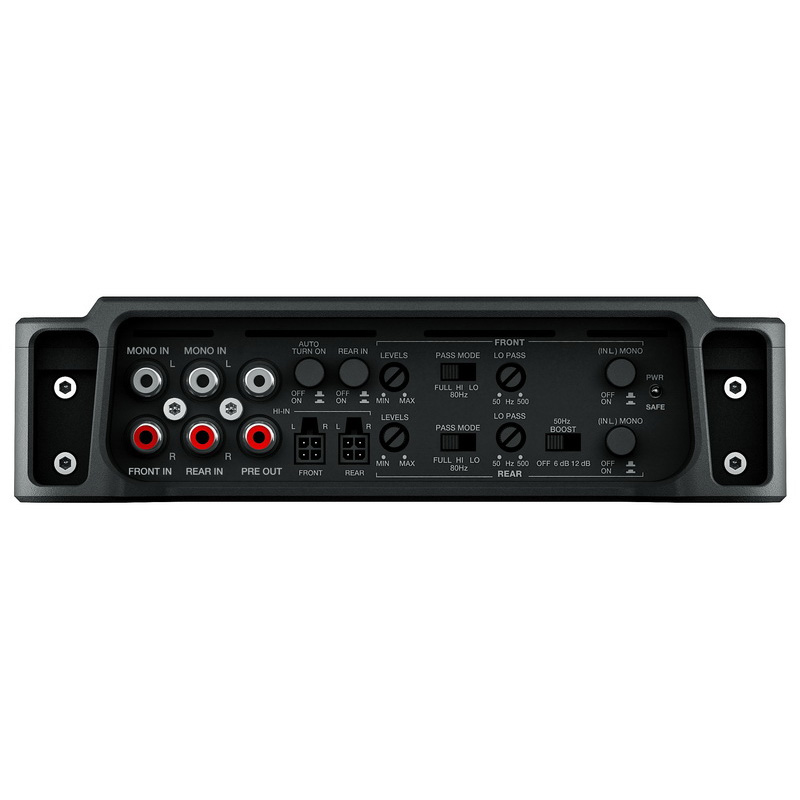

- Special balanced high-noise rejection input circuitry on the Pre-In or Speaker-In inputs.
- Speaker-In (for OEM head units) and RCA-In (for Aftermarket head units) inputs.
- Selectable ART, Automatic Remote Turn-On/Off function, automatically turns on and off the amplifier when the OEM radio turns on and off (can be enabled/disabled, with only Speaker-In inputs).

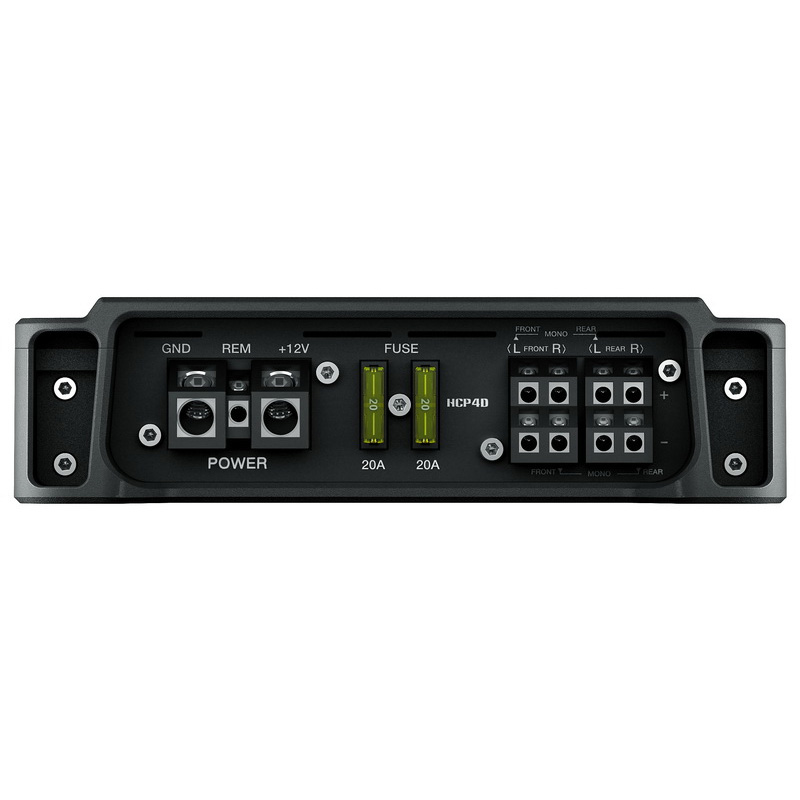

- Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors, AB-Class 2 ohm stable output stage.
- Pre-outs, also available when using Speaker-In level inputs.
- Mono operation mode (selectable) to create a sub + front three-channel system, or a powerful two-channel system.
- Bass Boost (50 Hz) selectable to 12 dB, to increase the subwoofer punch.
- Lo-Pass (50 Hz to 500 Hz) and Hi-Pass (80 Hz) 12 dB crossover filters. The Hi-Pass fixed frequency filter ensures optimal coupling with sub amplifier, also providing the ability to build a front + rear or a sub + front system.
- Selectable full range power outputs.
- Channel mode: 4-3-2
- Output Power (RMS) @ 14.4 VDC
- 4 Ch: 65 W x 4 (4 ohms)
- 4 Ch: 95 W x 4 (2 ohms)
- 3 Ch: 65 W x 2 (4 ohms) + 190 W x 1 (4 ohms)
- 3 Ch: 95 W x 2 (2 ohms) + 190 W x 1 (4 ohms)
- 2 Ch: 190 W x 2 (4 ohms)
- Bypass: Yes
- Hi-Pass: A/B: 80 Hz @ 12 dB/Oct.
- Lo-Pass: A/B: 50 ÷ 500 Hz @ 12 dB/Oct.
- Band-Pass: ---
- Distortion - THD (100Hz @ 4 ohms): 0.01 %
- S/N Ratio (A weighted @ 1V): 103 dB
- Damping factor (100Hz @ 4 ohms): 120
- Size W x D x H mm (in.): 315 x 190 x 50 (12.40 x 7.48 x 1.97)
- UPC: 8018823110570
- Weight: 8
- Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
