Audison Prima 85W x 8 RMS @4Ohms, 8-Channel Amplifier with 9 Channel DSP
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 8-Channel Amplifier
- • Owner's Manual

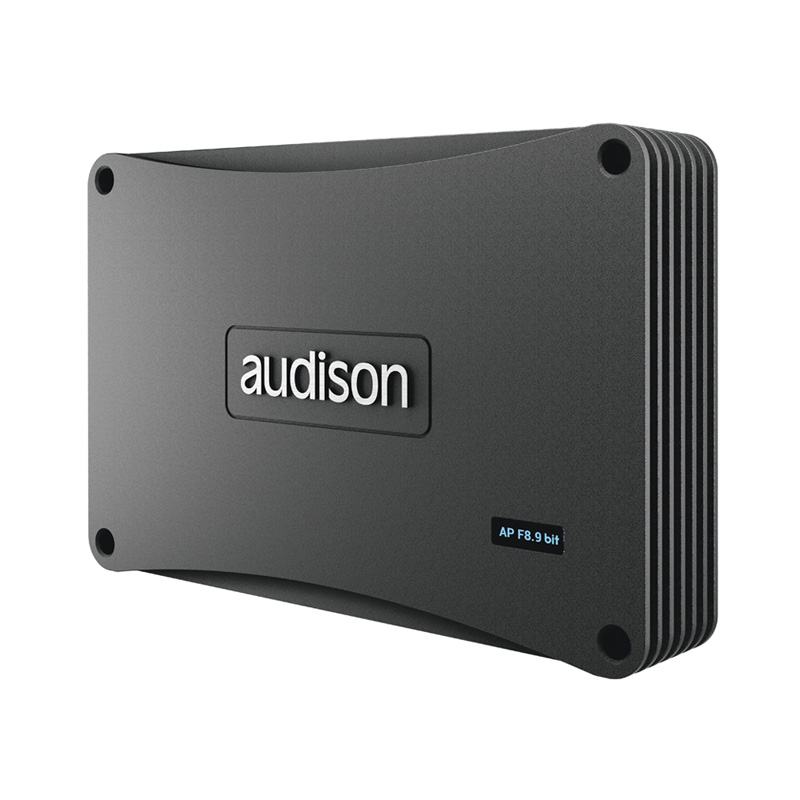

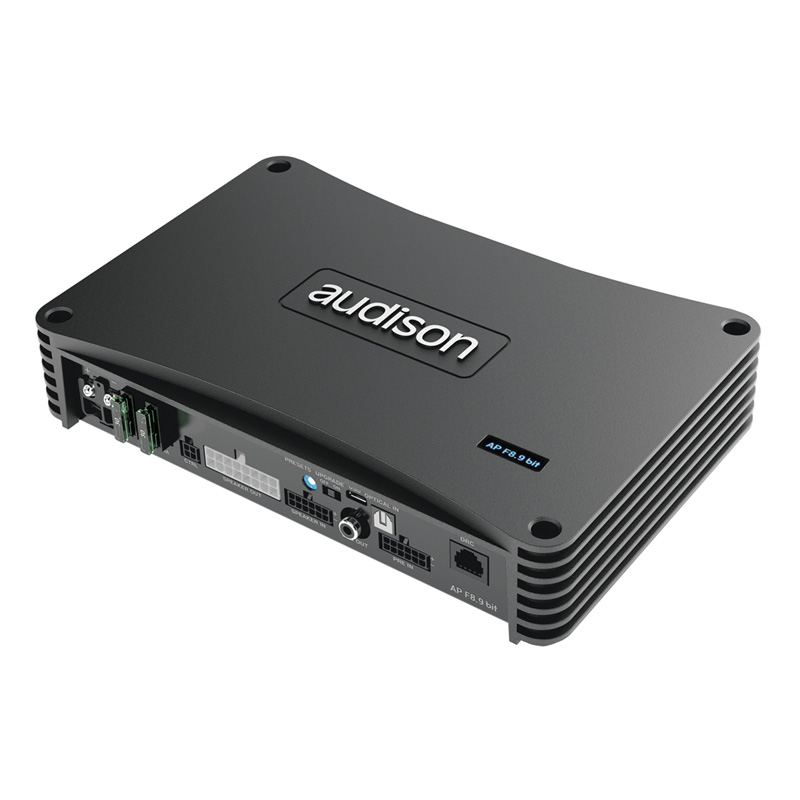

8 CH AMPLIFIER WITH 9 CH DSP

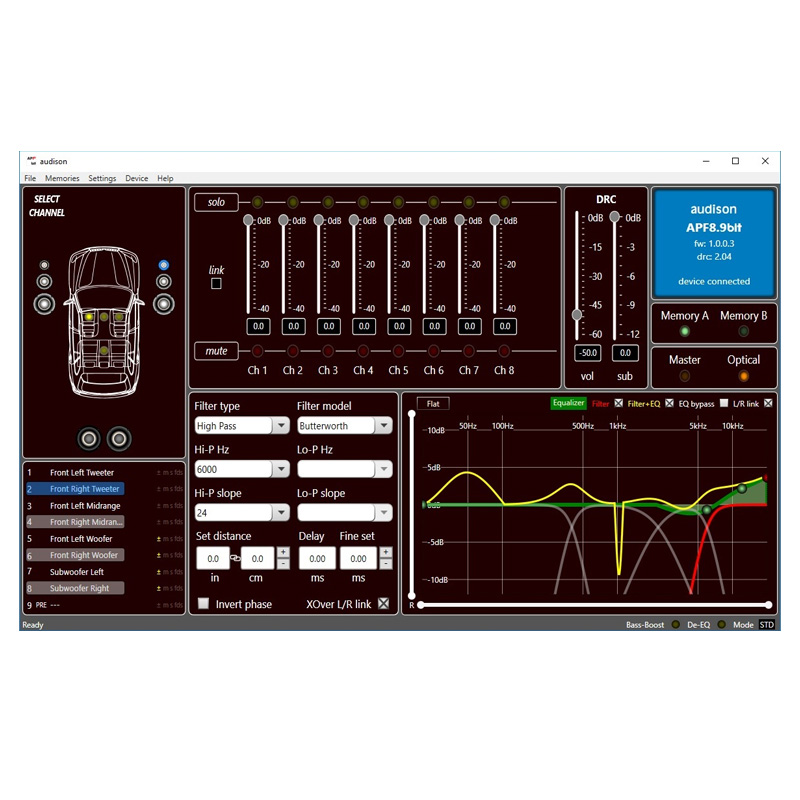

The new AP F8.9 bit is the ideal for the most demanding integration projects, where high power is required along with the flexibility of the nine-channel DSP. The word “Forza”, meaning “Power” in Italian, well describes the 8 x 85 W RMS and 4 x 260 in bridge mode (RMS @ 4Ω), with an optimal power to size ratio. The integrated processor is equipped with a dedicated software and 7 pre-configured presets for a Plug & Sound experience. Thanks to the built-in Audison USS technology (Universal Speakers Simulator), AP F8.9 bit can also be correctly connected to head-units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.
- Number of Channels : 8
- Frequency Response : 10-22000 Hz
- RMS Power Output : 130x8 Watts
- Fuse Rating : 55 A
Features:
Power Supply:
- Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
- Operating power supply voltage: 6.5V ÷17V
- Idling current: 1.6 A
- Switched off without DRC: 1.7mA
- Switched off with DRC: 5 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 55 A
- Remote IN: 6 ÷ 15 VDC (1 mA)
- Remote OUT: 4 ÷ 15 VDC (150 mA)
- ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): 2 ÷ 7 VDC
- AST - Automatic Signal Turn on/off (Selectable): Speaker-In
Amplifier Stage:
- Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0,06%
- Damping factor @ 1 kHz, 4Ω, 2 VRMS: > 110
- Bandwidth @ -1.5 dB: 10Hz ÷ 22kHz
- S/N ratio (A weighted @ 1 V Input) Master Input: 100 dBA
- S/N ratio (A weighted @ 1 V Input) Optical Input: 105 dBA
- Input sensitivity Pre-In: 0.6 ÷ 6 VRMS
- Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS
- Minimum load impedance
- 8Ch: 2Ω
- 4Ch - (Bridge 1/2; 3/4; 5/6; 7/8) : 4Ω
- OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
- 8Ch @ 4Ω: 85 W x 8
- 8Ch @ 2Ω: 130 W x 8
- 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 260 W x 4

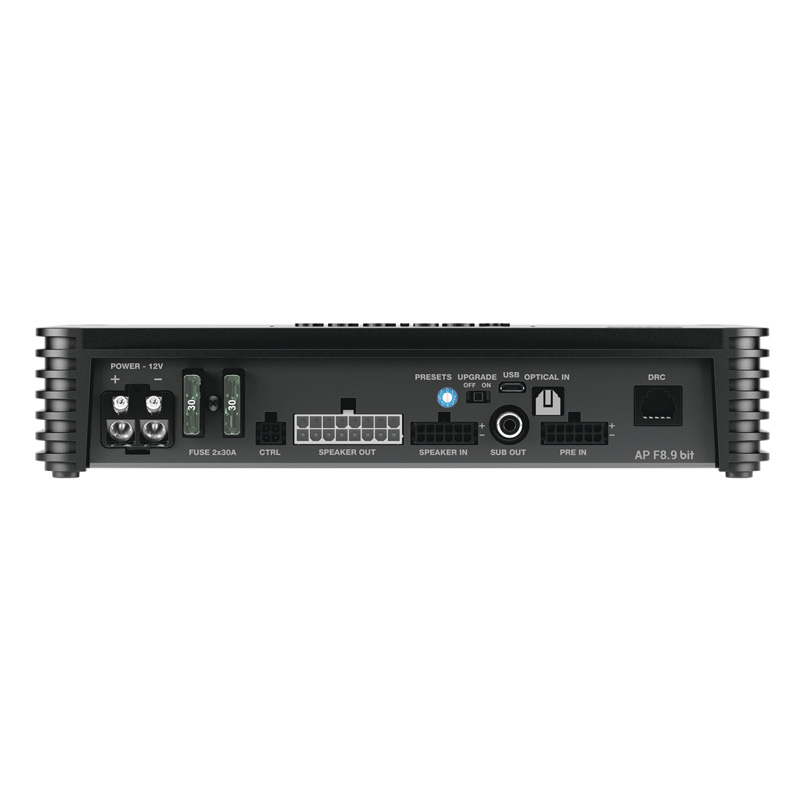

Inputs / Outputs:
- Pre-In Inputs: Ch1 ÷ Ch6 customizable
- Speaker-In Inputs: Ch1 ÷ Ch6 customizable
- Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit
- Sub Out (RCA Pre Out): 4 VRMS
Digital Signal Processor:
- Filter type: Full / Hi pass / Low Pass / Band Pass
- Filter mode and slope: Linkwitz @ 12/24 dB Butterworth @ 6/12/18/24 dB
- Crossover frequency: 68 steps @ 20 ÷ 20k Hz
- Phase control: 0° / 180°
- Bass Boost: N.1 Adjustable Parametric Pole
- Analog Input Equalizer (20 ÷ 20k Hz): Automatic De-Equalization
- Output Equalizer: N.9 Parametrics Equalizers: ±12 dB;10 pole; 20 ÷ 20k Hz
- Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
- Time Alignment Delay: 0 ÷ 15 ms
- Time Alignment Step: 0.08 ms; 2.8 cm / 1.1 inch
- Time Alignment Fine SET: 0.02 ms; 0.7 cm / 0.27 inch
- Preset (Drive Preset): Rotary switch for 7 installation Presets
- Acoustic Preset: N.2 DSP Memory, DRC selectable
Control Connections:
- From / To Personal Computer: 1 x Micro USB
- To Audison DRC AB / MP: 1 x AC Link
- Optical select: Optical select wire control +12 V enable
- Master enable: Master enable wire control +12 V enable
General Requirements:
- PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
- Software/ PC requirements: Microsoft Windows (32/64 bit): Vista, Windows 7, Windows 8, Windows 10
- Video resolution with screen resize: min. 1024 x 600
- Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
Size:
- Max size W x H x D (mm/inch): 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1
- Weight (kg/lbs): 1.98 / 4.36
- UPC: 8018823126977
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
This amp is undeniably versatile, and its DSP functionality works like a charm. However, it's worth noting that it might lean towards the expensive side if you're seeking a straightforward car audio setup with great sound. While it offers a lot in terms of features and performance, it's essential to consider your specific needs and budget before making the investment.
