- Maximum Power : 600 Watts
- Number of Channels : 1
- RMS Power Output : 400 Watts
- Amplifier Class : D
- Fuse Rating : 25 A
Features:
- Updated High-Efficiency Full-Range Digital Topology
- Enhanced Power IR Digital Chipset
- Conformal-Coated 4-layer PCB

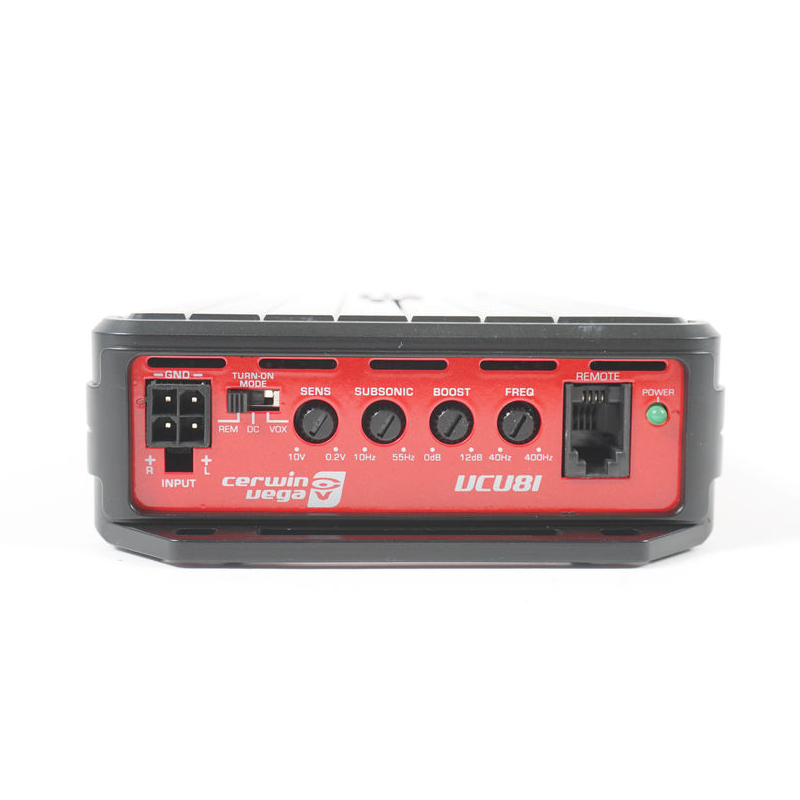

- Remote Turn On Configurator - REM/DC/VOX
- Boosted RFI (Radio Frequency Interference) Rejection
- Compact Matching Heatsink Platform Dimensions
- Accepts HI and LO Level Input Up To 12V
- Water-Resistant
Specifications:
- 600W X 1 @ 1Ω RMS
- 400W X 1@ 2Ω RMS
- 240W X 1@ 4Ω RMS
- Types: Class D
- Power Supply: Full PWM
- Power Supply (Threshold): 10.0DVC – 17.0DVC
- Idle Current: (0.7A)
- Distortion - THD (1KHz@4Ω): (0.5%)
- Distortion - S/N Ratio (A weight @ 1W): -85dBA
- Distortion - S/N Ratio (A weight @ FP): -101.1dBA
- Input Sensitivity - Hi/Low Input Level: 200mV – 10.0V / 200mV – 10.0V
- Input Impedance - Low Input Level: 20 KΩ
- Input Impedance - AUX Input Level: 20 KΩ
- Output Impedance: 0.011 Ω
- Damping Factor (50Hz@4Ω): >250
- Bandwidth (-3dB): 10Hz-350Hz
- Crossover (-12 dB/ Oct) Variable High-Pass: N/A
- Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: 10Hz-55Hz
- FUSE Ratings - ATC: 25A
- Dimension - Length x Width x Height - Inches(mm): 7.7 x 4.02 x 1.4 (195.6 x 102.1 x 35.5)
- UPC: 847169050510
- Weight: 10
