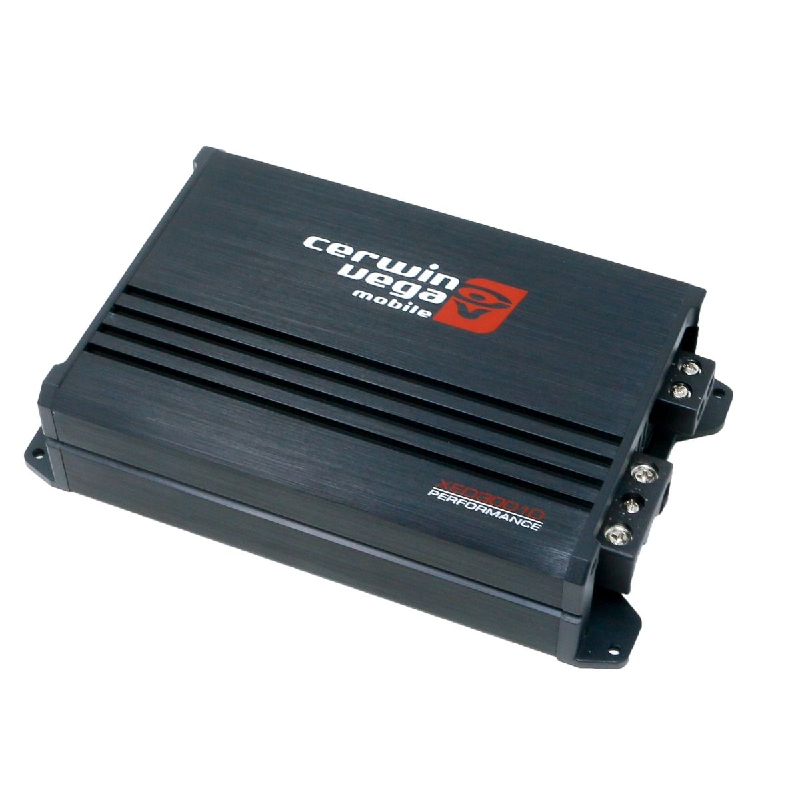

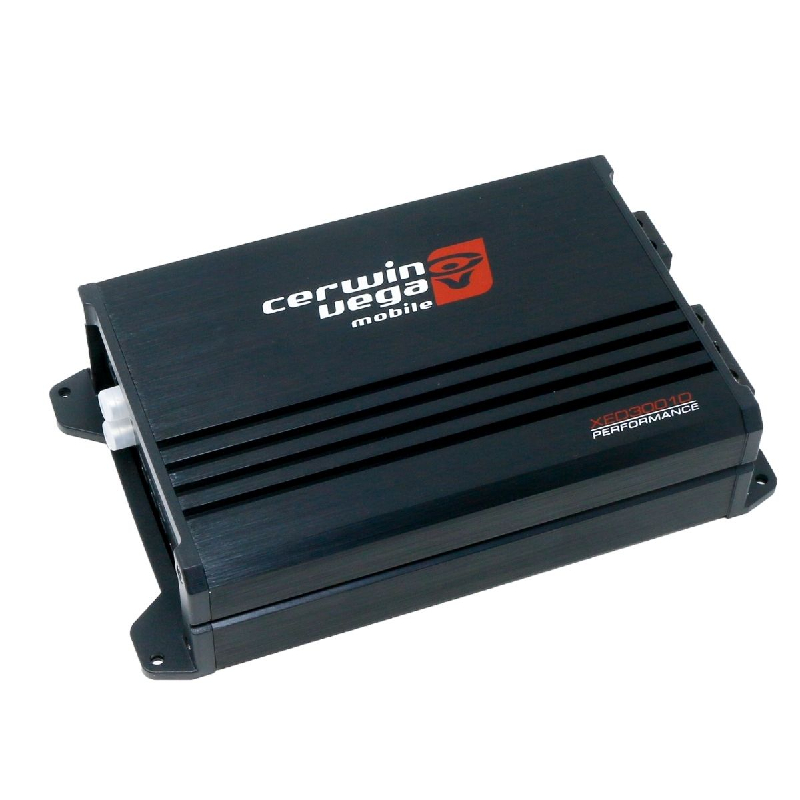

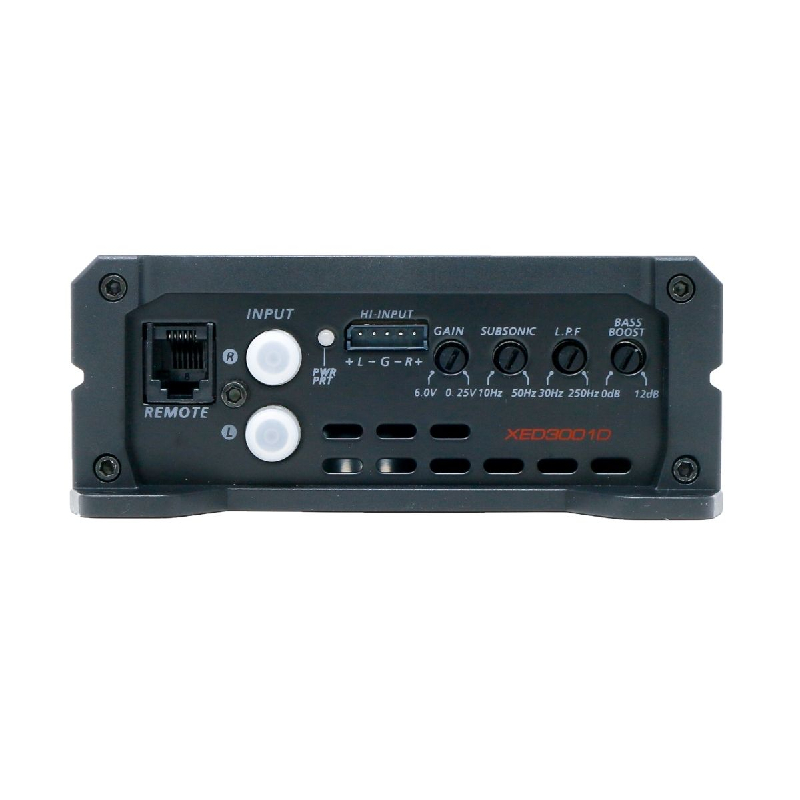

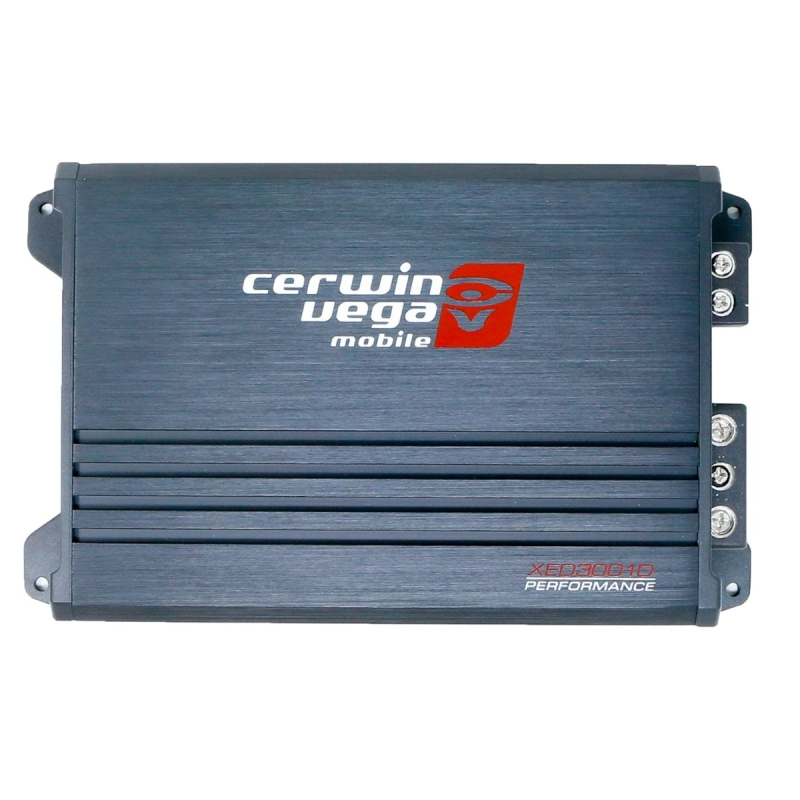

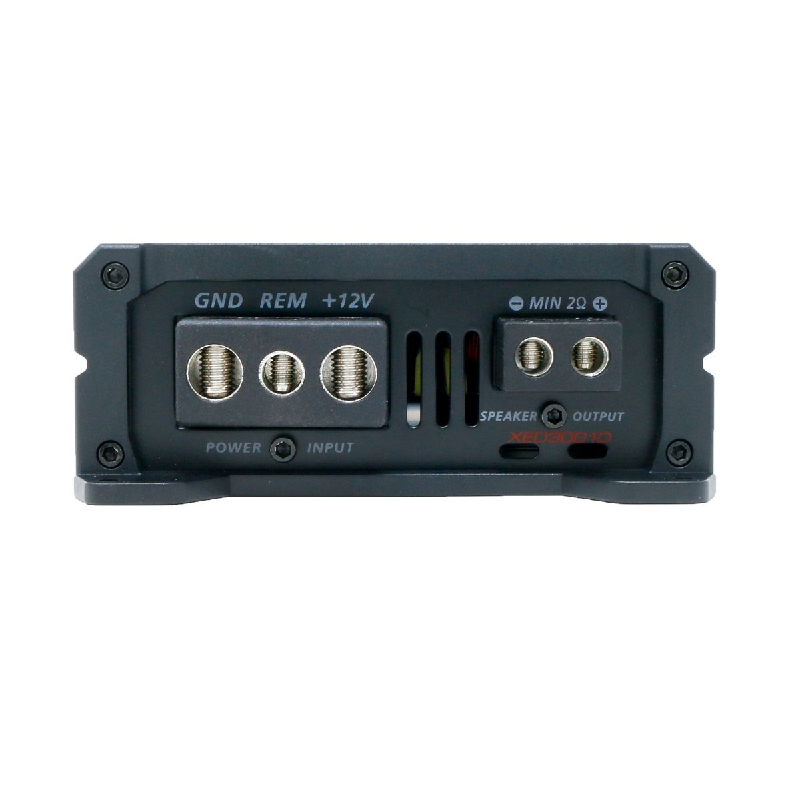

Cerwin Vega  XED3001D

XED Series 300W x 1 @2Ohms, 400W Max Power Class D Mono Block Car Amplifier

Item #84120

Condition:   Brand New

Product Highlights

  • XED Series design
  • 300W x 1 @ 2 Ohms
  • 400W max power
  • Class D mono block
  • Efficient and powerful

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$149.99

Reg. Price $199.99  Save $50.00

Out of Stock Check out other products listed below
Cerwin Vega Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


  • Maximum Power : 400 Watts
  • Number of Channels : 1
  • RMS Power Output : 300x1 Watts
  • Amplifier Class : D
  • Fuse Rating : 20x2 A

Features:

  • Latest High-Efficiency Class D Topology
  • Compact Size with Ambient backlit logo
  • RCA “Pass Thru” output for easy system expansion
  • Fully Variable Crossovers (12dB per octave)
  • Handles HI and LO level input to 12V
  • 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode
  • Proprietary Vega Bass Boost EQ Up To 12dB



Specifications:

  • MAX Power Rating 400W MAX
  • RMS Power(2Ω) 1 x 300 W
  • RMS Power (4Ω) 1 x 200 W
  • Types Class D
  • Power Supply Full PWM
  • Power Supply (Threshold) 10.0DVC – 16.0DVC
  • Idle Current (0.7A)
  • Distortion - THD (1KHz@4Ω) <0.1%
  • Distortion - S/N Ratio (A weight @ 1W) -85dBA
  • Distortion - S/N Ratio (A weight @ FP) -101.1dBA
  • Input Sensitivity - Hi/Low Input Level 1.1V ~>20.0V /250mV – 6.0V
  • Input Impedance - Low Input Level 20 KΩ
  • Input Impedance - High Input Level 100 KΩ
  • Output Impedance 2 Ω
  • Damping Factor (50Hz@4Ω) >70
  • Bandwidth (-3dB) 10Hz-250Hz
  • Crossover (-12 dB/ Oct) Variable High-Pass N/A
  • Crossover (-12 dB/ Oct) Variable Low-Pass 35Hz-250Hz
  • Crossover (-12 dB/ Oct) Variable Sub-Sonic 10Hz-50Hz
  • FUSE Ratings - ATC 2 x 20A
  • Dimension - Length x Width x Height - Inches(mm) 6.3 x 4.7 x 1.8 ( 160 x 120 x 46.5)
  • UPC: 847169029172
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
