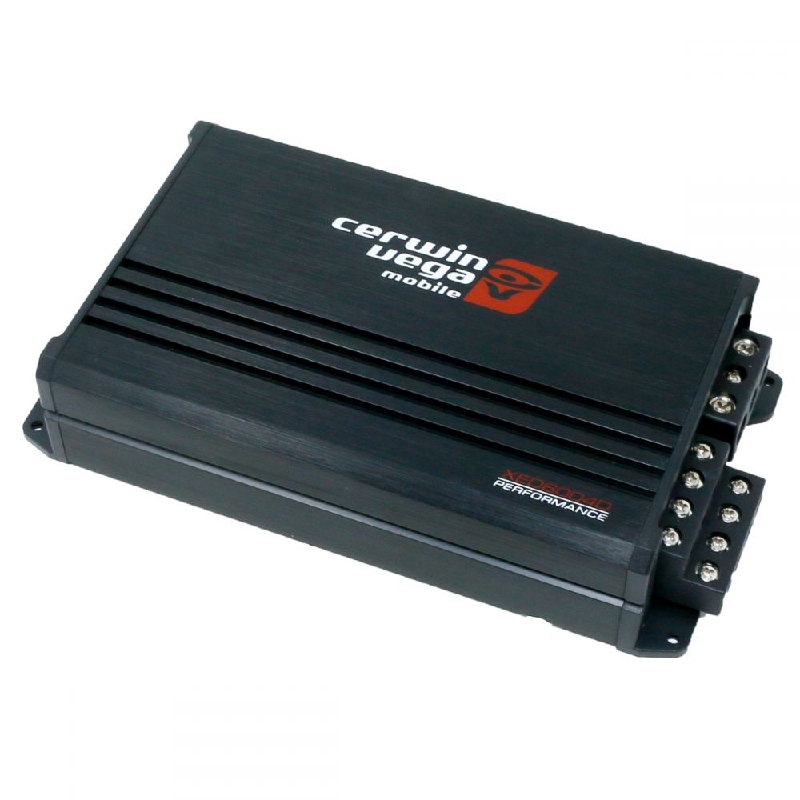

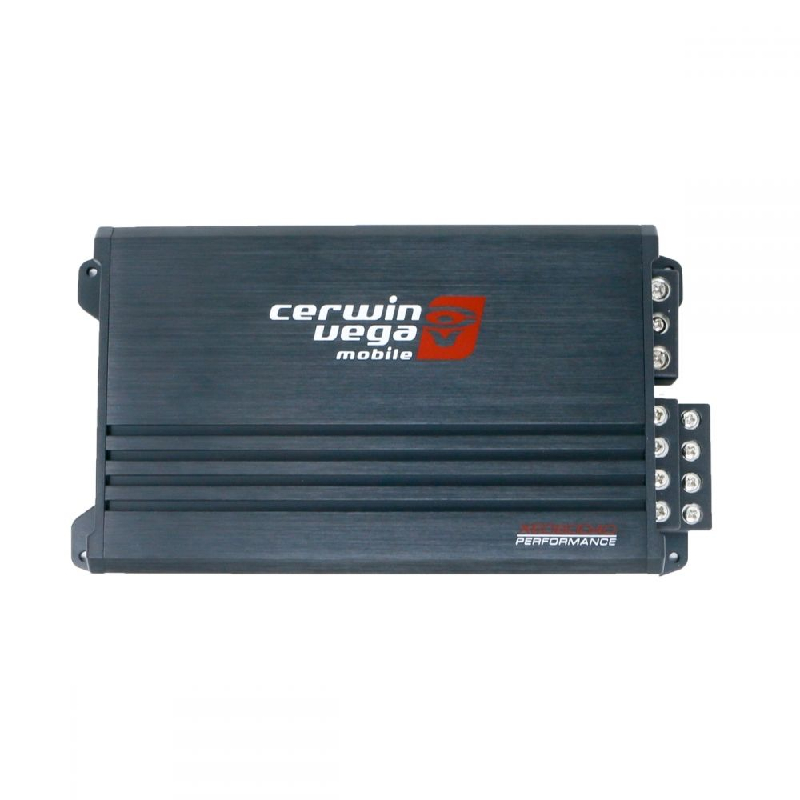

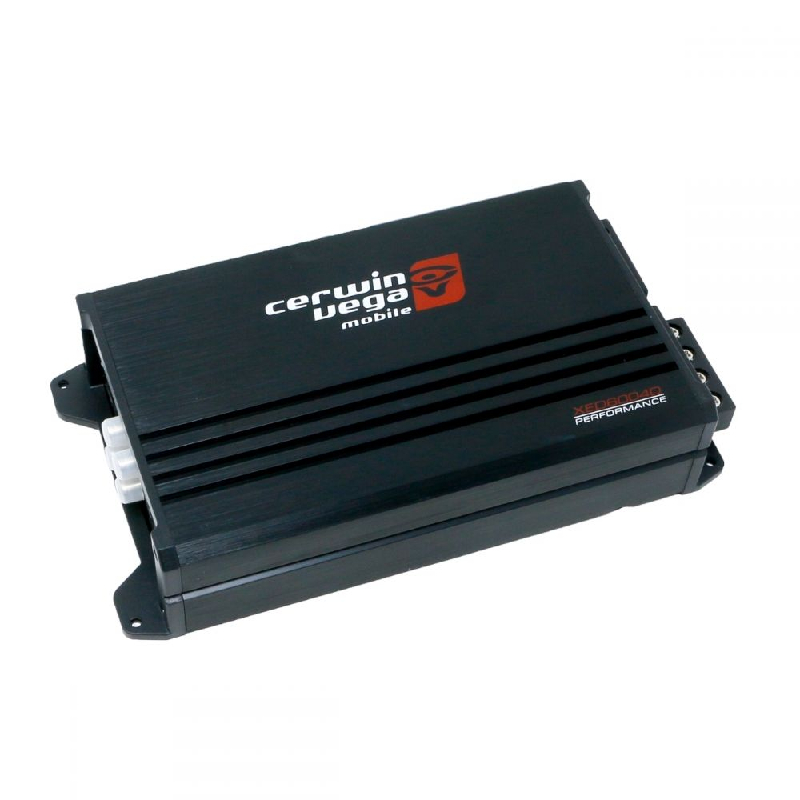

Cerwin Vega  XED6004D

XED Series 120W x 4 @2Ohms, 500W Max Power Class D 4-Channel Car Amplifier

Item #84126

Condition:   Brand New

Product Highlights

  • XED Series
  • 120W x 4 @ 2 Ohms
  • 500W Max Power
  • Class D 4-Channel Car Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$229.99

Reg. Price $279.99  Save $50.00

Out of Stock Check out other products listed below
Cerwin Vega Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


  • Maximum Power : 500 Watts
  • Number of Channels : 4
  • RMS Power Output : 120x4 Watts
  • Amplifier Class : D
  • Fuse Rating : 25x2 A

Features:

  • Latest High-Efficiency Class D Topology
  • Compact Size with Ambient backlit logo
  • RCA “Pass Thru” output for easy system expansion
  • Fully Variable Crossovers (12dB per octave)
  • Handles HI and LO level input to 12V
  • 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode
  • Proprietary Vega Bass Boost EQ Up To 12dB



Specifications:

  • MAX Power Rating: 500W MAX
  • RMS Power(2Ω): 4 x 120W
  • RMS Power (4Ω): 4 x 80W
  • RMS Bridge (mono 4Ω): 2 x 220w
  • Types: Class D
  • Power Supply: Full PWM
  • Power Supply (Threshold): 10.0DVC – 16.0DVC
  • Idle Current: (0.7A)
  • Distortion - THD (1KHz@4Ω): <0.1%
  • Distortion - S/N Ratio (A weight @ 1W): -85dBA
  • Distortion - S/N Ratio (A weight @ FP): -101.1dBA
  • Input Sensitivity - Hi/Low Input Level: 1.3V ~>20.0V / 250mV – 6.0V
  • Input Impedance - Low Input Level: 10 KΩ
  • Input Impedance - High Input Level: 100 KΩ
  • Output Impedance: 2 Ω
  • Damping Factor (50Hz@4Ω): >70
  • Bandwidth (-3dB): 10Hz-30KHz
  • Crossover (-12 dB/ Oct) Variable High-Pass: 35Hz-250Hz
  • Crossover (-12 dB/ Oct) Variable Low-Pass: 35Hz-250Hz
  • Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
  • FUSE Ratings - ATC: 2 x 25A
  • Dimension - Length x Width x Height - Inches(mm): 7.1 x 4.7 x 1.8 (180 x 120 x 46.5)
  • UPC: 847169019753
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
