- Diameter : 10 Inch
- Maximum Power : 1600 Watts
- Sensitivity : 83.3 dB
- Impedance : 4 Ohm
- Peak Power Handling : 1600 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 5.39 Inches
- RMS Power Handling : 800 Watts
What's Inside?

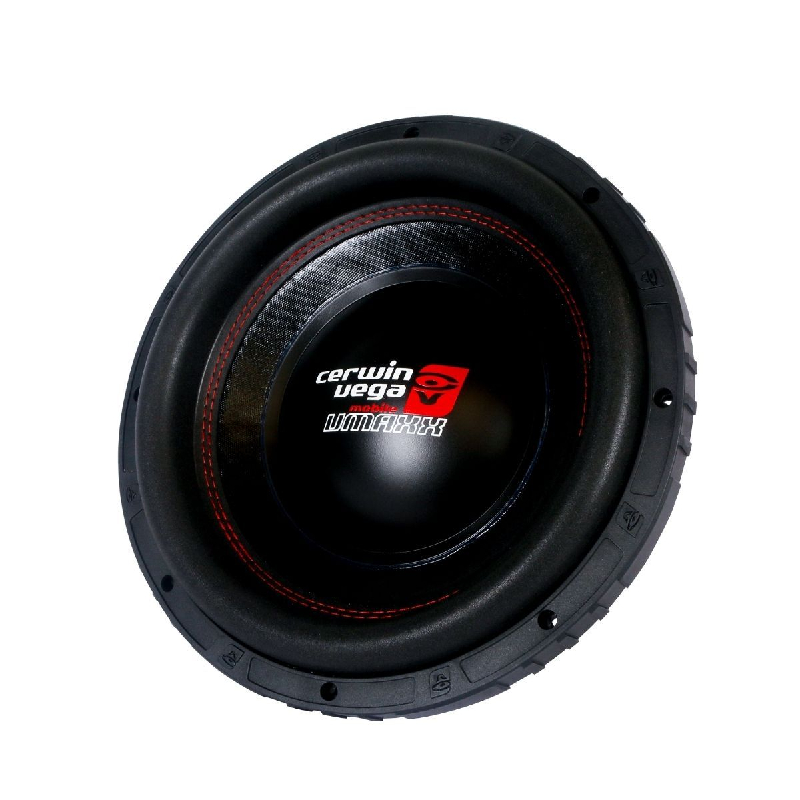

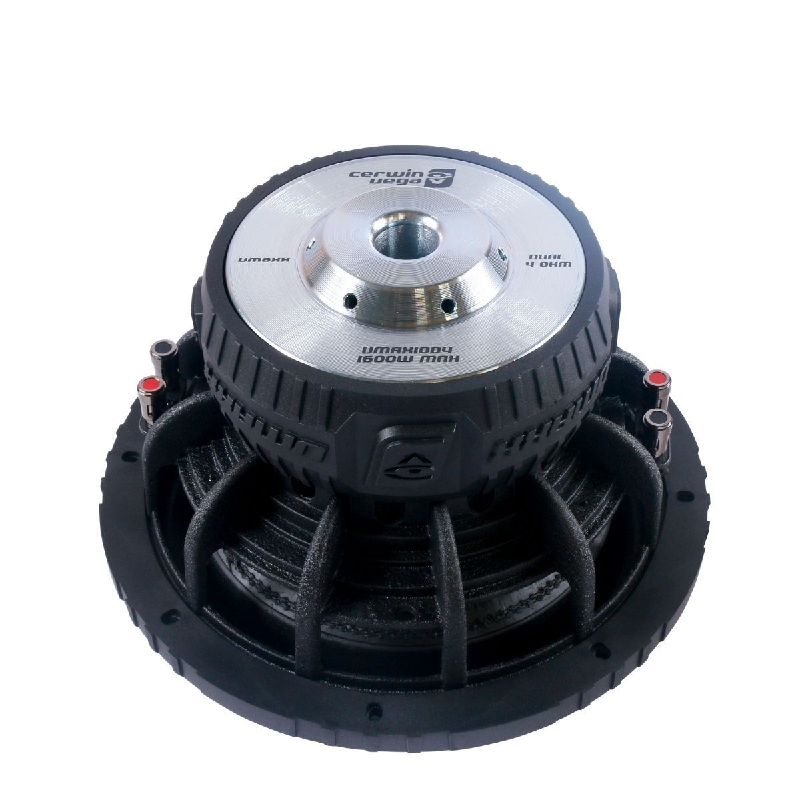

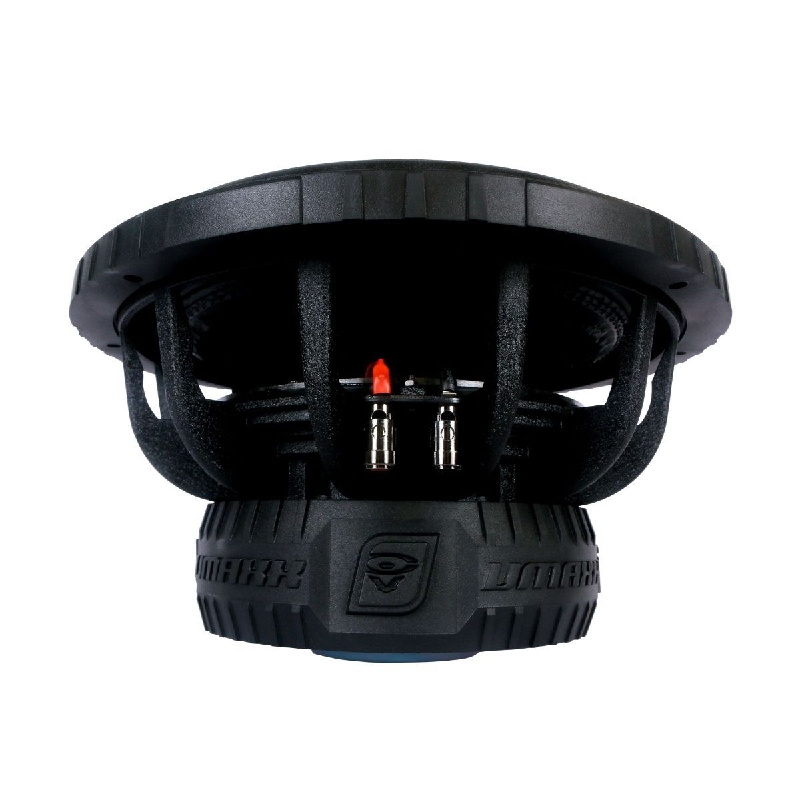

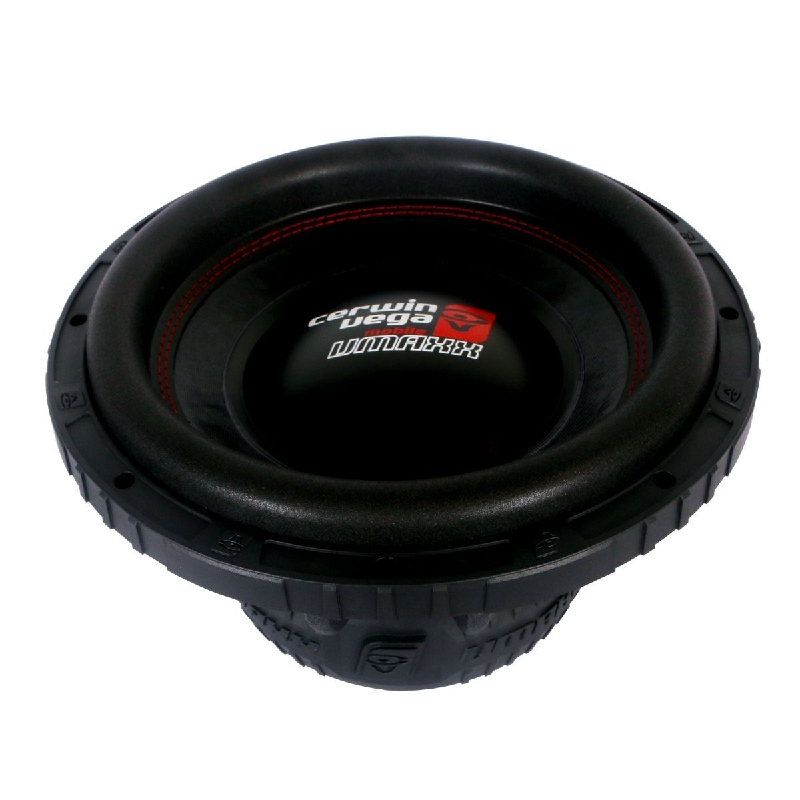

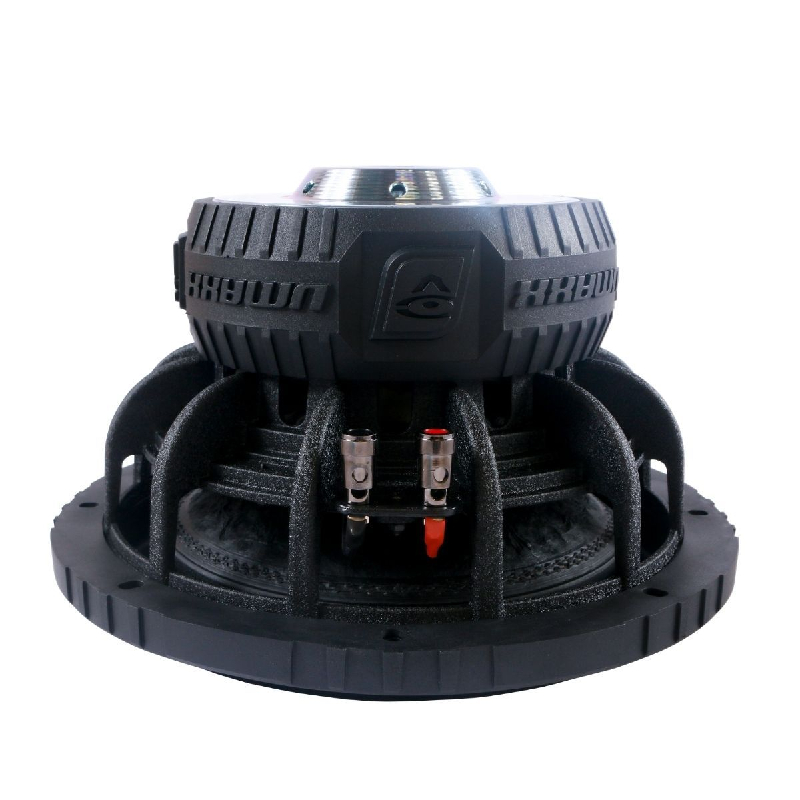

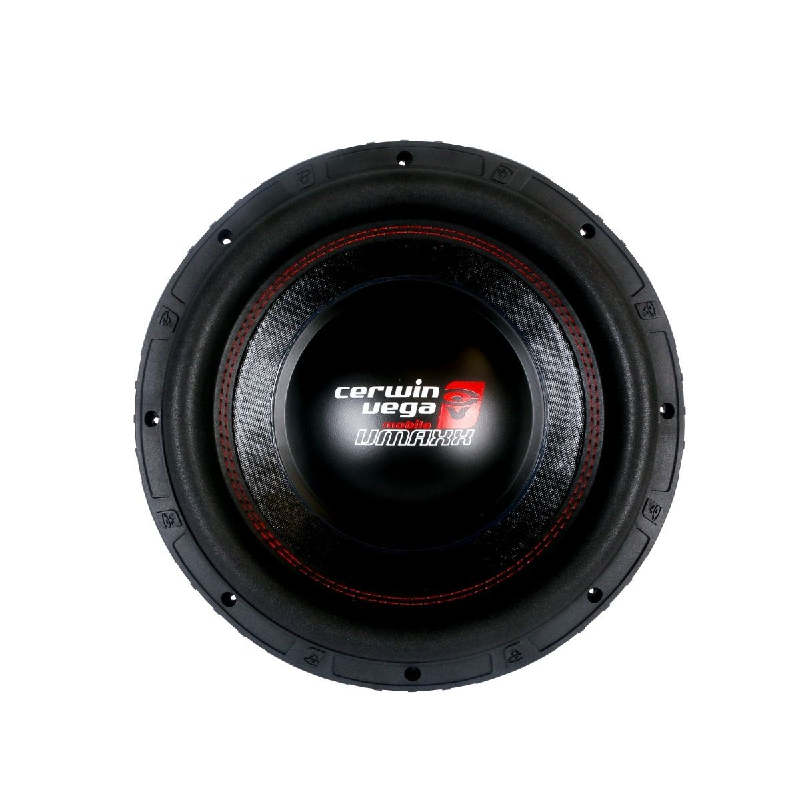

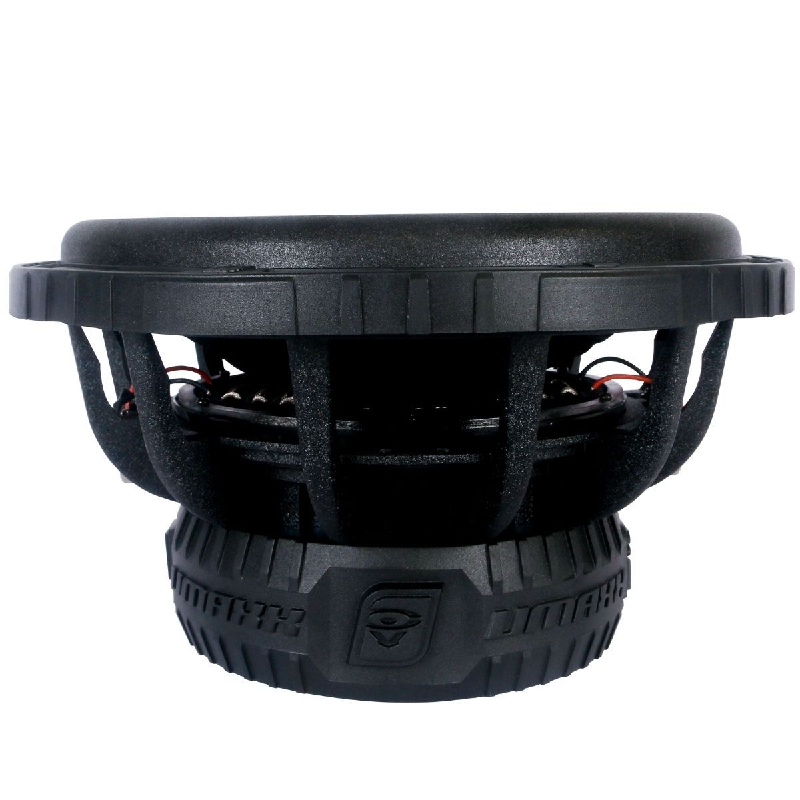

- 1 10" VMAXX Series Dual 4 Ohm Car Subwoofer
Features:
- Heavy Industrial Strength Aluminum Cast Frame
- Treated Semi-Pressed Pulped Cone
- Elevated Motor Structure For Increased Cooling
- Oversized Spider
- Black Coated 2.5 inch Voice Coil for Higher Thermal Capability
- Oversized Polished Black Chrome Terminals
- Shorting Ring for lower Distortion
- Polished Bumped Backplate
- Klippel Optimized Motor/Suspension Symmetry
Specifications:
- 10” Dual 4-ohm High-Performance Subwoofer
- 800W RMS / 1600W MAX
- Nominal Impedance (ohms): N/A
- Xmax - Inch(mm): 15
- Fs-Free Air Resonance (Hz): 32.6
- Vas (Liter): 24.6
- Qts: 0.56
- Qes: 0.61
- Qms: 6.73
- Re (Ω)[series]: 1Ω/4Ω
- Sd (cm²): 0.036
- Cms (mm/N): 0.13
- Mms (g): 178.5
- BL (T*M): 14.7
- SPL (db): 83.3
- Pwr (W) NOM/MAX: 800/1600
- Mounting Depth: 5.39” (137) in. (mm)
- Total Diameter: 11.06” (281) in. (mm)
- Mounting Diameter (inch/mm): 9.47” (240.5) in. (mm)
- Screw Hole Diameter: 0.26” (6.5) in. (mm)
- Displacement (ft3/L): 0.072 (2.05L) cu.ft / 3/L
- UPC: 0847169050251
- Weight: 10
