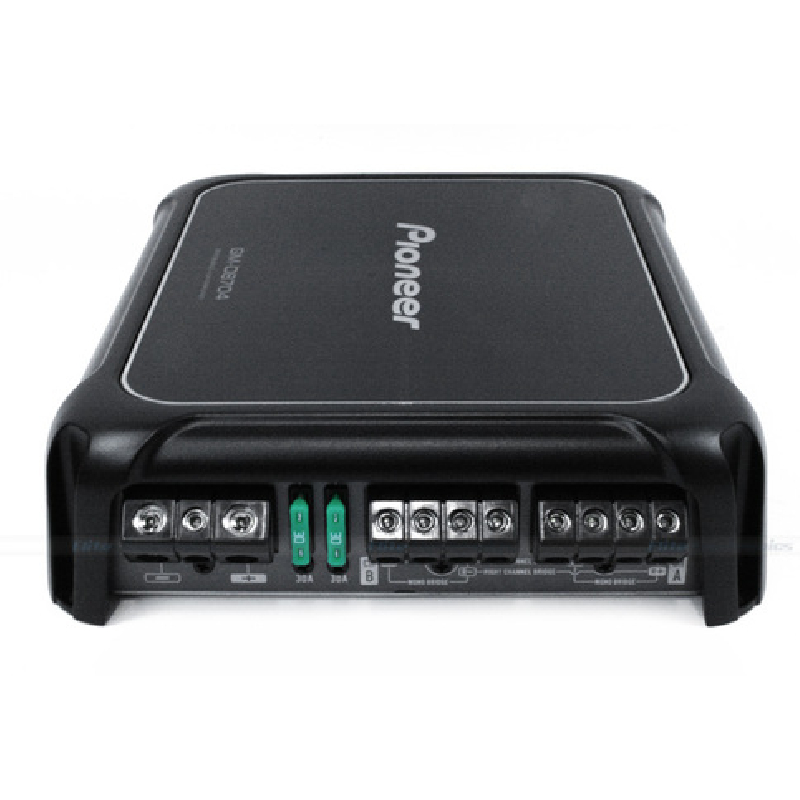

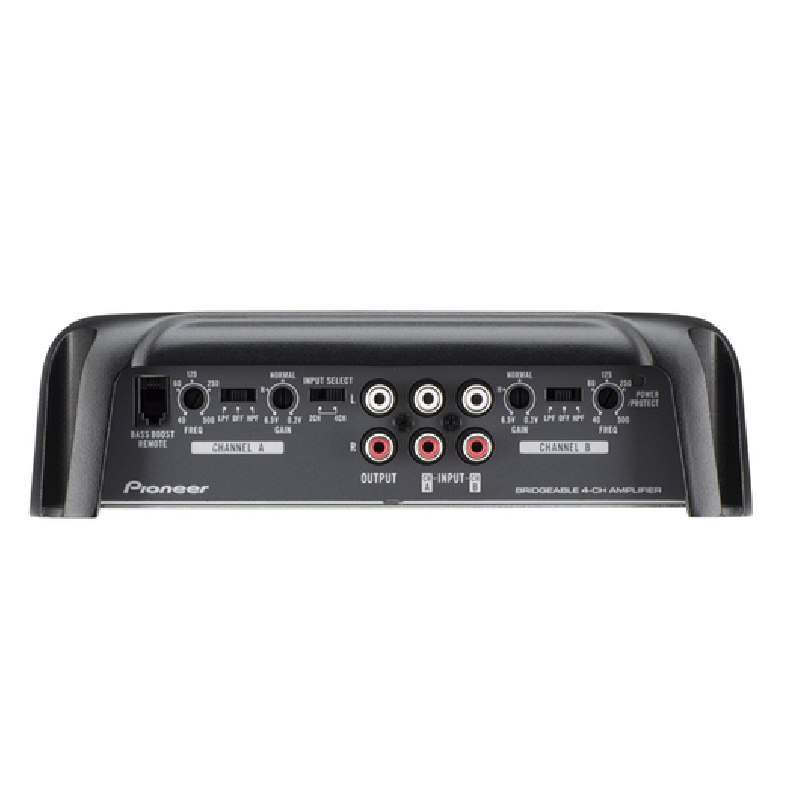

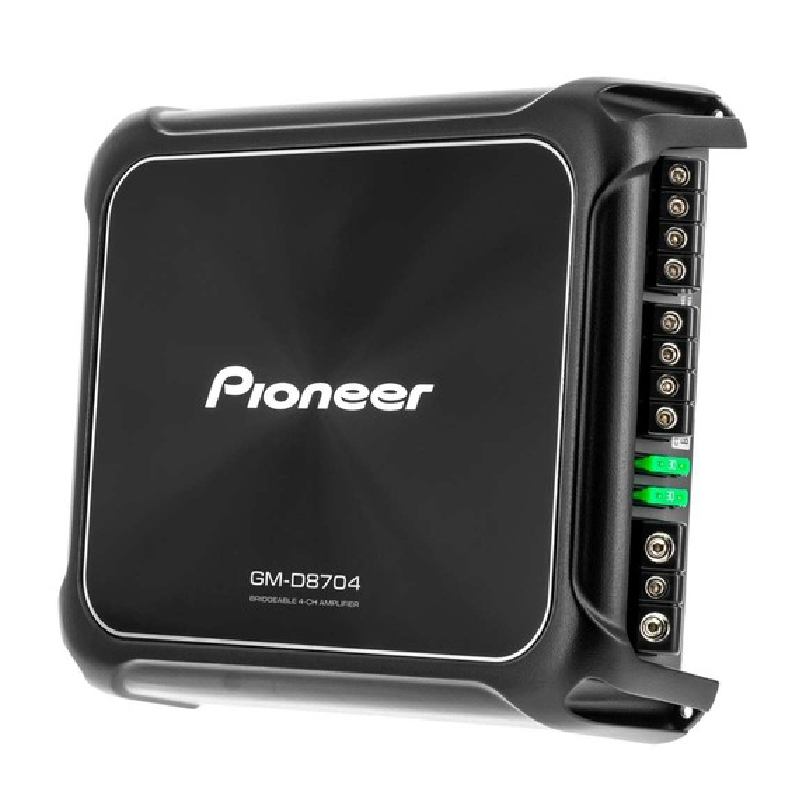

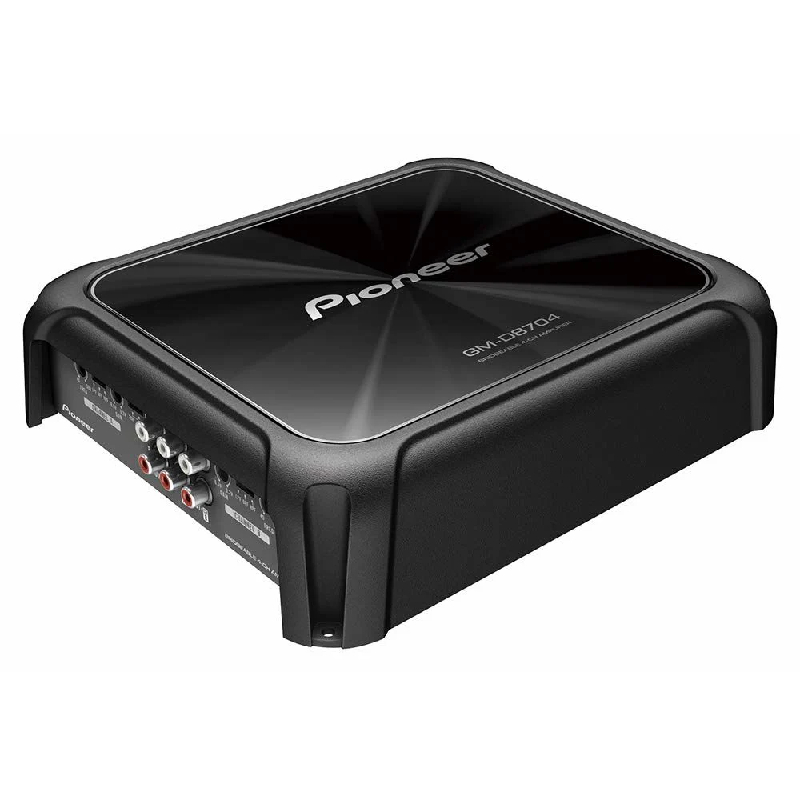

Pioneer  GM-D8704

4-channel Class-FD 1200W Max Power Bridgeable Amplifier

Item #89672

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Pioneer GM-D8704 Class-FD 4-channel Bridgeable Amplifier


We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-Channel Amplifier
  • • (2) 30-amp ATO fuses (installed)
  • • Bass Boost Remote Control
  • • Bass Boost Remote Control Cable
  • • 2 Speaker Level to RCA Input Adapters
  • • (4) Installation Screws
  • • Wire Terminal Tool
  • • 1 Year Warranty Sheet
  • •Owner's manual (English/ French)
Big Power, Small Size

Pioneer’s extra-efficient Class-D amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

Protection Control System (PCS)

Pioneer’s PCS continuously monitors the input voltage, current consumption, and operating temperature to automatically adjust the amplifier’s output to ensure operational stability during long listening sessions or when installed in high-temperature environments.


SPECIFICATIONS


  • Maximum Power : 1200 Watts
  • Number of Channels : 4
  • Frequency Response : 10-50 Hz
  • Amplifier Class : D
  • Fuse Rating : 30x2 A

FEATURES


Features:

  • Max power output: 600 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • High-density split-dome convection heat-sink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
  • Low level: 200mV-6.5V
  • High level: 0.8V-16V
  • Variable high-pass filter (40-500 Hz, 12 dB/octave)
  • Variable low-pass filter (40-500 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 40-50,000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10-7/16"W x 2-3/8"D x 7-7/8"H
  • 1-year Sonic Electronix Warranty



Specifications:

  • Max.power output: 200 W x 4 (4Ω) 300 W x 4 (2Ω) 600 W x 2 (4Ω Bridged)
  • RMS power output: 100 W x 4 (4Ω) 150 W x 4 (2Ω) 125 W x 4 (1Ω) 300 W x 2 (4Ω Bridged)
  • Frequency Response: 10 Hz to 50 kHz
  • Impedance: 1Ω to 8Ω
  • Total Harmonic Distortion(THD): <0.05%
  • S/N Ratio: >95 dB
  • RCA Outputs (Press- Through): Yes (A-Ch.)
  • Speaker Level Input: Yes
  • Automatic Signal Sensing and Turn-On: Yes
  • Crossover Type: Variable HPF/LPF
  • Crossover Frequency: 40 Hz to 500 Hz
  • Bass Boost Frequency: 50 Hz
  • Baas Boost Level: 0 dB to 18 dB
  • Bass Boost Remote: Yes (B-Ch.)
  • Dimensions: 252 mm x 60 mm x 215 mm
  • UPC: 0884938421928
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
