Pioneer  GM-D9701

1-channel Class-D 2400W Max Power Monoblock Amplifier

Item #89673

Condition:   Brand New

Product Highlights


  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$329.99

Reg. Price $339.99  Save 3%

Out of Stock Check out other products listed below
Pioneer Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:

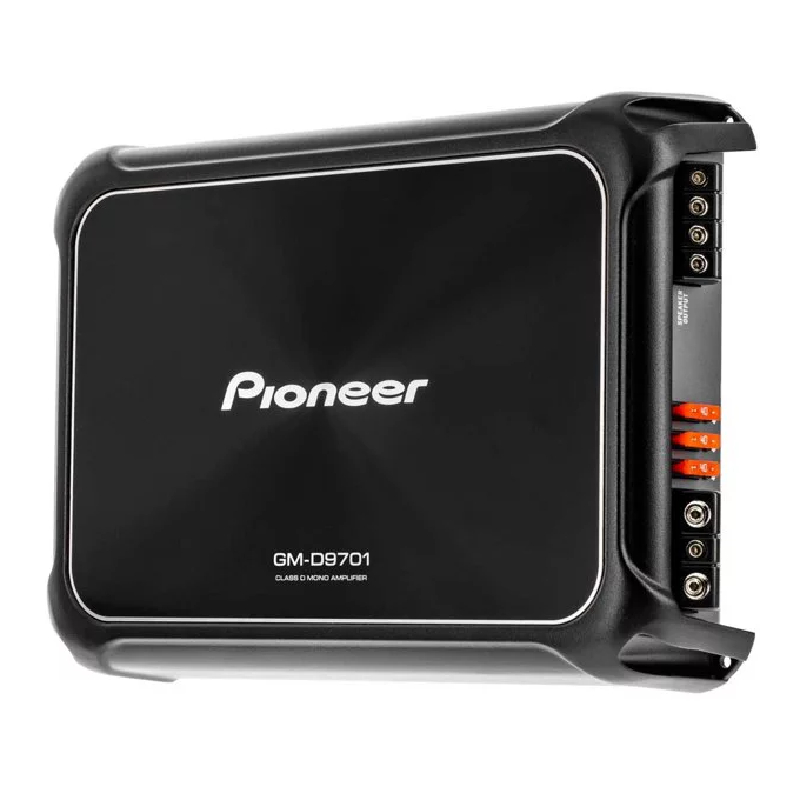

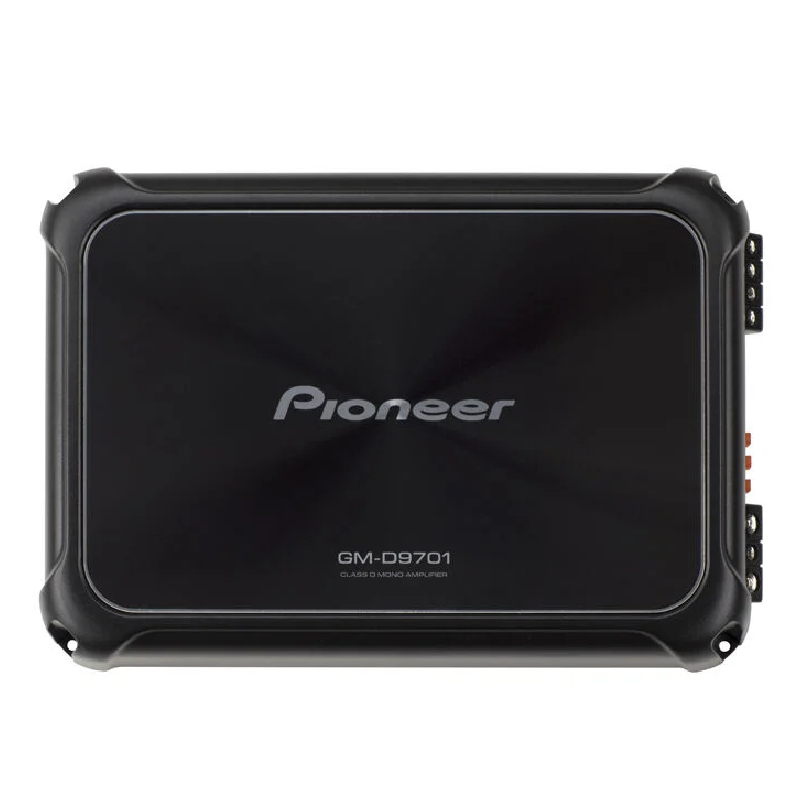

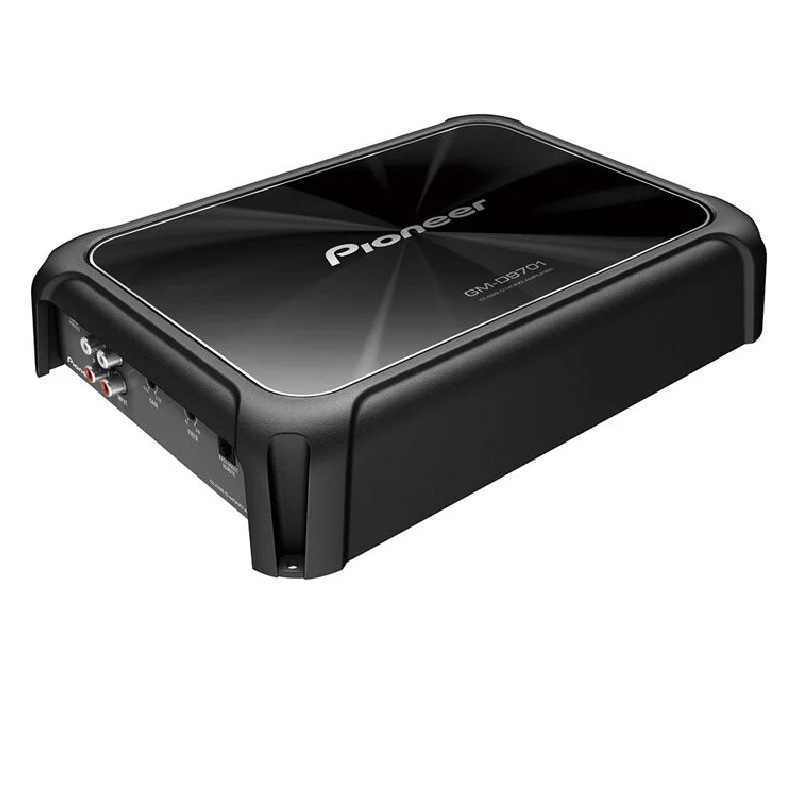

Pioneer GM-D9701 Class-D 1-channel Monoblock Amplifier


We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 1-Channel Amplifier
  • • (3) 40-amp ATO fuses (installed)

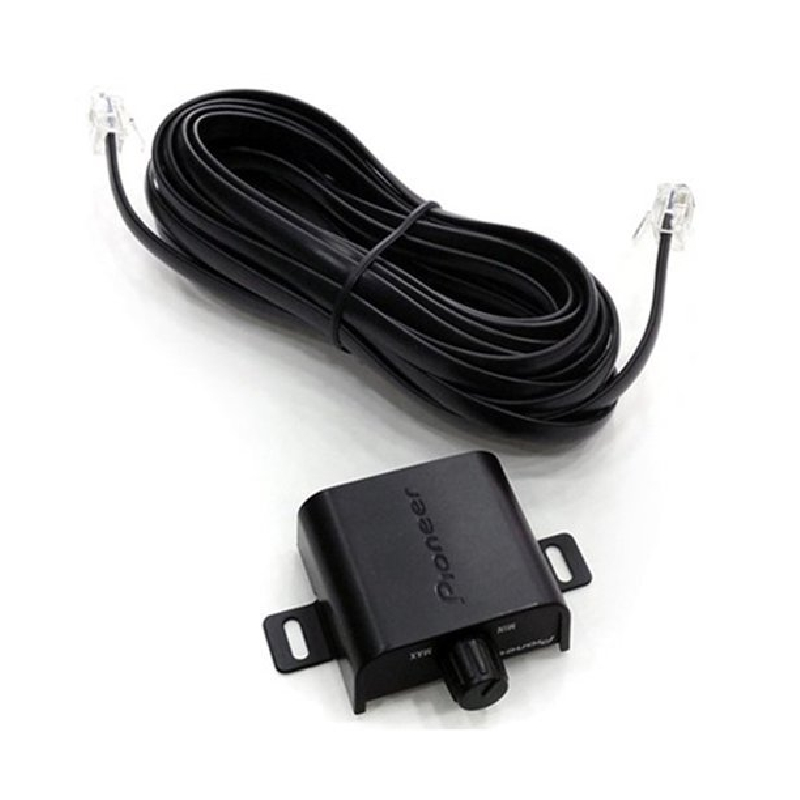

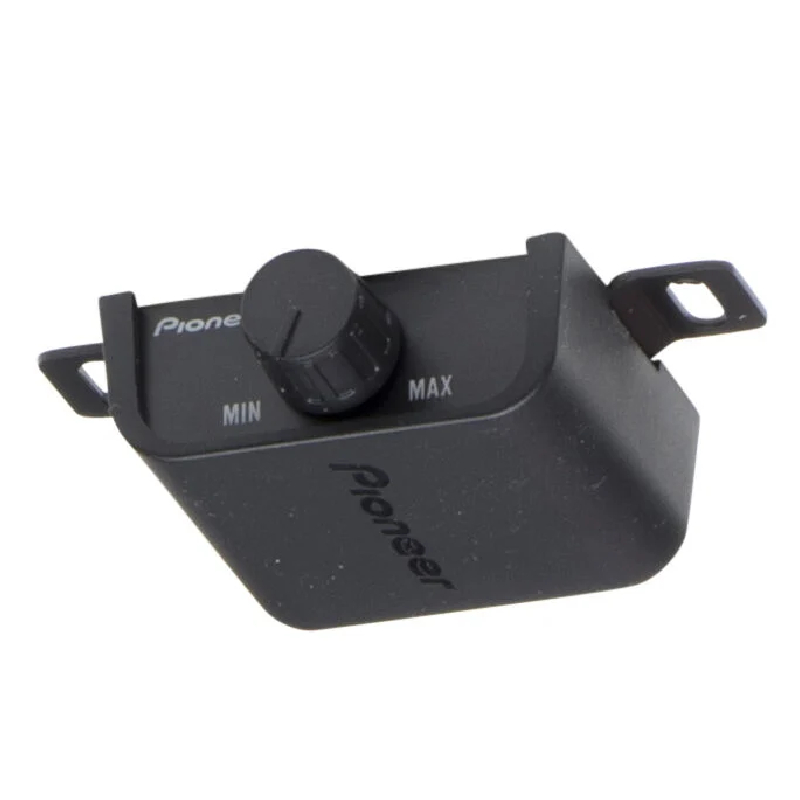

  • • Bass Boost Remote Control
  • • Bass Boost Remote Control Cable
  • • Speaker Level to RCA Input Adapters
  • • (4) Installation Screws
  • • Wire Terminal Tool
  • • 1 Year Warranty Sheet
  • •Owner's manual (English/ French)
Big Power, Small Size

Pioneer’s extra-efficient Class-D amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

Protection Control System (PCS)

Pioneer’s PCS continuously monitors the input voltage, current consumption, and operating temperature to automatically adjust the amplifier’s output to ensure operational stability during long listening sessions or when installed in high-temperature environments.


SPECIFICATIONS


  • Maximum Power : 2400 Watts
  • Number of Channels : 1
  • Frequency Response : 10-240 Hz
  • Amplifier Class : D

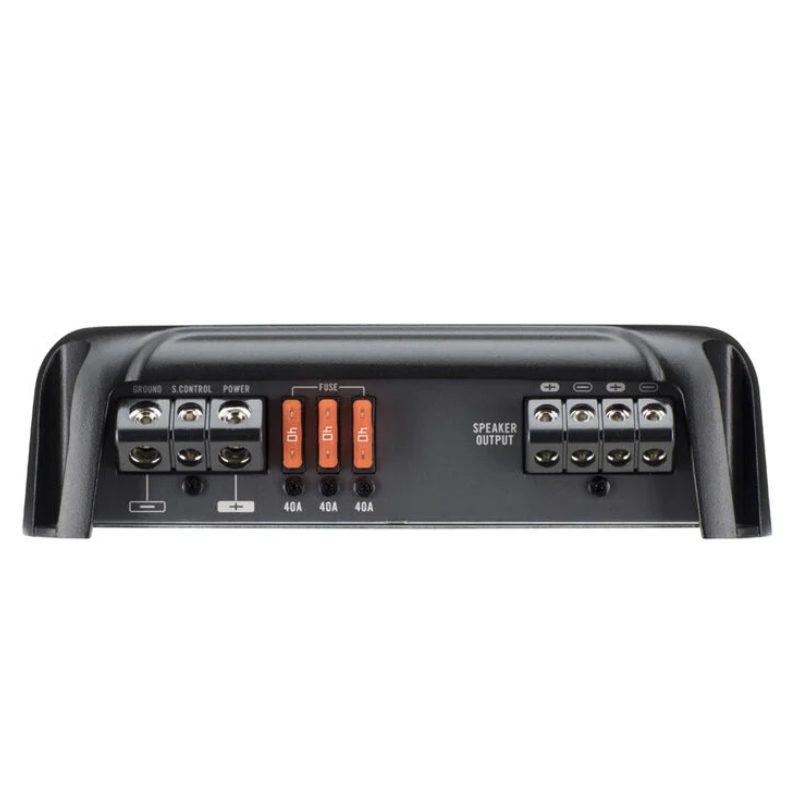

  • Fuse Rating : 40x2 A

FEATURES


Features:

  • Max power output: 2400 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

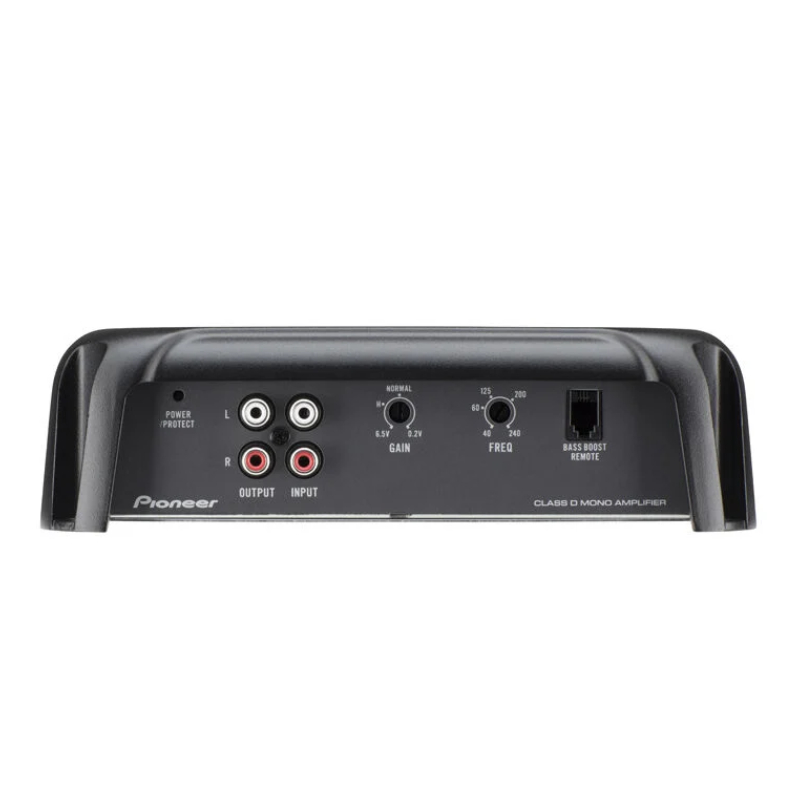

  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (40-240 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-240 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 12-3/8"W x 7-7/8"D x 2-3/8"H
  • 1-year Sonic Electronix Warranty



Specifications:

  • RCA Inputs: MONO
  • Amplifier Class: CLASS-D
  • Hi-Res Certified: No
  • Warranty: 1 Year
  • Speaker Level Input: Yes
  • Fuse Rating: 40A x 2
  • Bass Boost Remote: Yes
  • Automatic Signal Sensing and Turn-On: Yes
  • Hi-Volt Input Level Control: 200 mV to 6.5 V
  • Terminal Type: Block
  • Load Impedance Allowance (Ohms): 1 to 8
  • Protection Control System: Yes
  • Dimensions: 252mm (W) x 60mm (H) x 215mm (D)
  • Continuous Power (RMS) Output: @ 1? 1200W RMS x 1
  • Continuous Power (RMS) Output :@ 2? 800W RMS x 1
  • Continuous Power (RMS) Output :@ 4? 500W RMS x 1
  • Low-Pass Crossover Frequency: 40 Hz
  • Low-Pass Slope (dB/octave): -12dB
  • Bass Boost Frequency: 50 Hz
  • Bass Boost Level: 0 dB to 18 dB
  • Frequency Response: 10 Hz to 240 Hz
  • Total Harmonic Distortion (THD): < 0.5% (100 Hz)
  • Total Harmonic Distortion (THD): < 0.5% (100 Hz)
  • UPC: 0884938421959
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
