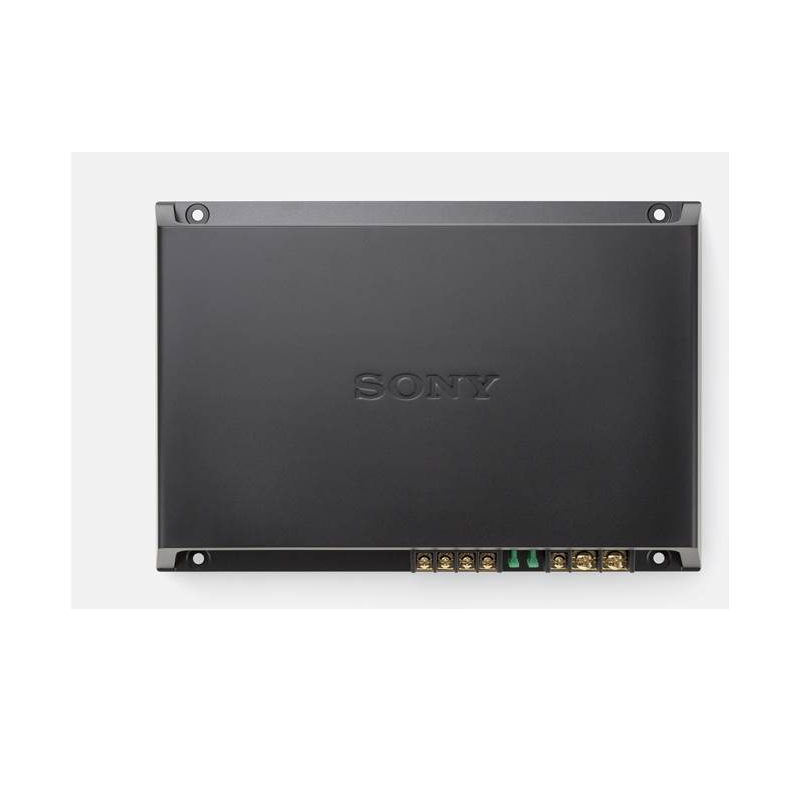

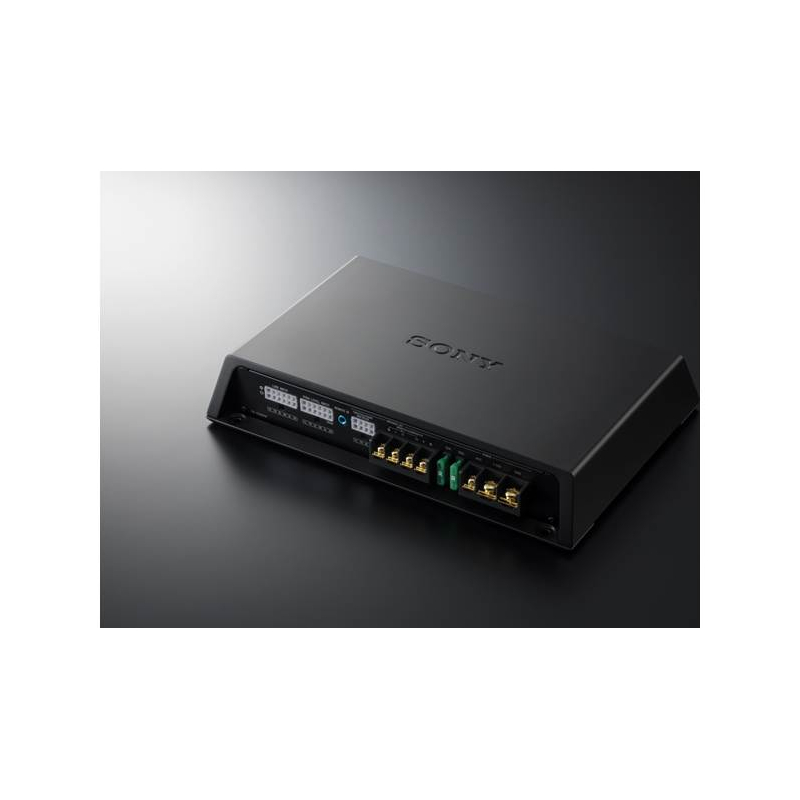

Sony XM-GS6DSP 1500 Watts Max Power Class-D Amplifier with DSP
Onlinecarstereo is an authorized retailer of Sony products. We source our inventory straight from accredited regional distributor so you know you are getting authentic Sony merchandise with all the necessary warranties. We at Onlinecarstereo always strive to provide 100% total customer satisfaction and after-market service.

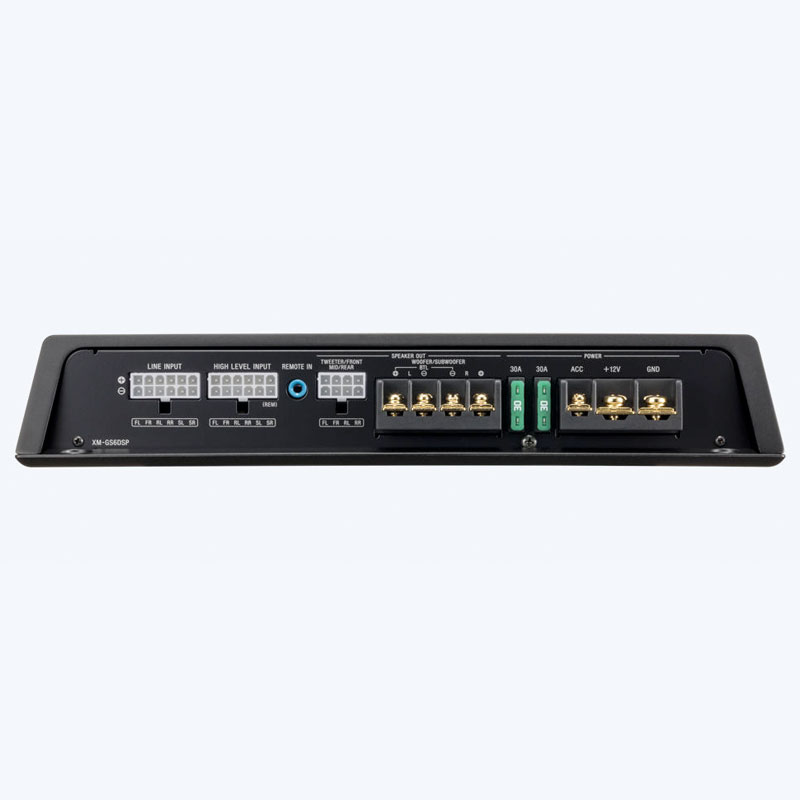

• 6-Channel amplifier with two 30A ATO fuses installed
• 8" Line input harness
• 7" High level input harness
• 5" Tweeter/Front/Mid/Rear output harness
• Terminal cap
• Self-tapping screws (length 3/4")
• Operating Instructions
• Warranty (US + Canada)

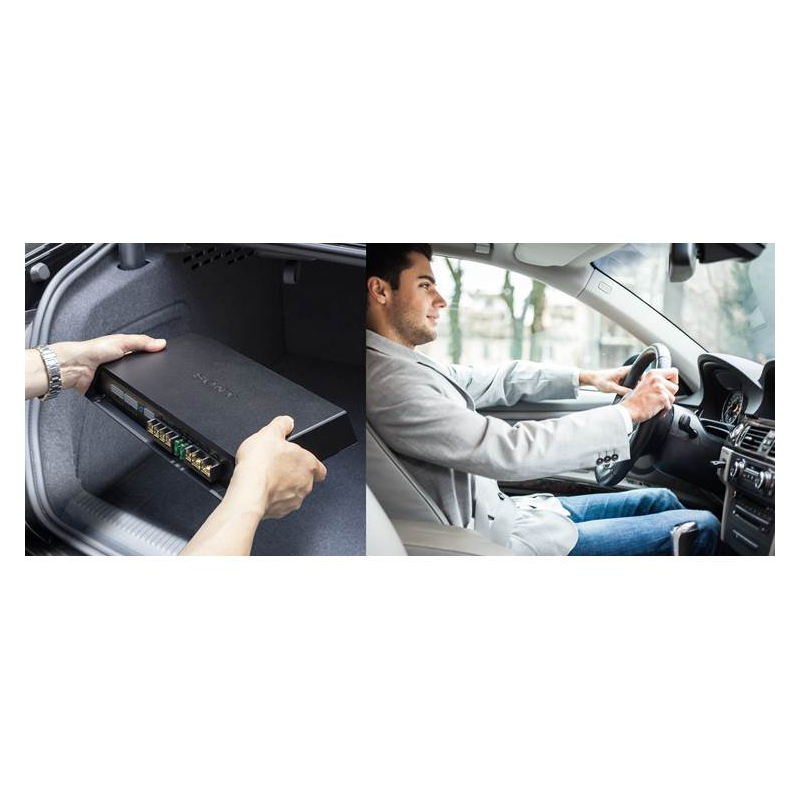

Supercharging your car audio, behind the scenes
This powerful class-D amplifier boosts the sound of your factory-fitted car stereo, without changing the look of your dashboard. Transform in-car sound with up to 780W RMS (1500W max) of total power. Control speaker setup, time alignment and sound settings. Personalise from your smartphone using Sony I Music Centre.
Time Alignment optimises sound for every seat
Wherever you sit in your car, you’ll be closer to some speakers than others, which affects how the music sounds. Time Alignment re-calibrates the signal so you’re always in the correct sound field for a more natural listening experience.

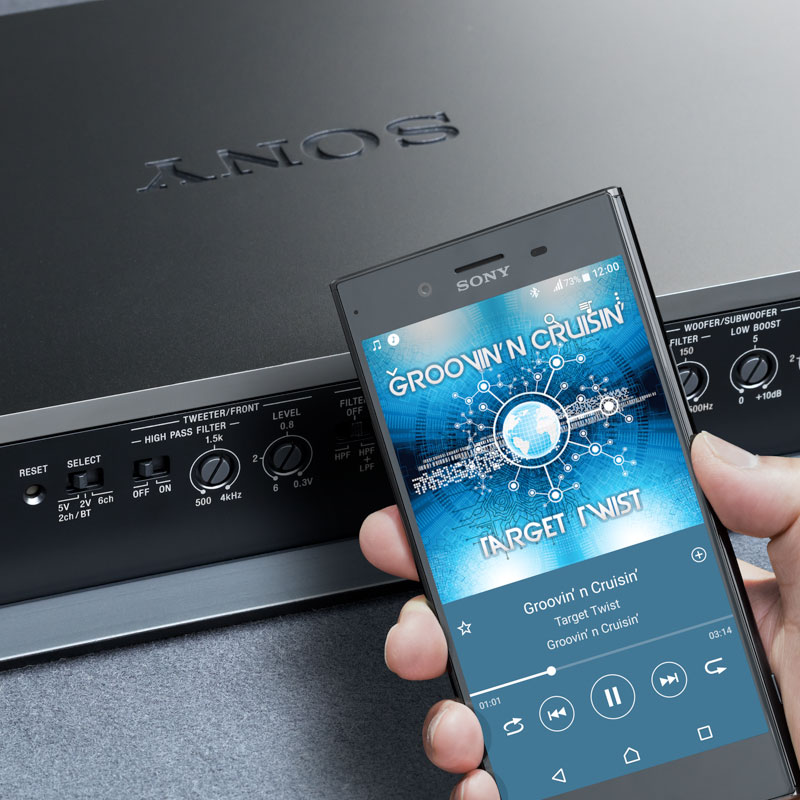

Customisation at your fingertips
Pair your smartphone with the XM-GS6DSP and take charge of the sound. Adjust equaliser and speaker settings, volume levels and fader controls from the comfort of your seat with a simple touch of your smartphone screen.

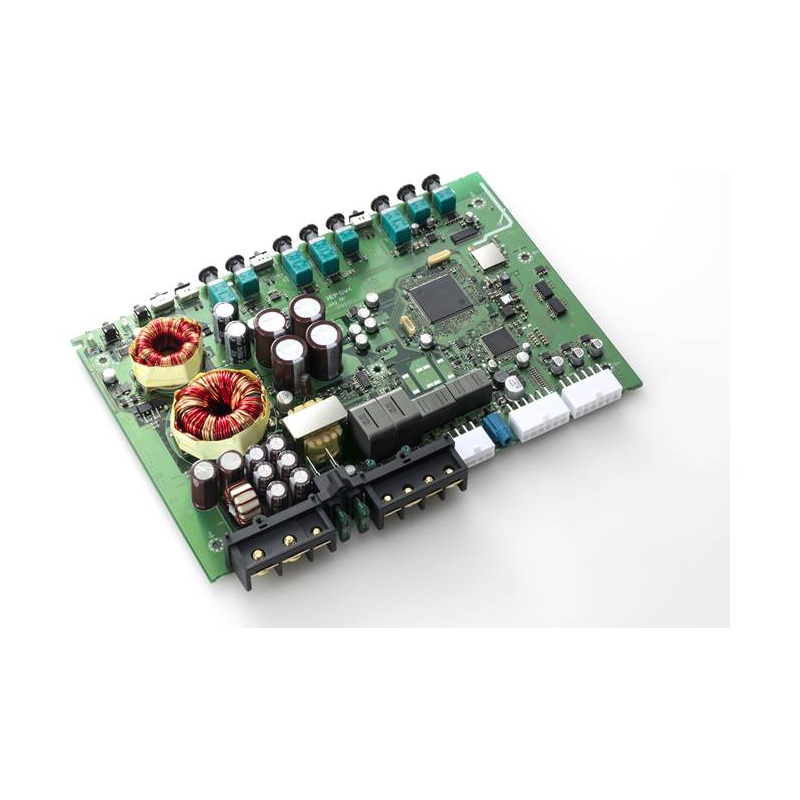

Power meets precision
With 6 channels of class-D amplification, the XM-GS6DSP drives a variety of speaker configurations. Fill your car with 45Wx4 (4Ω) of clean and dynamic sound plus 600W (2Ω bridged) of subwoofer power. All from a compact amp, with minimal interference for audio that’s crystal clear, even at its loudest.
Maximum Power : 780 Watts
Low Frequency Response : 500-4000 Hz
High Frequency Response : 500-4000 Hz
Number of Channels : 6
Frequency Response : 20-20000 Hz
Built In Crossovers : Yes
RMS Power Output : 45x4 Watts
Channel Separation : Yes
Amplifier Class : D
Fuse Rating : 60 A
6-Channel Amplifier with Digital Signal Processor and Bluetooth
Up to 780W RMS

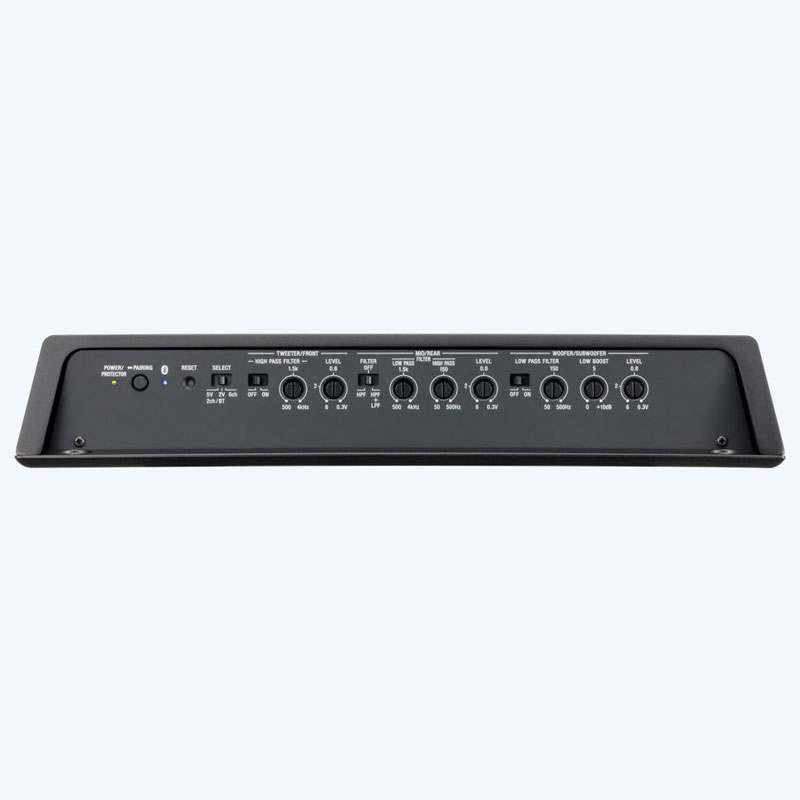

DSP with 4.1-channel time alignment
Stream music directly to the amplifier with BLUETOOTH® wireless connection and the app Sony I Music Center
Personalize audio settings with your smartphone using Sony I Music Center
175W × 2 @ 2 ohms (SUB) at 1 kHz, 600 W × 1 @ 2 ohms (SUBWOOFER bridged) at 1 kHz
45 W × 4 @ 4 ohms (FRONT/REAR), 90 W × 2 @ 4 ohms (SUBWOOFER)
digital signal processing control via Sony Music Center app on your Bluetooth device
controls include 10-band EQ, time alignment, speaker level, fade
Bluetooth streaming from your compatible device
RMS Power Output (Watts x Channels): 45 x 4 /350 x 1
Peak Power Output (Watts x Channels): 100 x 4
Power at 2 Ohms (Watts x Channels): 175 x 2
Bridged Power (Watts x Channels): 600 x 1
Minimum Impedance Bridged: 2
Minimum Impedance Unbridged: 4
Minimum Impedance: 4
Best Frequency Response: 20-20k Hz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 83 dB
Input Voltage: 14.4v
