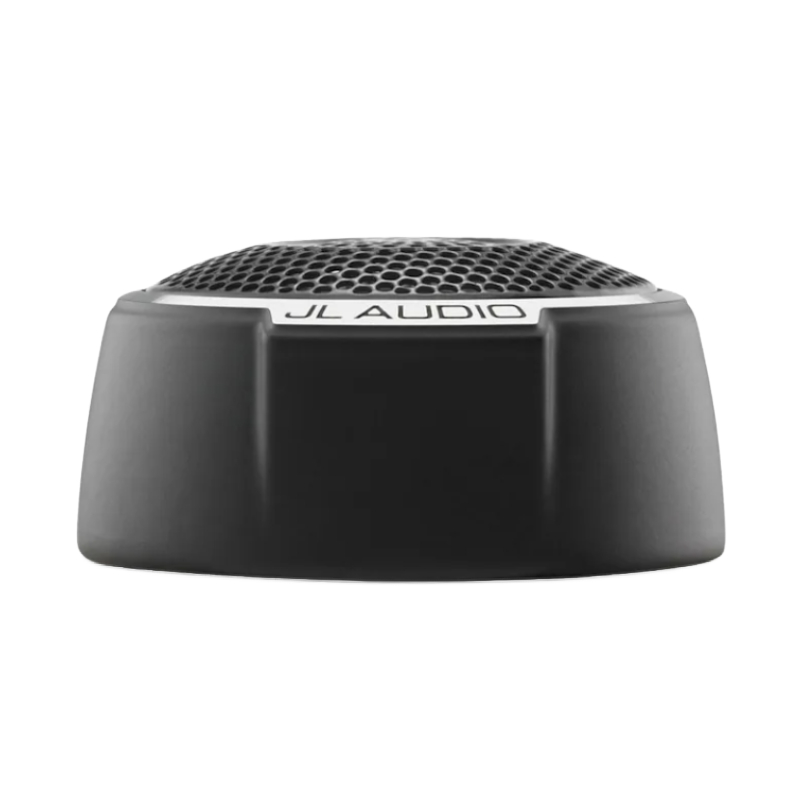

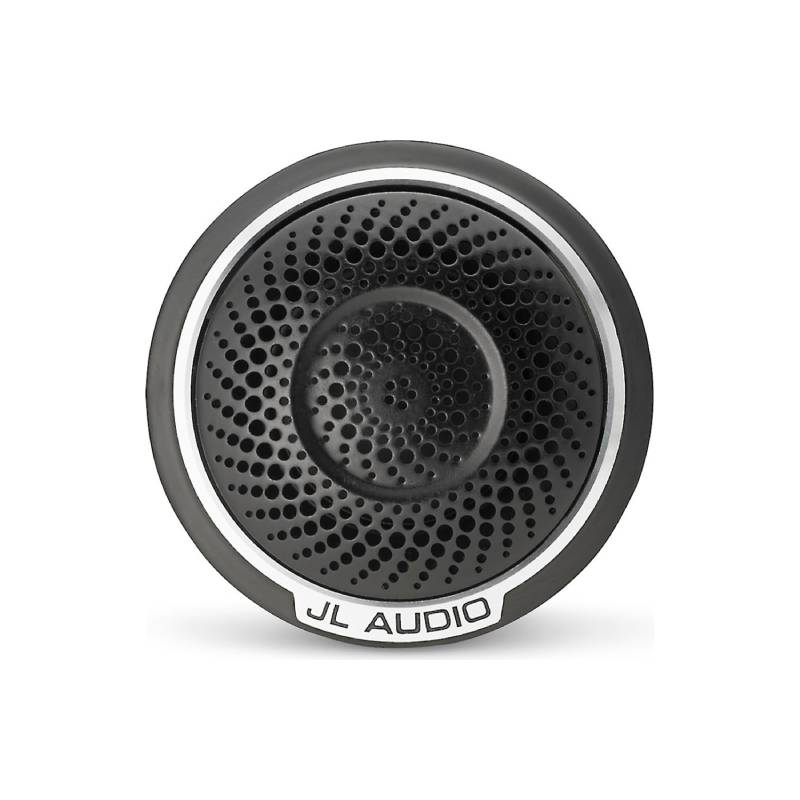

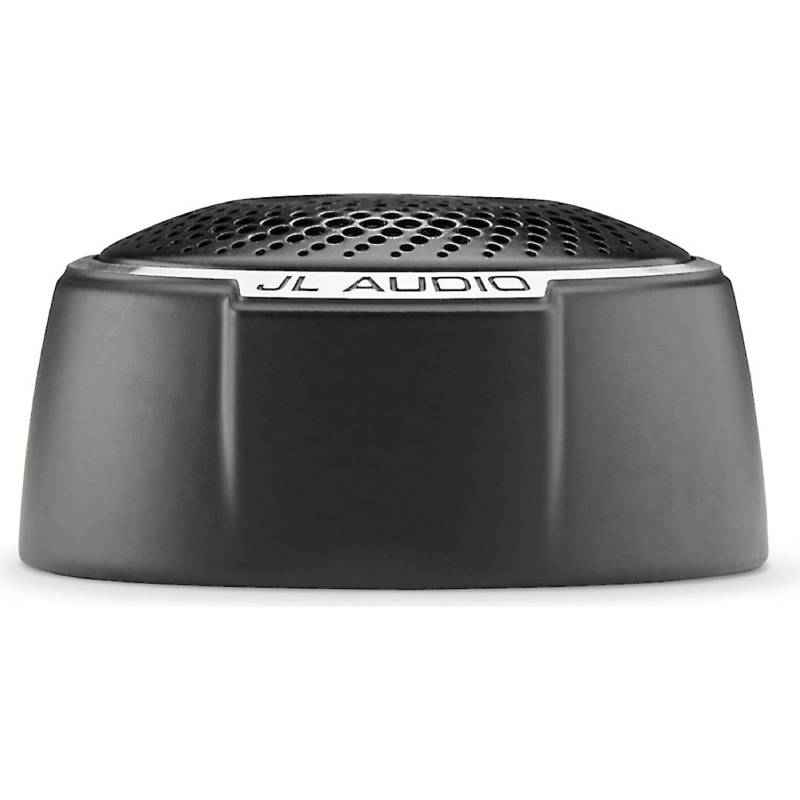

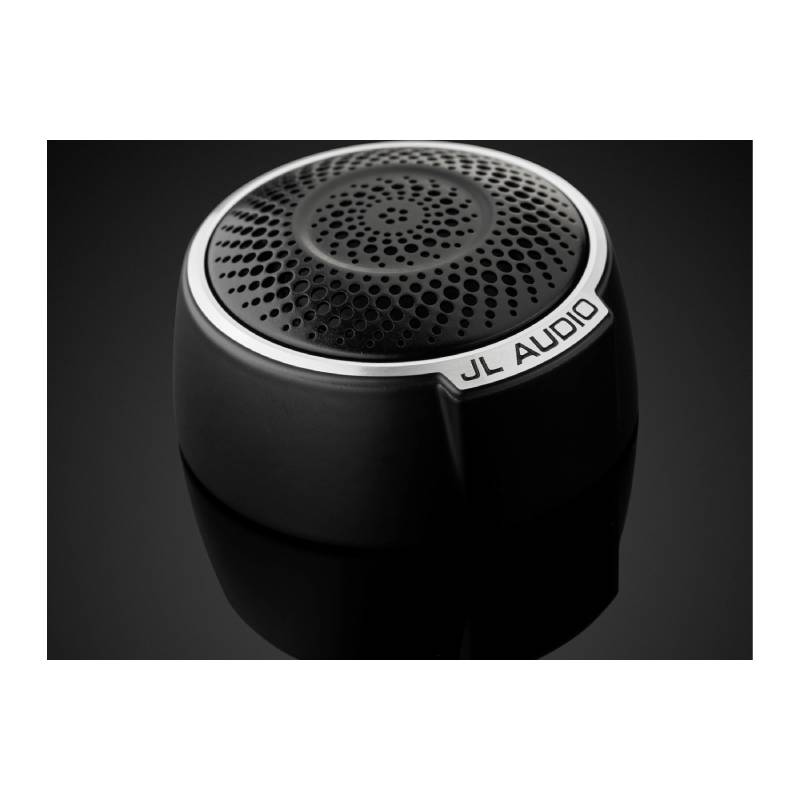

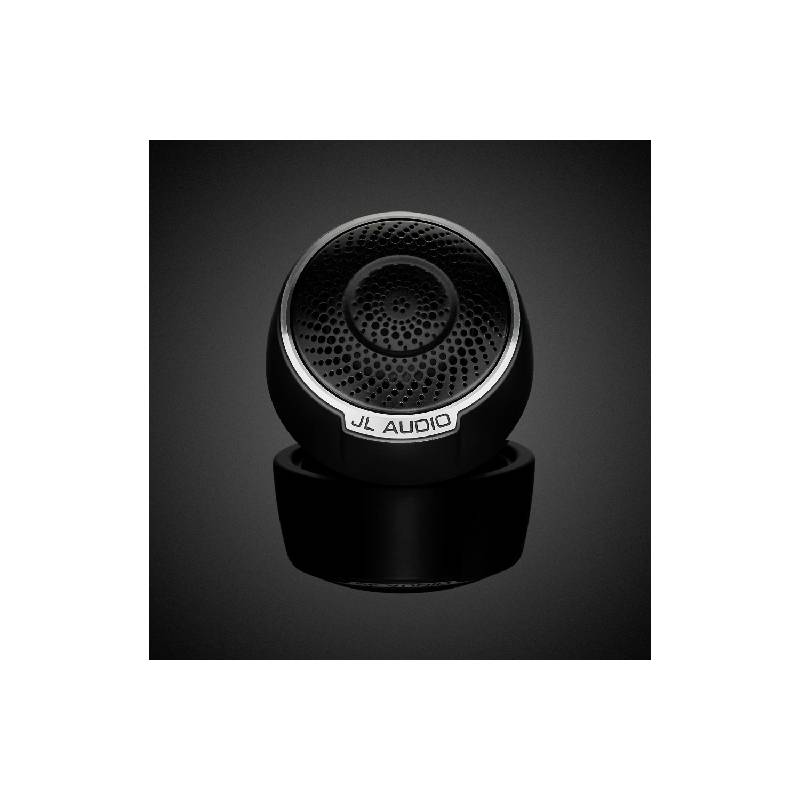

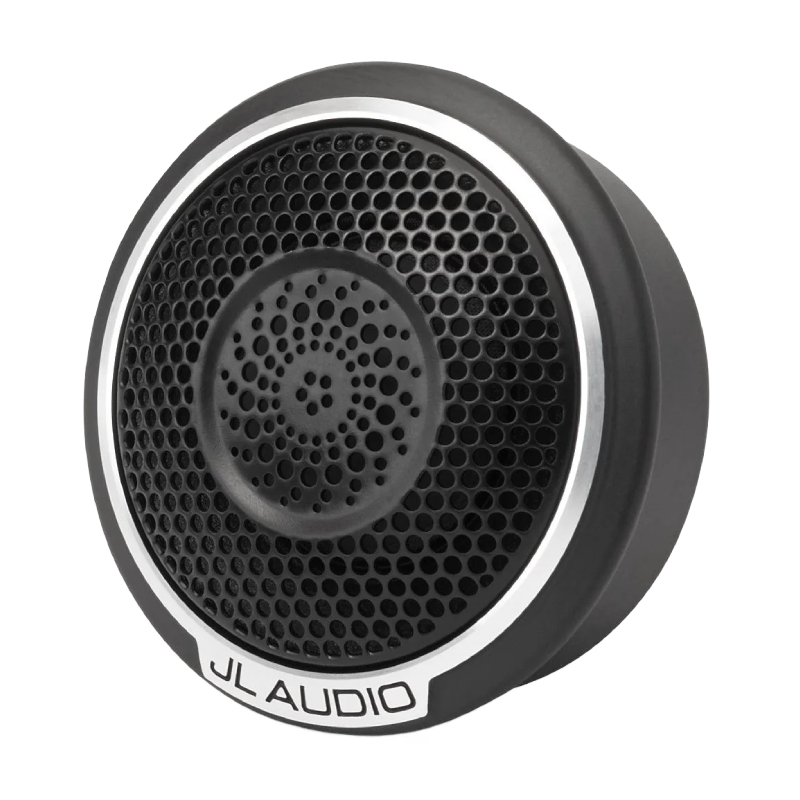

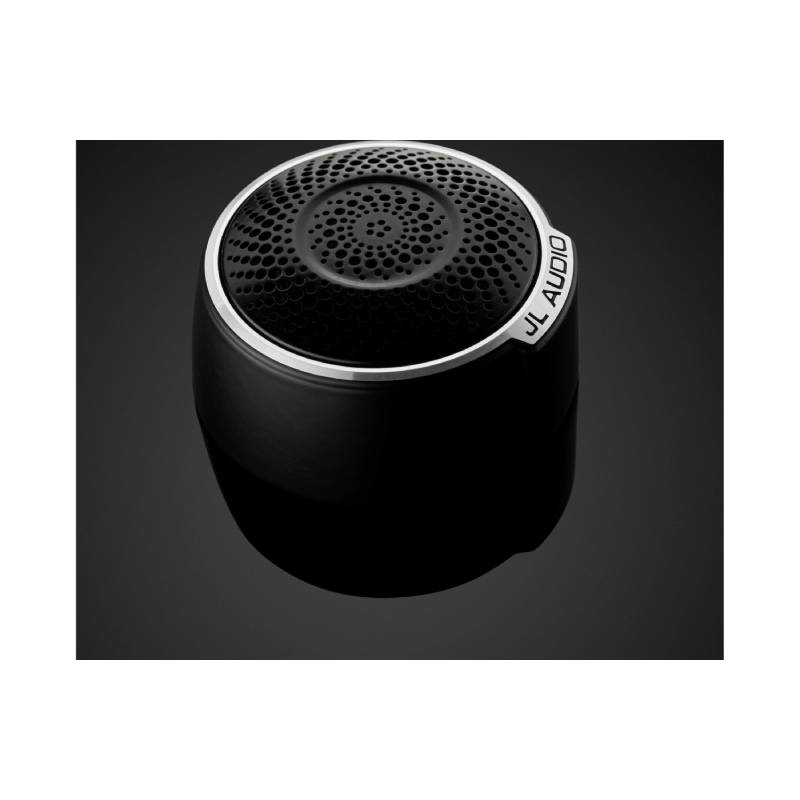

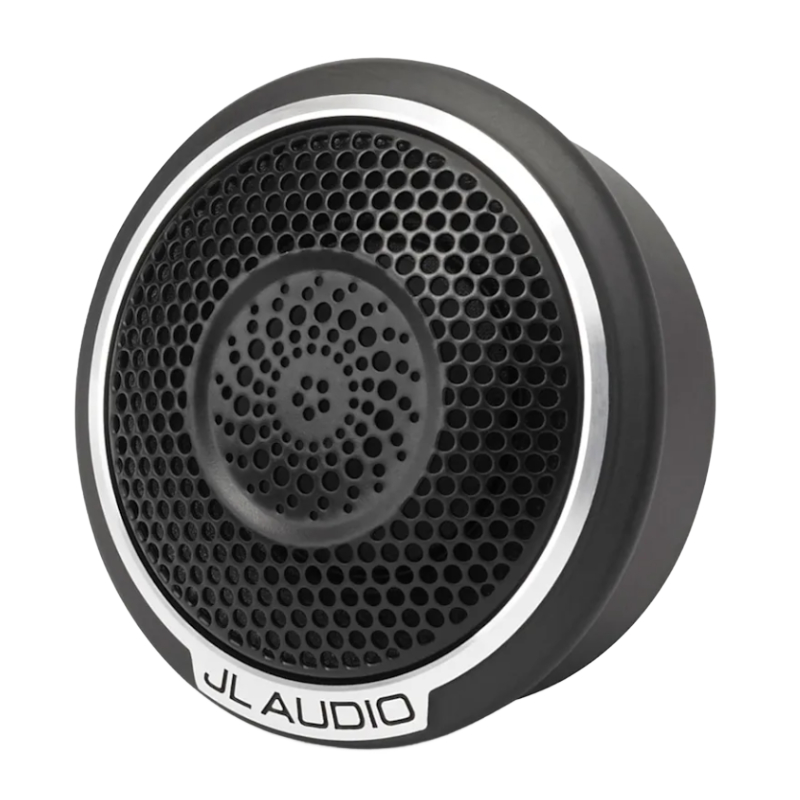

The C7-100ct component tweeter is designed to deliver unparalleled high-frequency performance. Utilizing a corundum ceramic-coated aluminum alloy diaphragm suspended via a treated silk, s-roll surround, it provides spectacularly detailed reproduction of treble frequencies with outstanding off-axis response. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors.
Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK® 88 or D8, or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.
Corundum ceramic coated aluminum alloy diaphragm exhibits high stiffness, very low mass and excellent environmental stability. It also helps the tweeter dome to hold its shape and operate as a true piston at higher frequencies, without a penalty in moving mass.
The diaphragm's motion is centered, sprung and damped by a treated silk, s-roll surround. Ferrofluid in the magnetic gap acts as a rear suspension element in this design. The two combine to provide optimum damping without unduly restricting excursion.
Motor & Acoustical Design
The C7-100ct employs a high-density magnetic circuit with a neodymium magnet and U-Yoke motor topology. An under-hung voice coil is employed, wound with copper-clad aluminum wire onto an aluminum voice coil former. Motor magnetics have been precisely optimized utilizing advanced FEA tools to lower even order distortion and IMD/AMD.
The shape of the tweeter housing is designed to boost sensitivity in a very specific bandwidth, helping to flatten the frequency response. It also provides improved control of directivity.
Diameter : 1 Inch
Sensitivity : 89.5 dB
Frequency Response : 3-3000 Hz
Peak Power Handling : 200 Watts
Shallow Mount : No
RMS Power Handling : 100 Watts
Continuous Power Handling (RMS): 100 W
Peak Music Power: 200 W
Recommended Amplifier Power (RMS): 50 - 150 W / Ch.
Nominal Impedance: 4 Ω
Frequency Response: 3 kHz - 30 KHz ± 3 dB
Voice Coil Resistance (Re): 3.20 Ω
Free Air Resonance (Fs): 1450 Hz
Reference Efficiency (no): 0.267%
86.5 dB @ 1W / 1m
92.5 dB @ 1W / 0.5m
Sensitivity: 89.5 dB @ 2.83V / 1m
