JL Audio C3-600 Convertible Component/Coaxial Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600 expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.

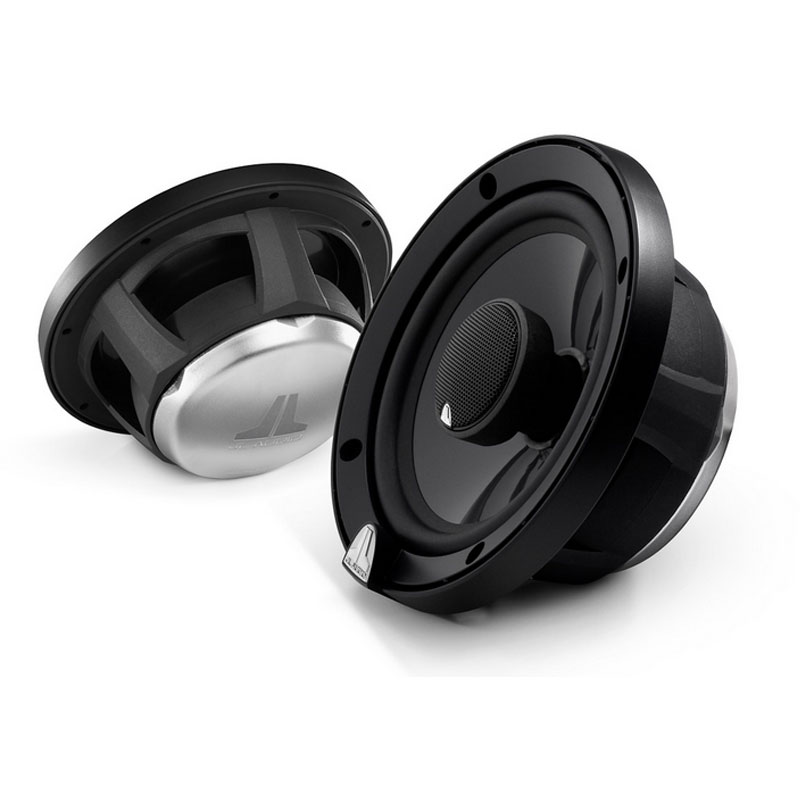

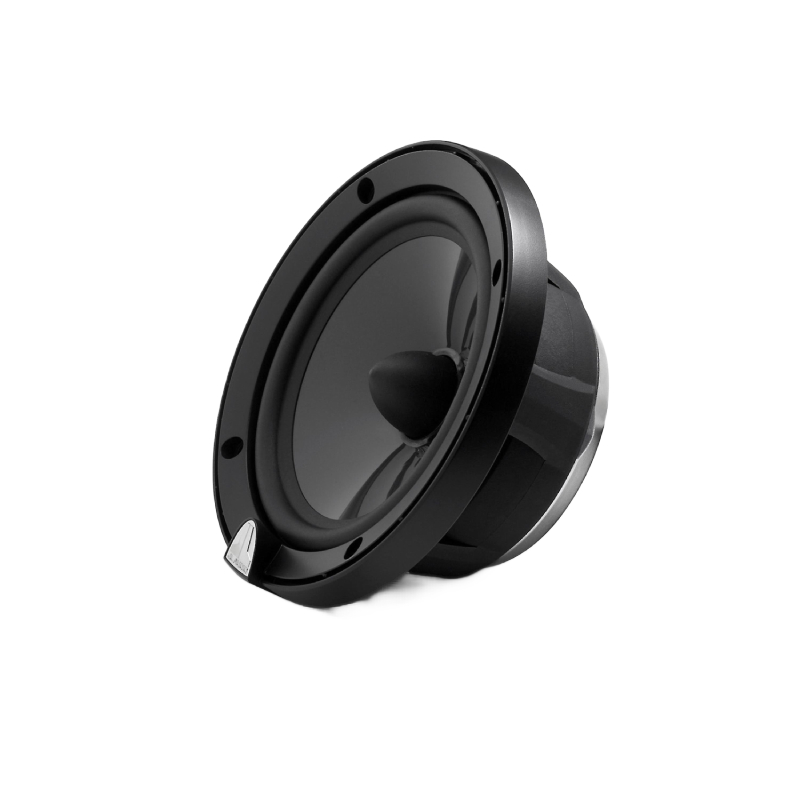

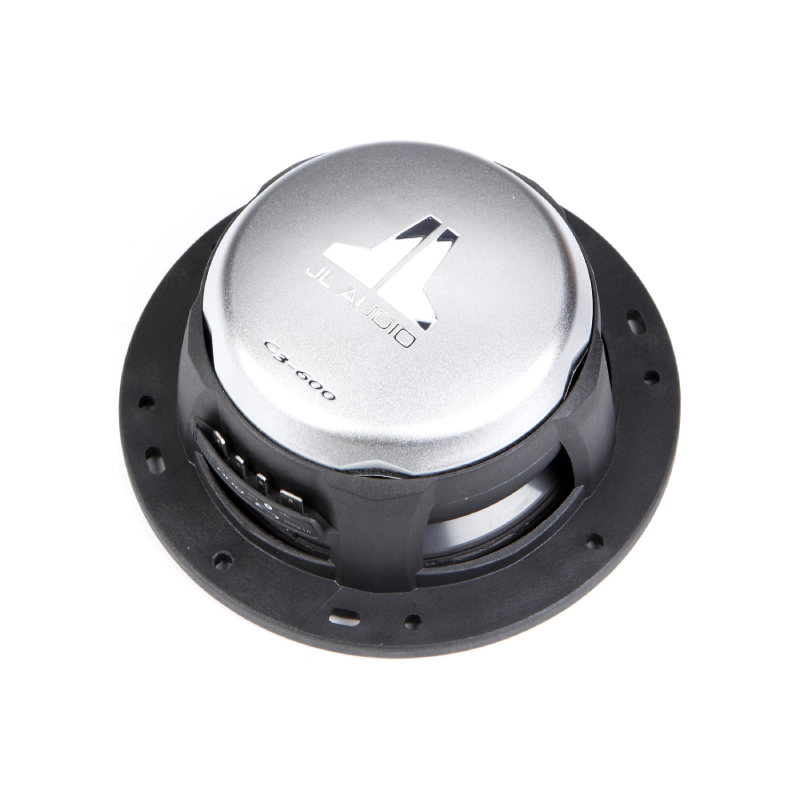

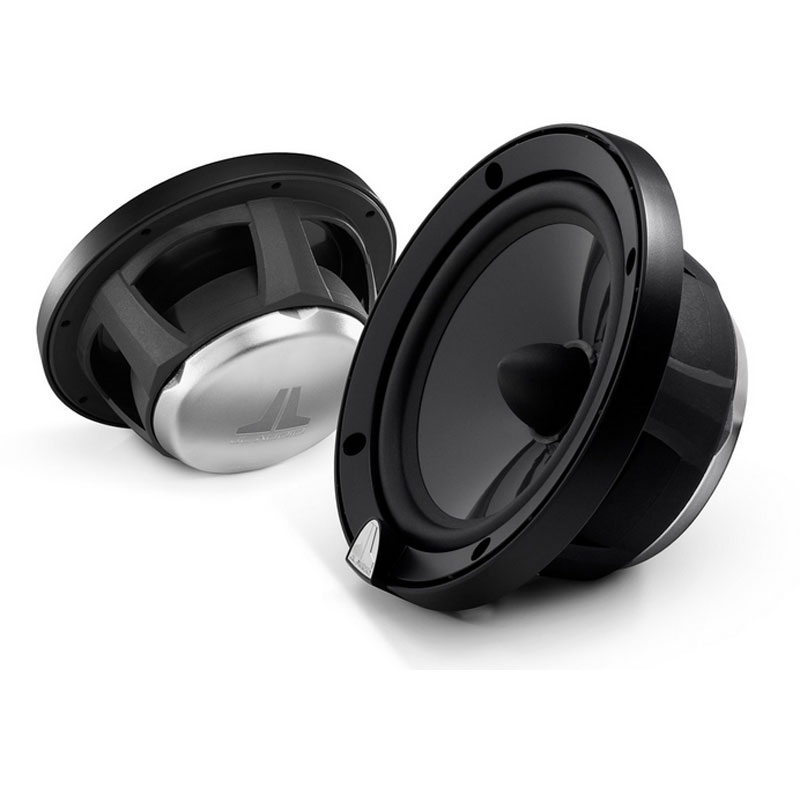

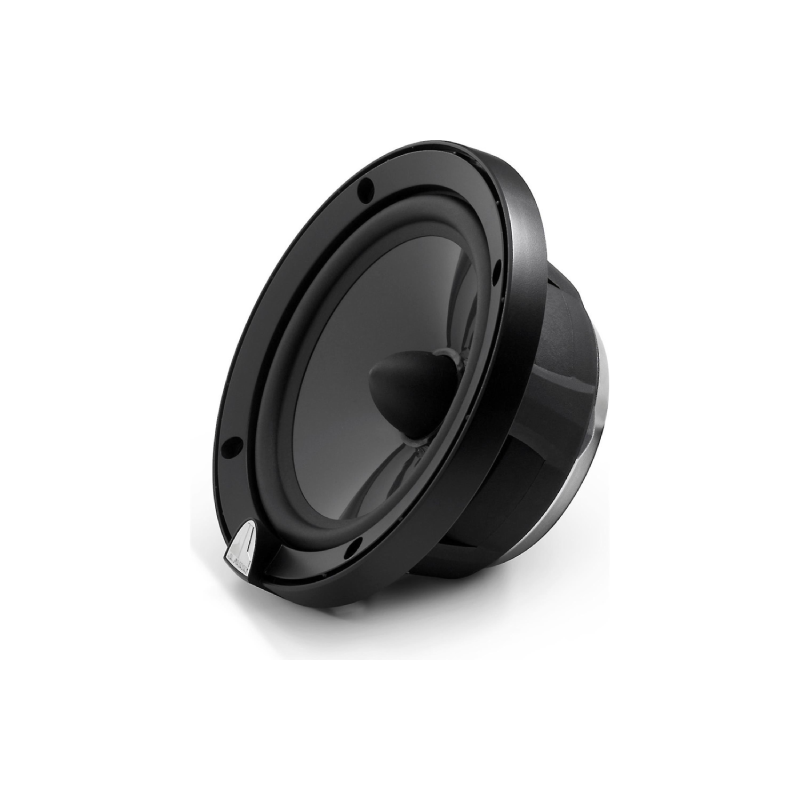

The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

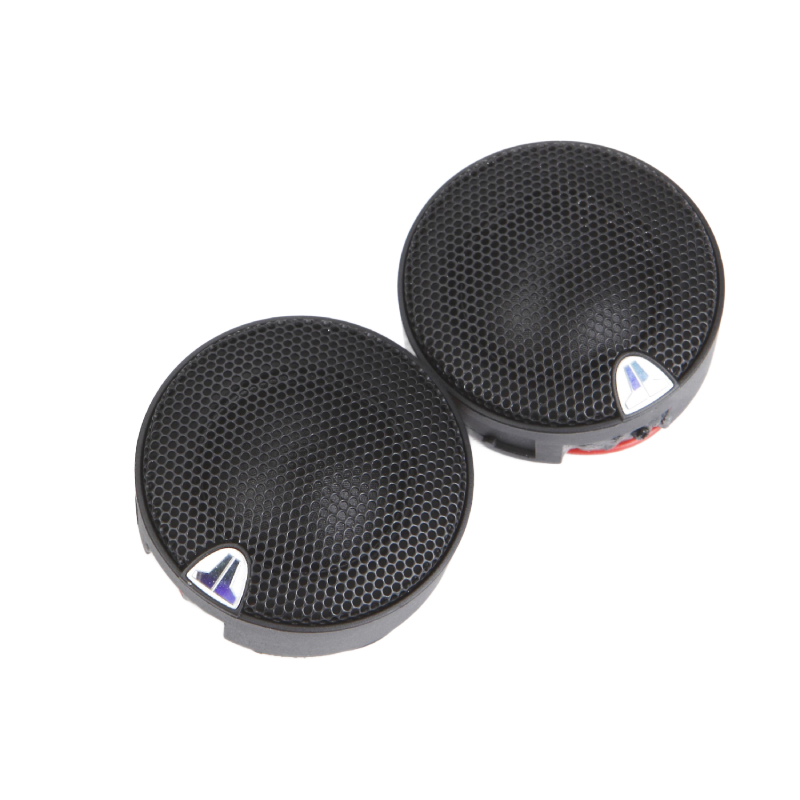

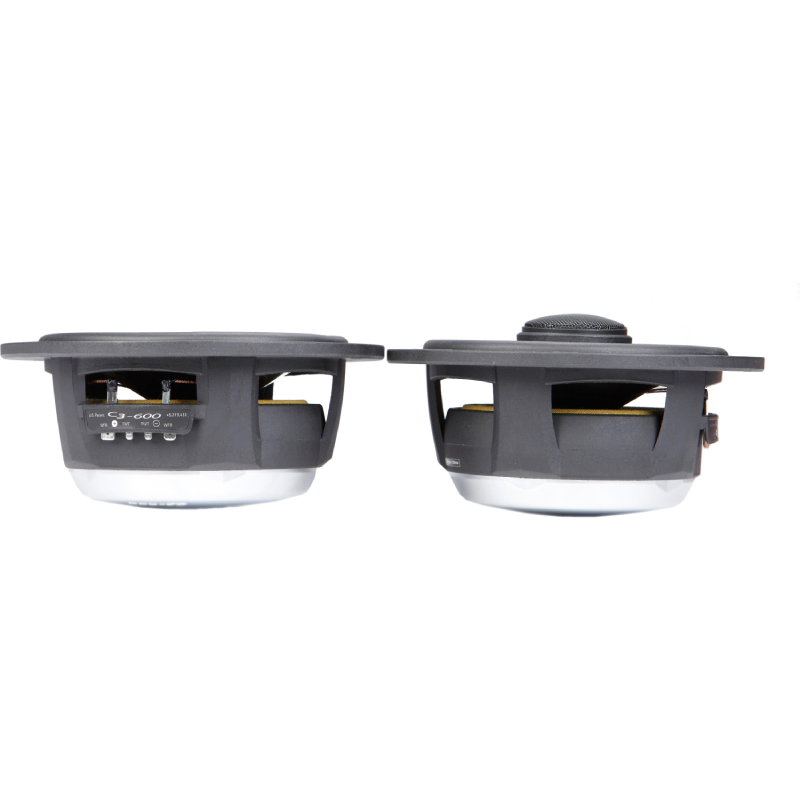

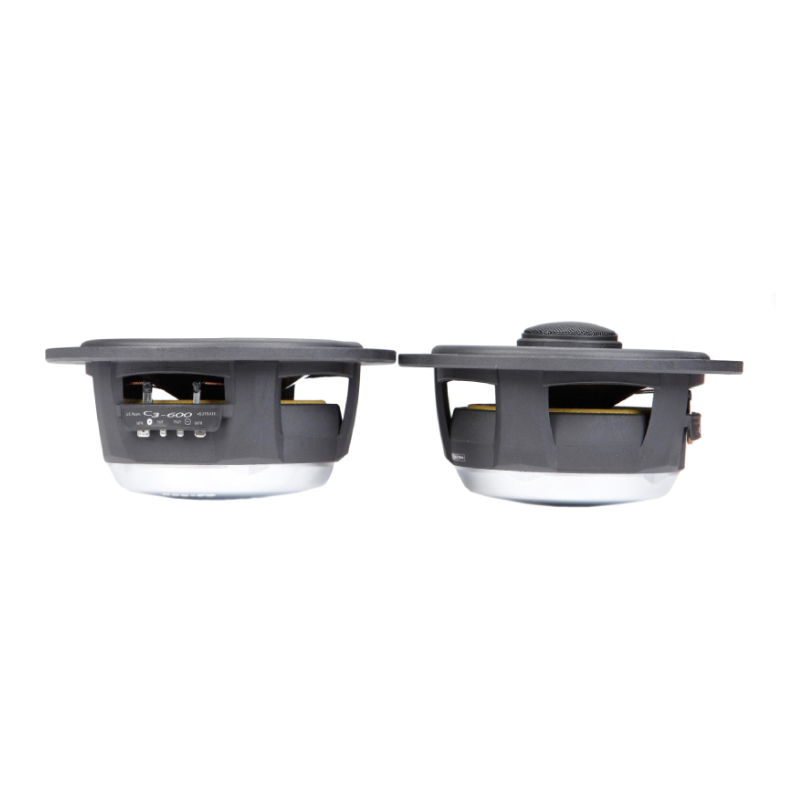

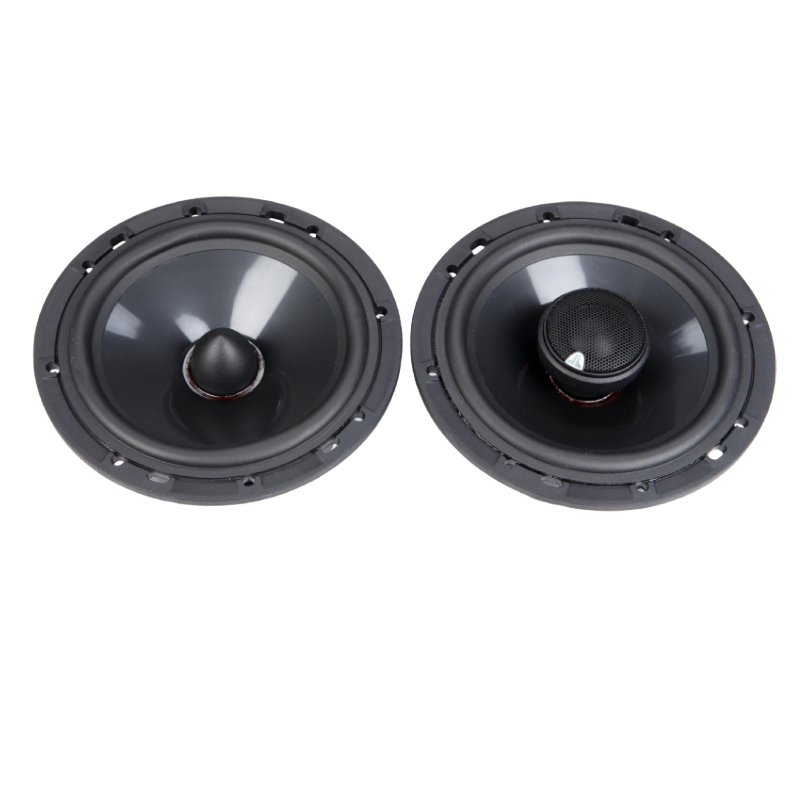

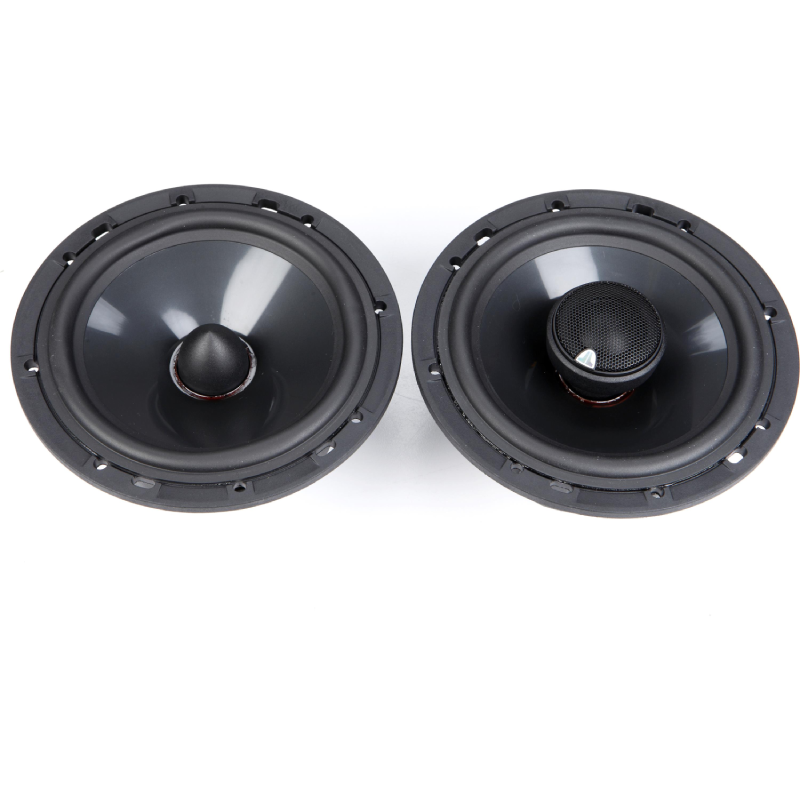

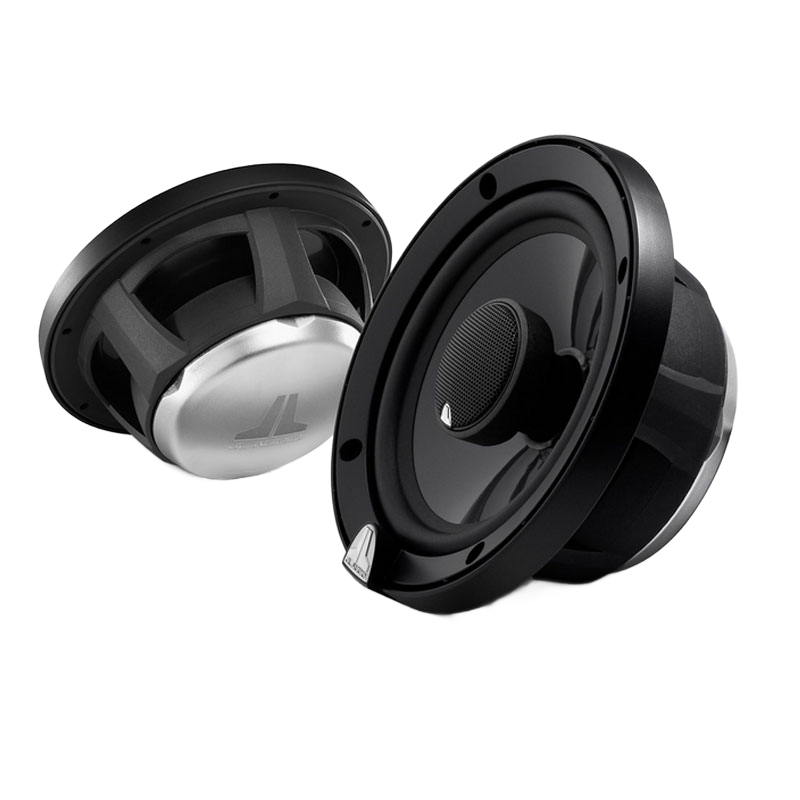

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

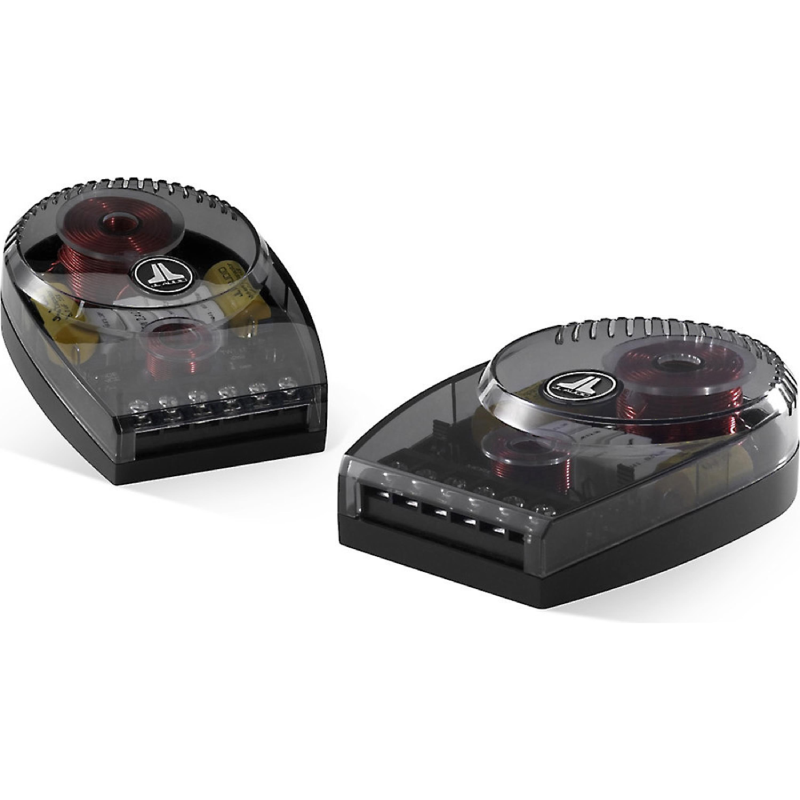

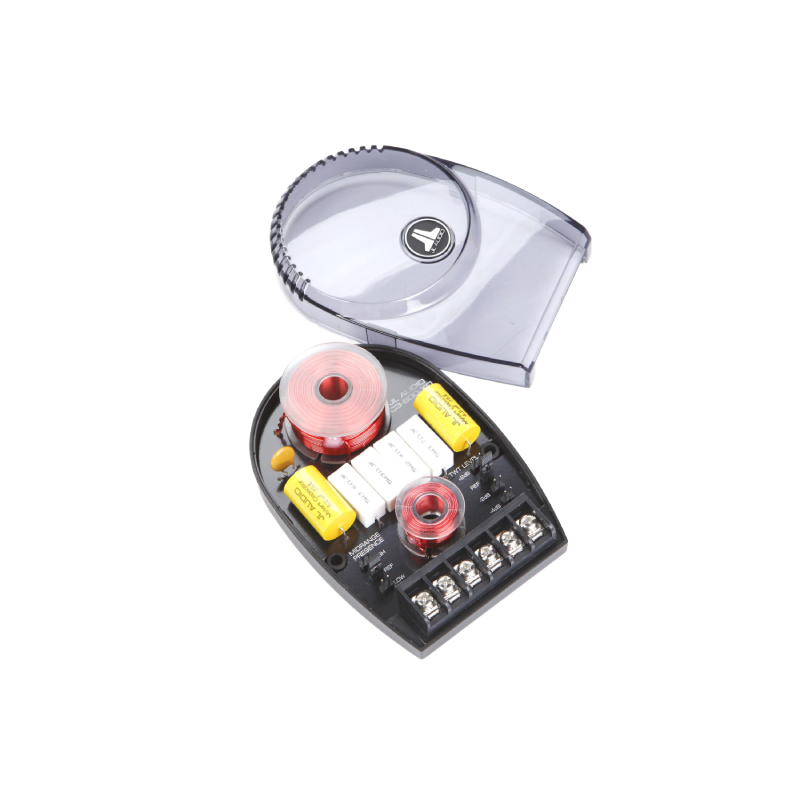

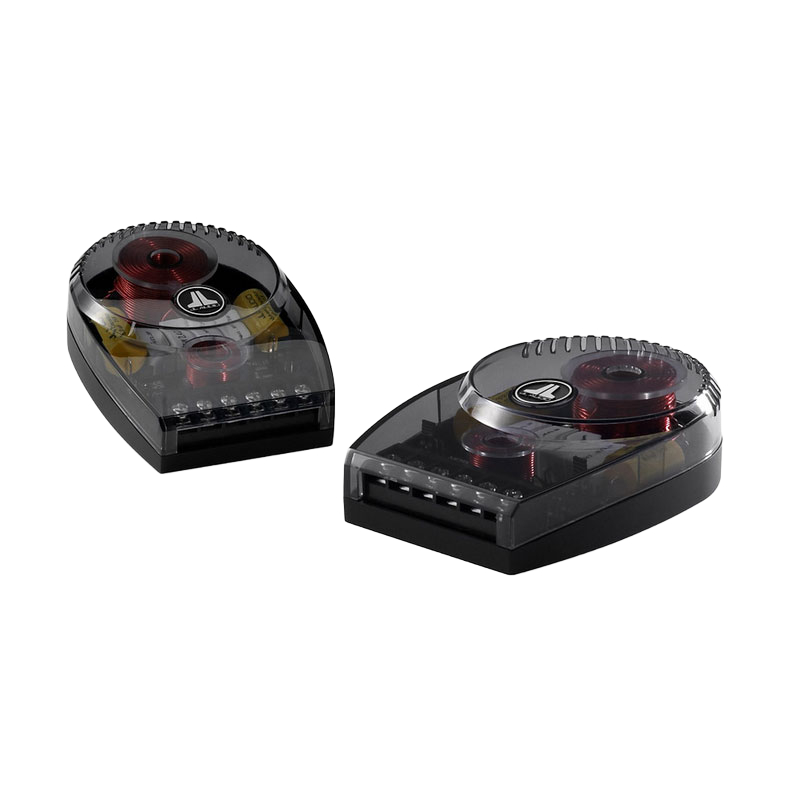

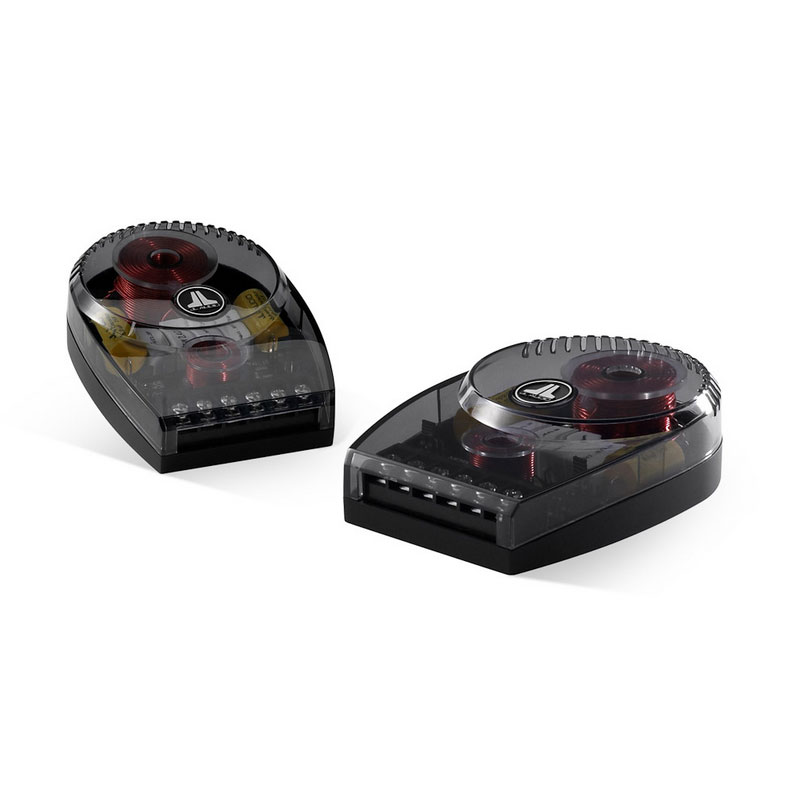

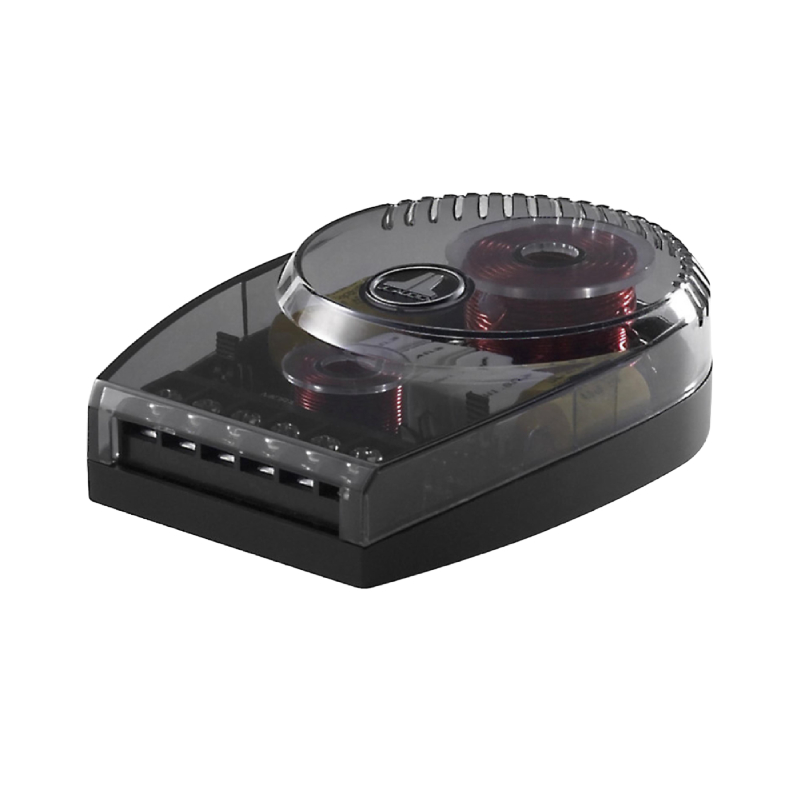

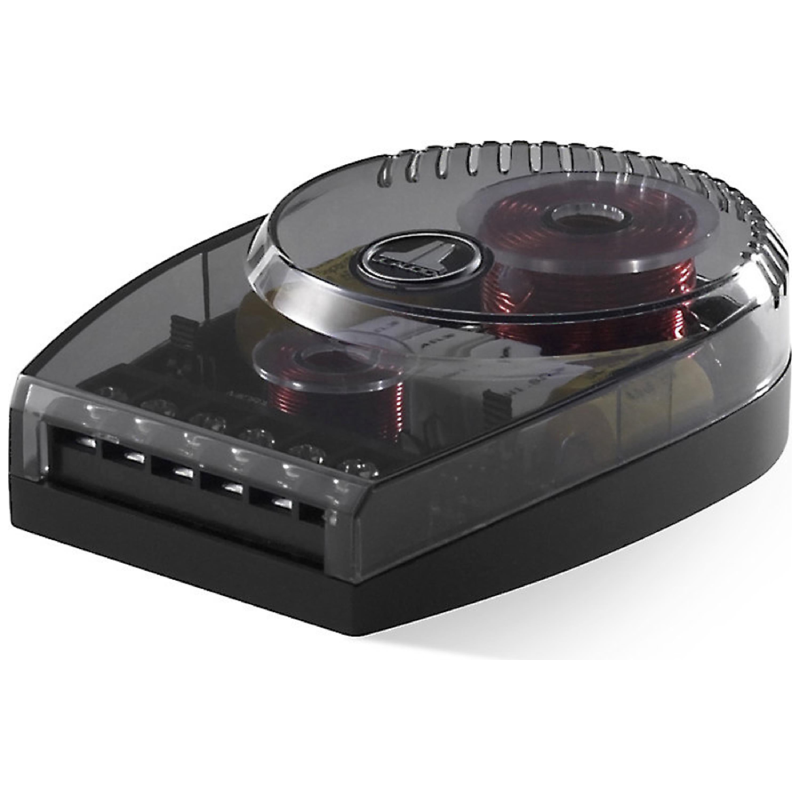

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

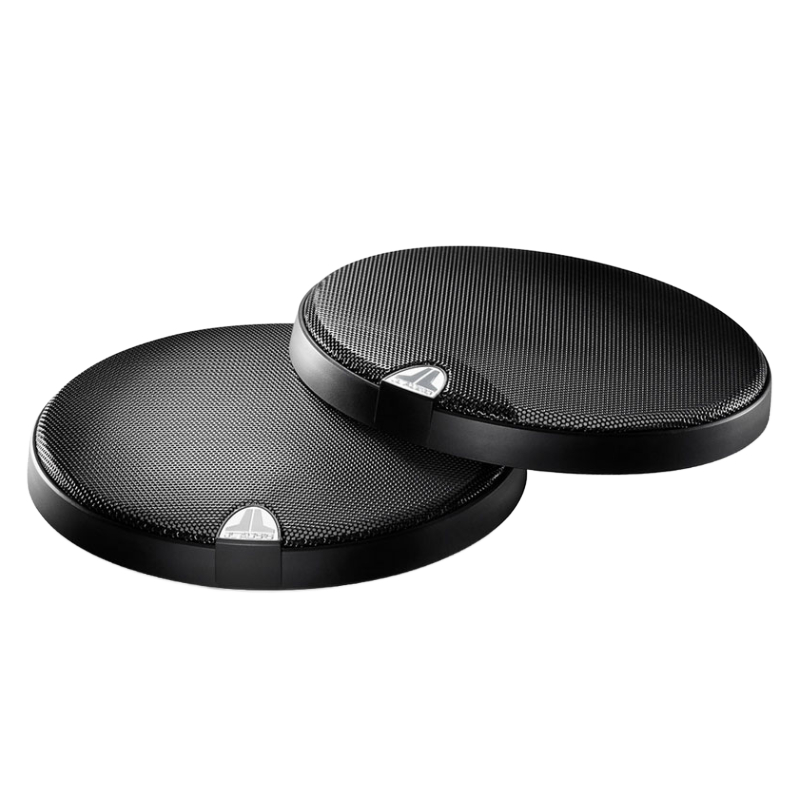

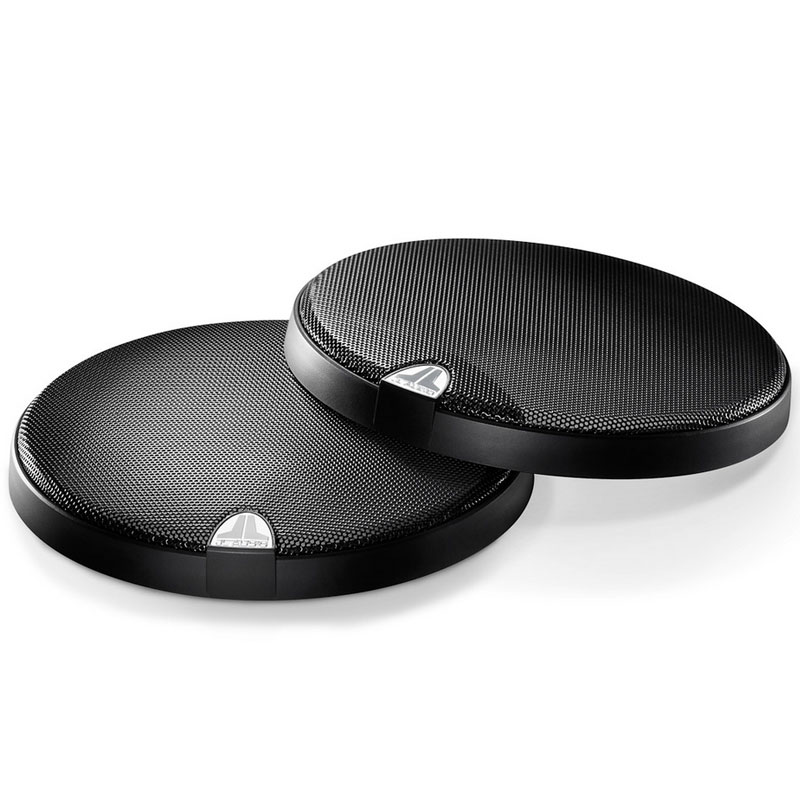

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Diameter : 6.5 Inch
Sensitivity : 89.5 dB
Frequency Response : 50-25000 Hz
Peak Power Handling : 225 Watts
Shallow Mount : No
RMS Power Handling : 75 Watts

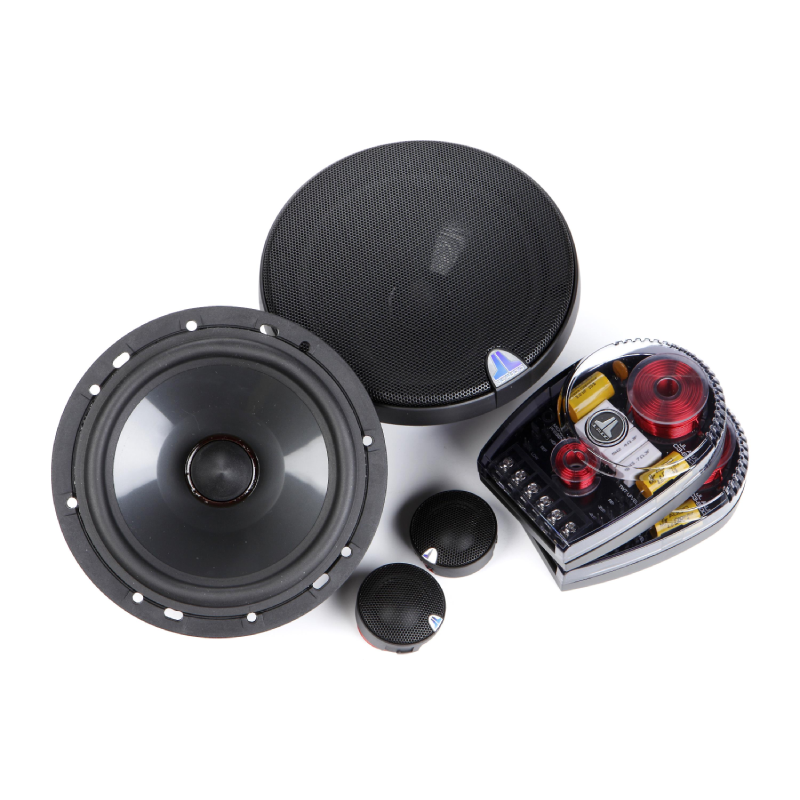

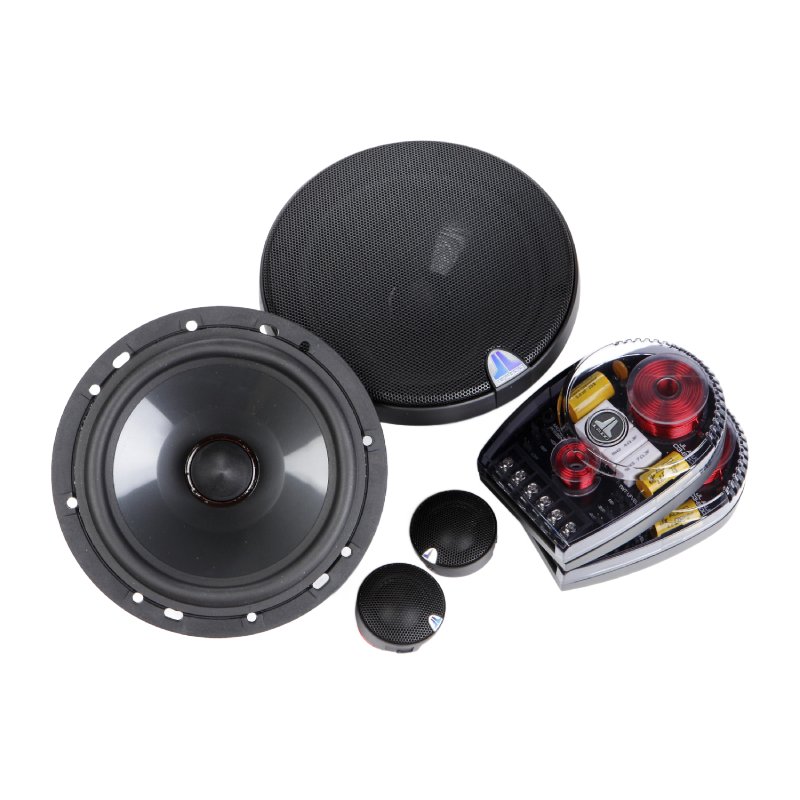

component speaker system includes two 6-1/2" woofers, 2 tweeters, two external crossovers, and two woofer grilles
mica-filled polypropylene woofer with butyl rubber surround
glass-filled polymer frame with Elevated Frame Cooling
1" silk dome tweeter
2-way external crossover with adjustments for coaxial or separate tweeter placement, and 4-position tweeter level
tweeter mounts for separate or coaxial installations included
phase plug provided when tweeter mounted separately
power range: 25-75 watts RMS (225 watts peak)
frequency response: 50-25,000 Hz
sensitivity: 89.5 dB
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
I replaced C2's with these and added two pairs of the 5.25". Each speaker receives 175RMS from bridged Kicker 350.4. After conservative break in with sine sweep cycles, they kick some serious ass. Occasionally the cross over shuts down (built in protection yay!) but that only happens during extended extreme full range volume time lengths. Rather expensive, but you do get what you pay for. I will upgrade my amps to JL.
Bought these to upgrade the door speakers in 2004.5 Dodge Ram. What a huge improvement. With a good head unit and a small amp, these sound fantastic. Very pleased with purchase.
you get what you pay for JL is a brand that speaks for itself ??
