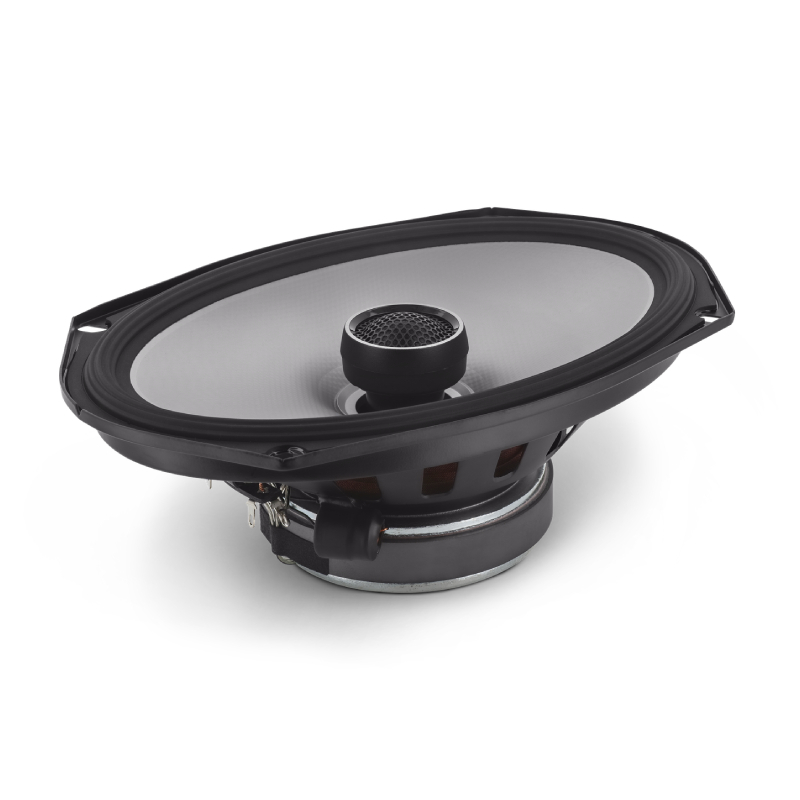

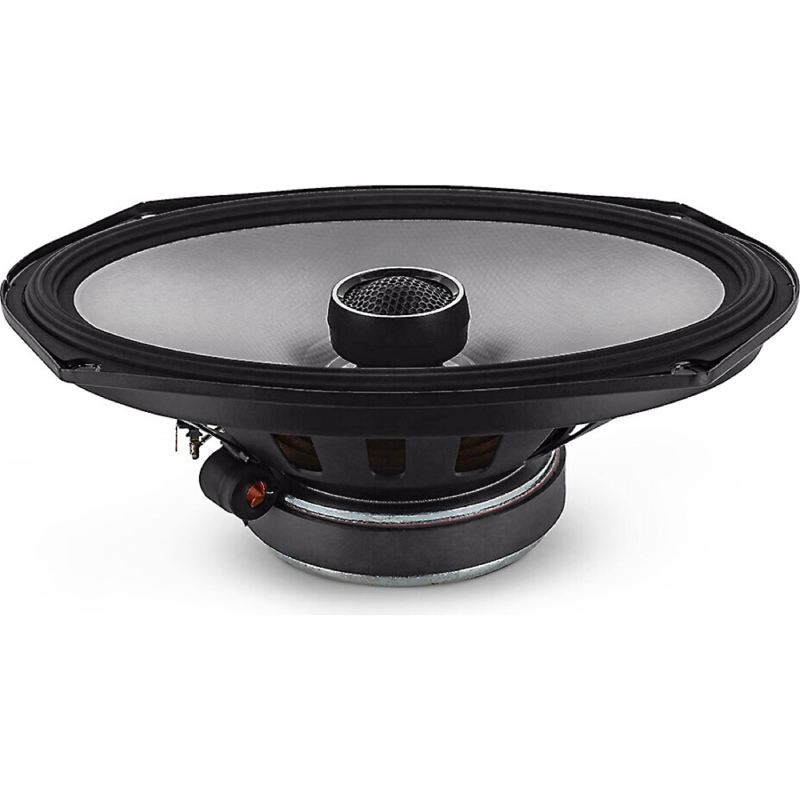

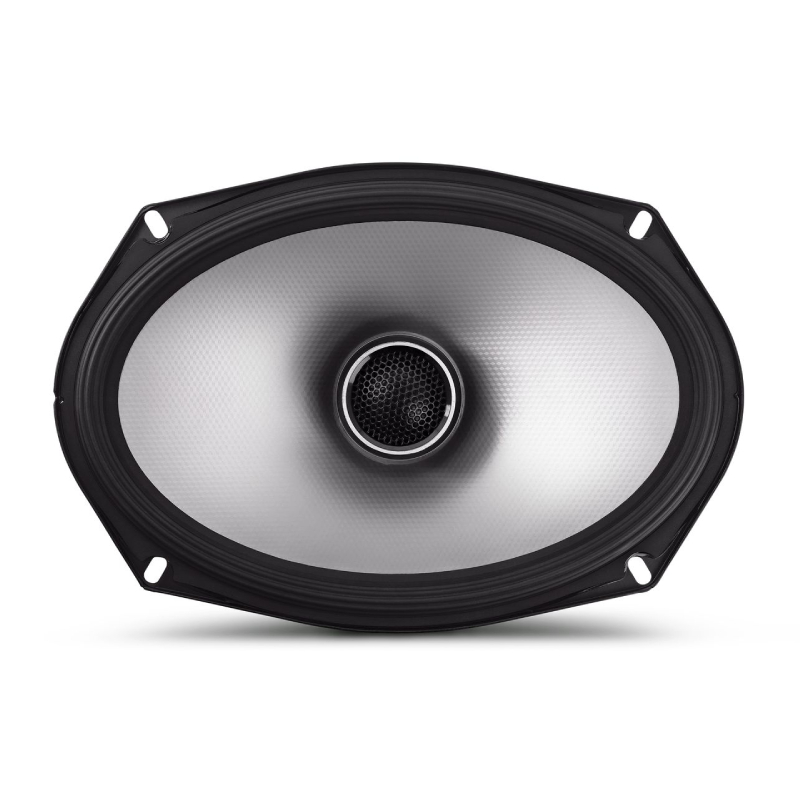

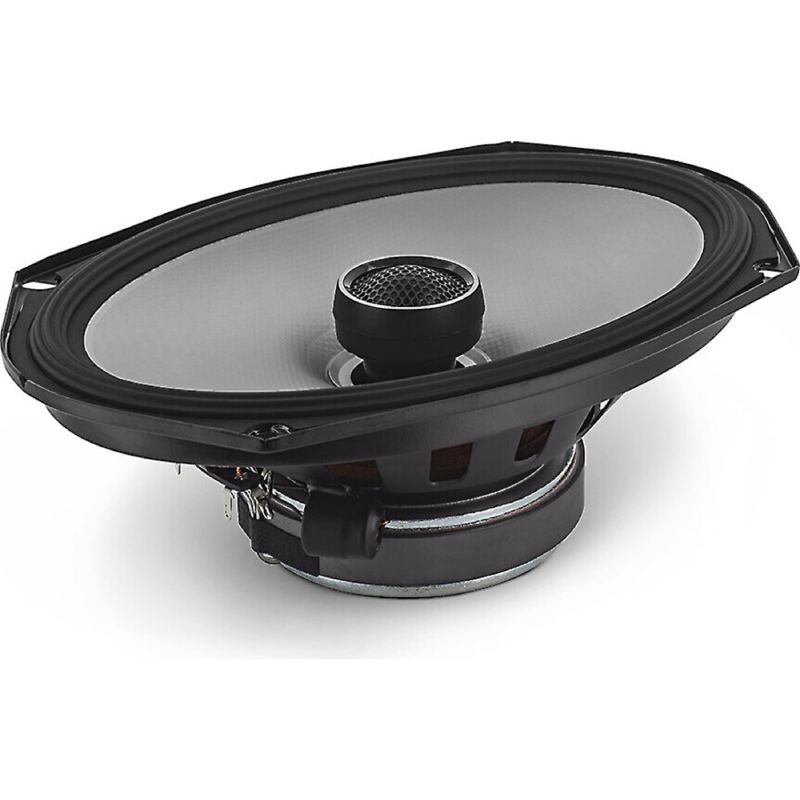

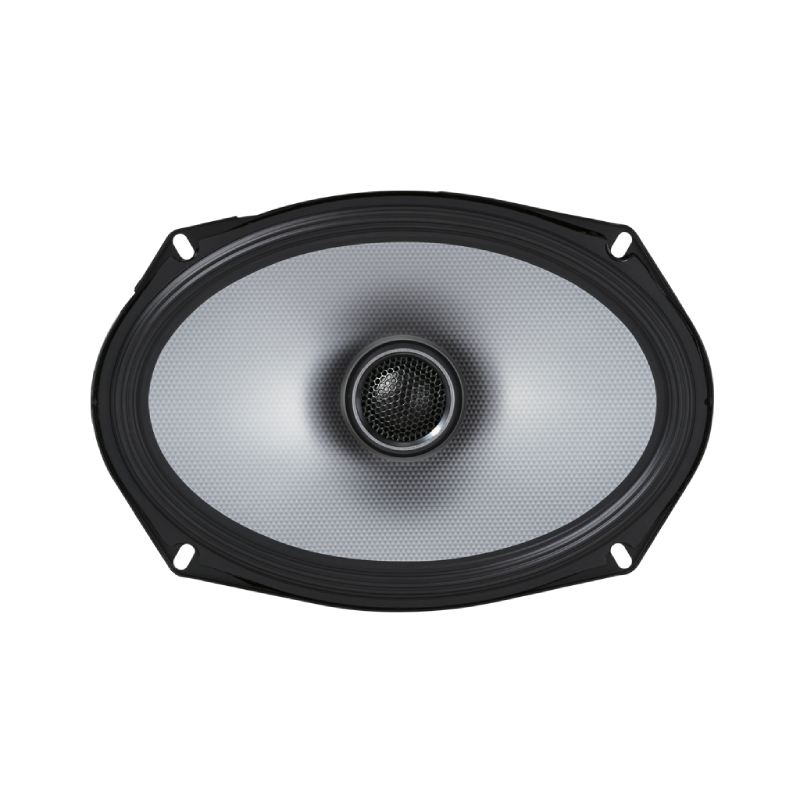

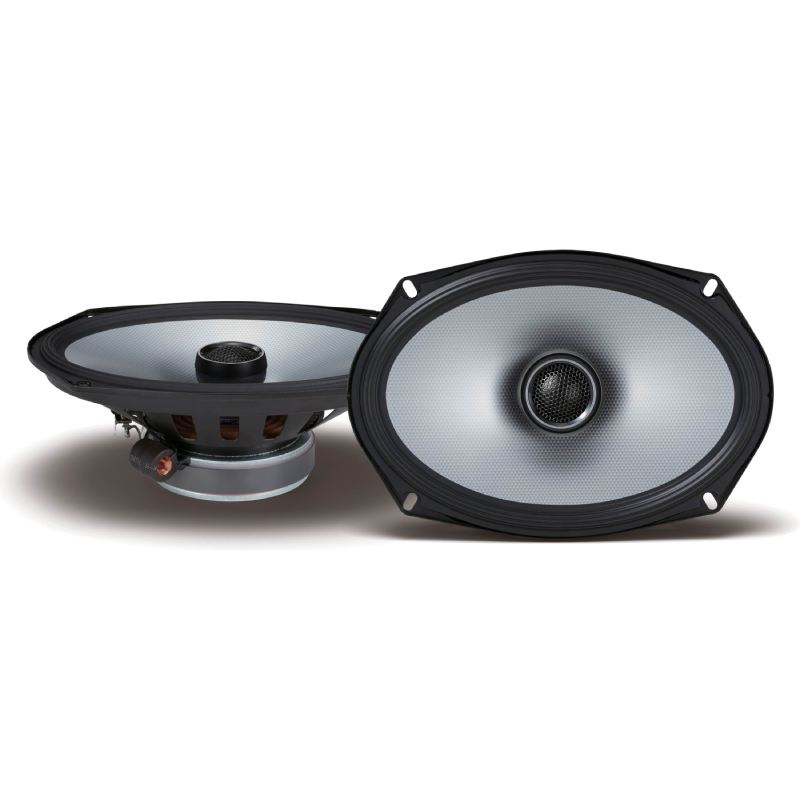

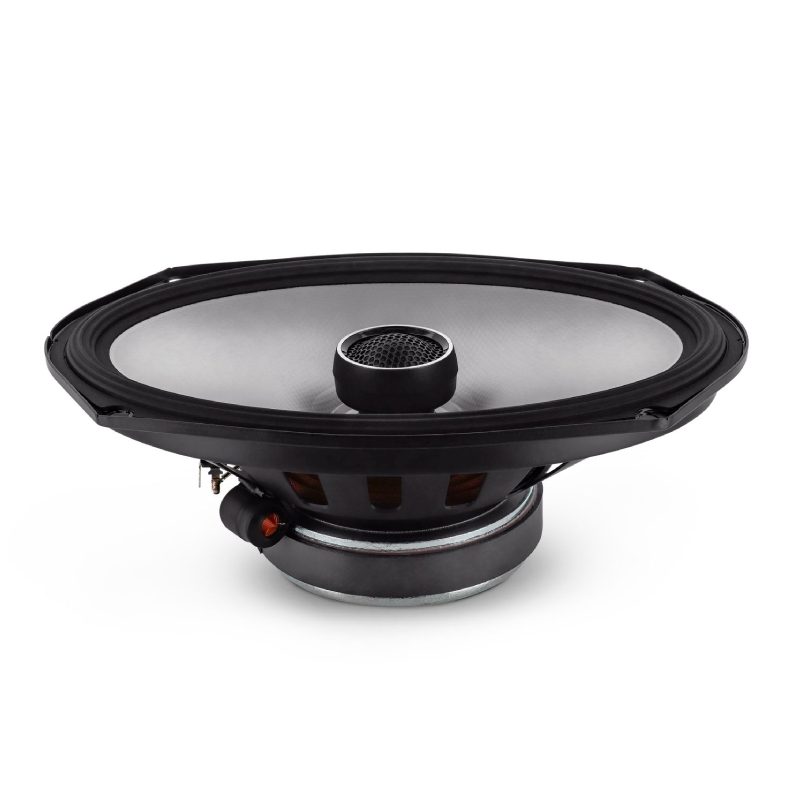

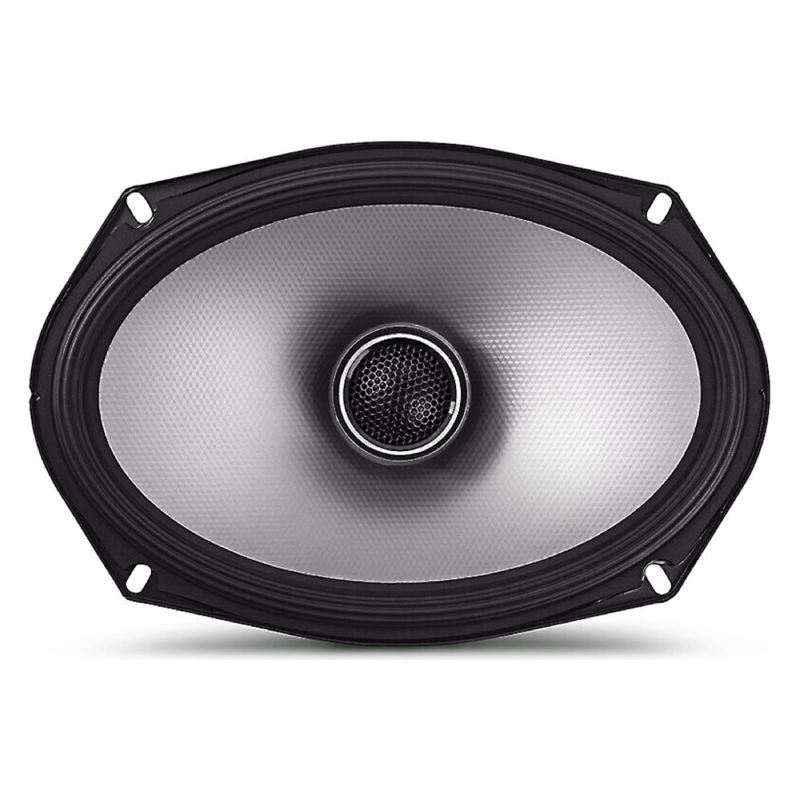

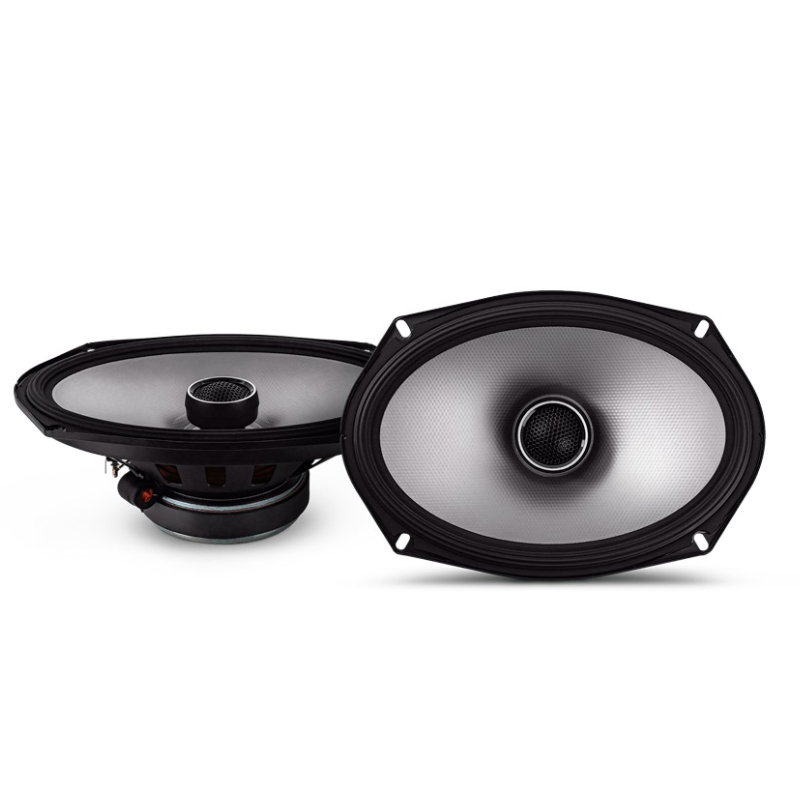

Alpine S2-S69 Next-Generation S-Series 6"x9" 85W RMS (260W Peak Power Handling) 4 Ohms 2-way Car Speakers
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

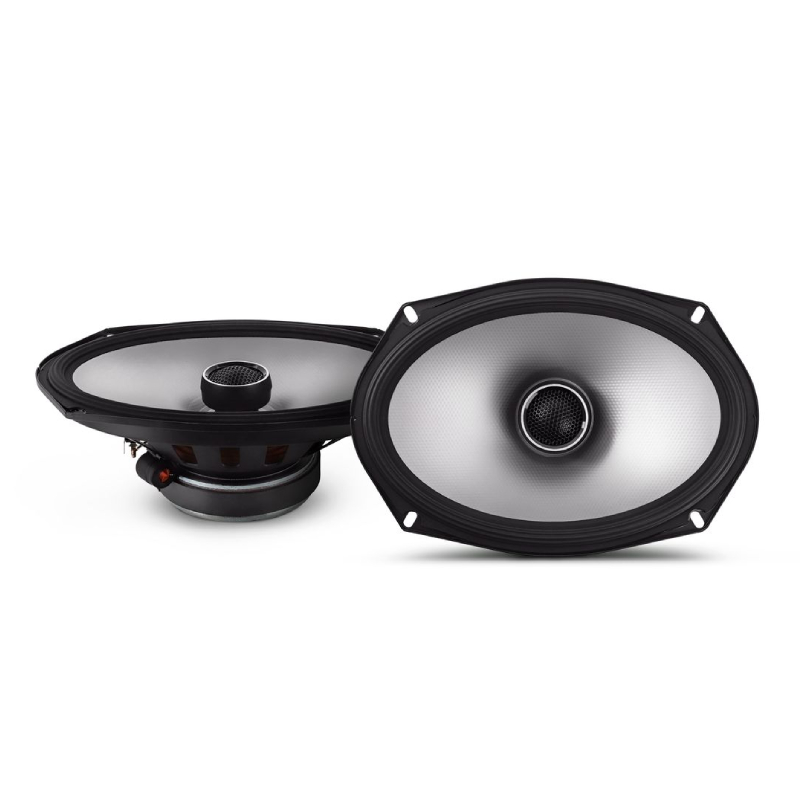

•(2) 2-way speakers
•(2) Bottom mount brackets
•(2) 12" Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
•(8) 1-1/8" Screws
•(8) M4x60mm Machine screws (each screw has a lock washer attached)
•(8) M4 Nuts
•8 Speed clips
•(16) Flat washers
•On-line product registration information
•Important Notice sheet
•Declaration of conformity
•Template and specs on box
• Owner's Manual
Hi-Res Audio Certified
All-New for S-Series, Hi-Res Audio Certification brings a whole new dimension of sonic excellence to your everyday drive. With an impressive extended dynamic range, playing upper harmonics all the way up to 40kHz, your tracks will come alive with a level of detail and nuance faithful to that of the original recording.

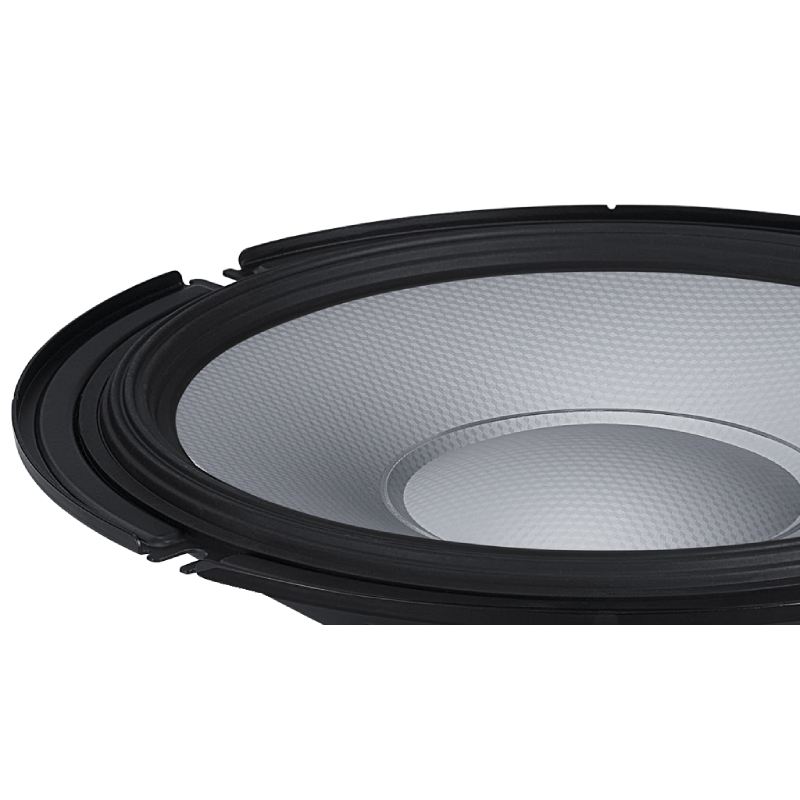

Not only does Alpine’s patented High Amplitude Multi-Roll (HAMR) surround maintain full control over the cone at any stage of excursion for high SPL. It’s ability to far exceed the maximum linear excursion of regular domed surround allows for beautifully pure sound and punchy bass.
Integrated Hi-Resolution Soft Dome Tweeter
The integrated 1″ Soft Dome Tweeters allow your music to come alive! Playing upper harmonics climbing all the way to 40kHz, these beautifully soft yet remarkably detailed tweeters are Hi-Res Audio Certified, bringing the studio to the dashboard with a level of nuance and authenticity not possible with traditional speakers.

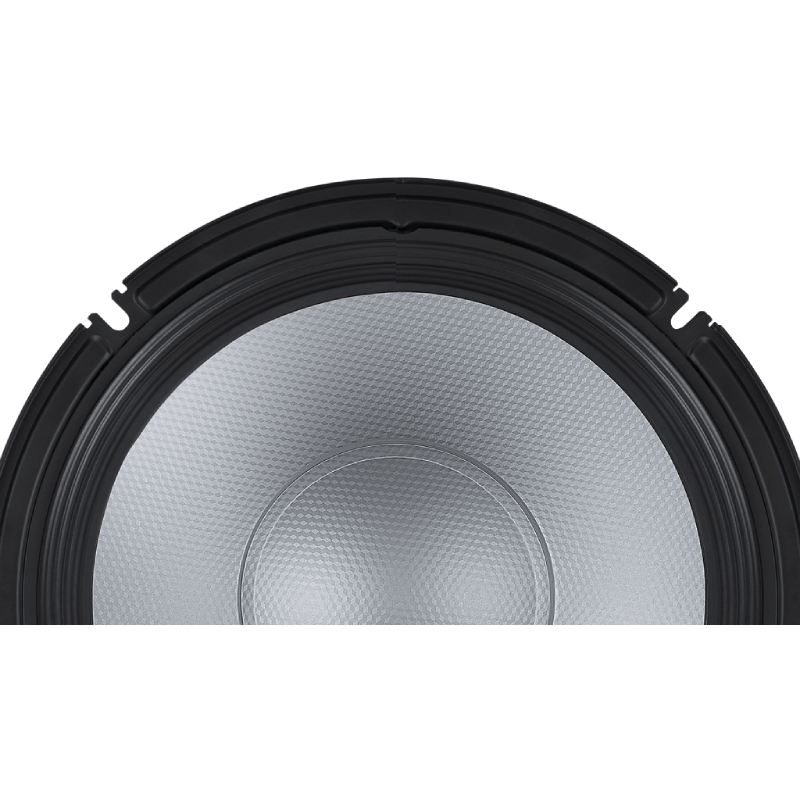

Glass Fiber Composite Woofer Cone
The door woofer features an all-new glass fiber composite cone, which due to its directionally weaved construction is engineered to be far stronger than a traditional oval cone diaphragm. The resulting rigidity coupled to glass-fiber’s innate lightness results in highly controlled cone excursion producing excellent response and audio reproduction.

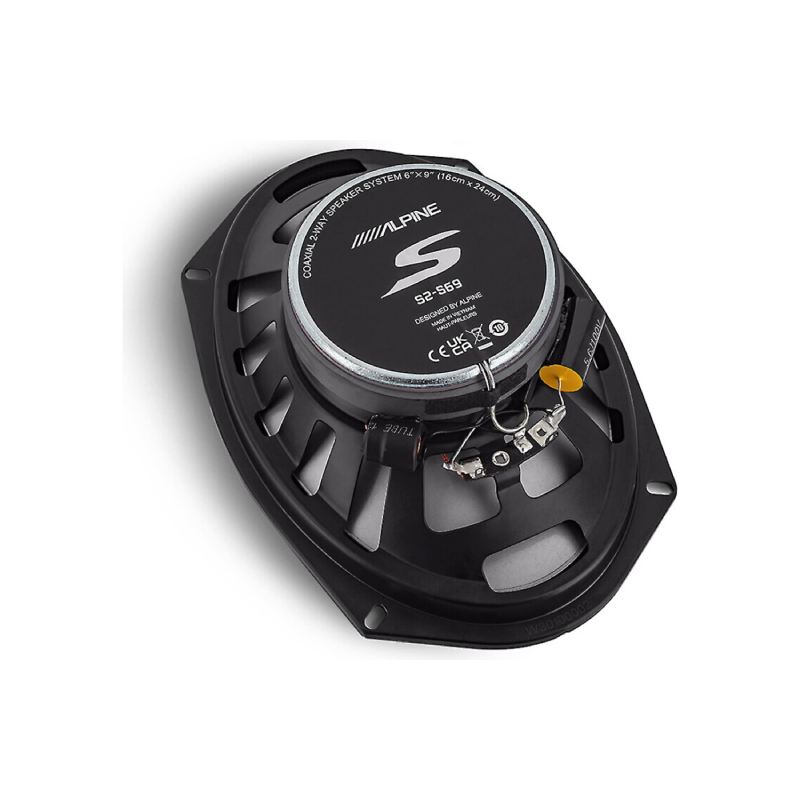

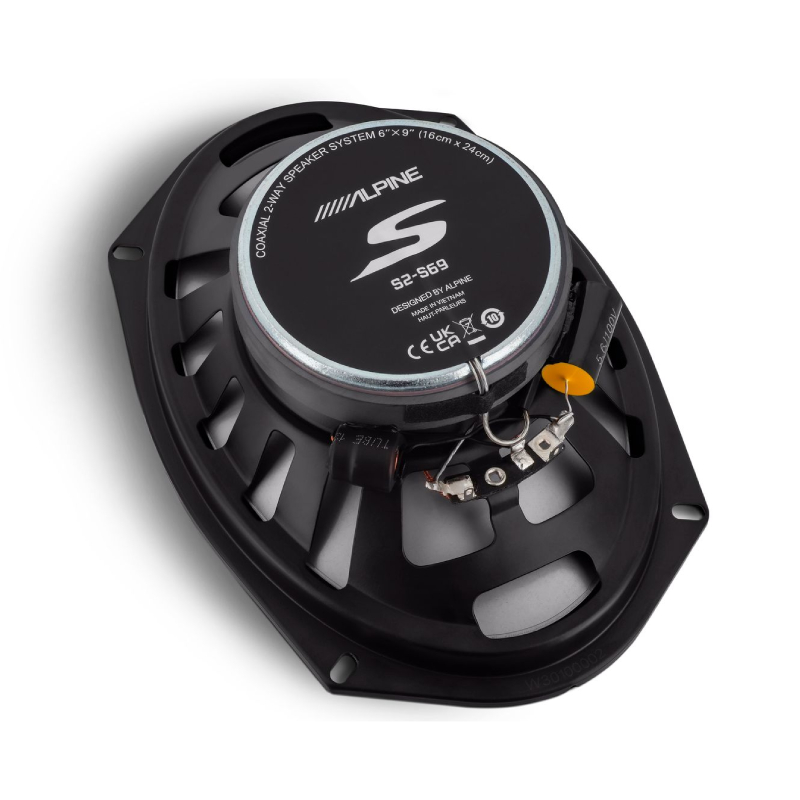

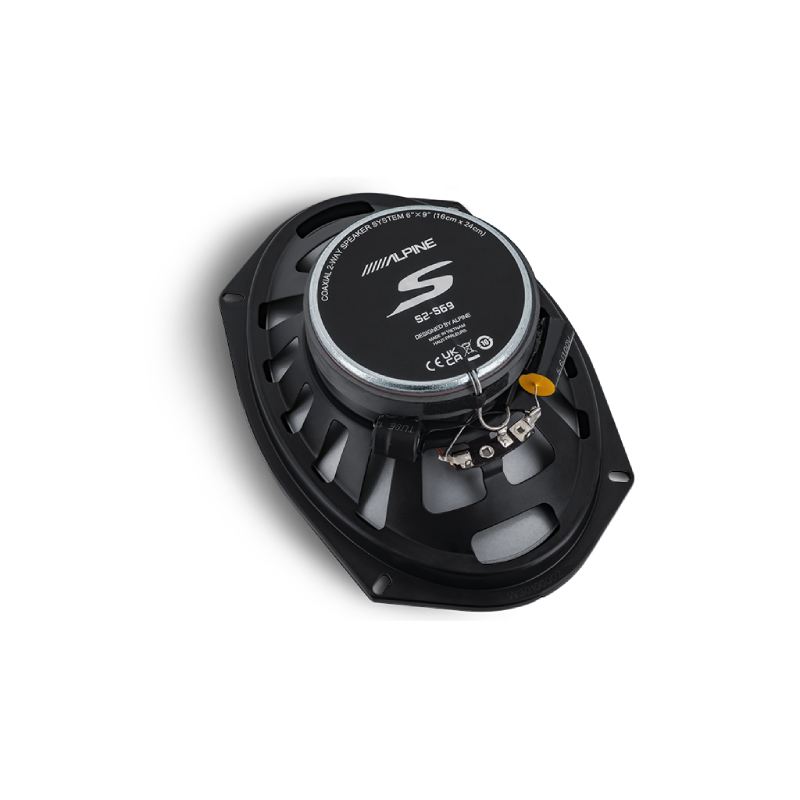

Large Magnet Structure
The large strontium magnets housed on the back of S-Series speakers mean business. Combined with large voice coils and Alpine’s patented HAMR Surrounds, increase cone excursion and the force of the driver to provide louder, punchier sound.

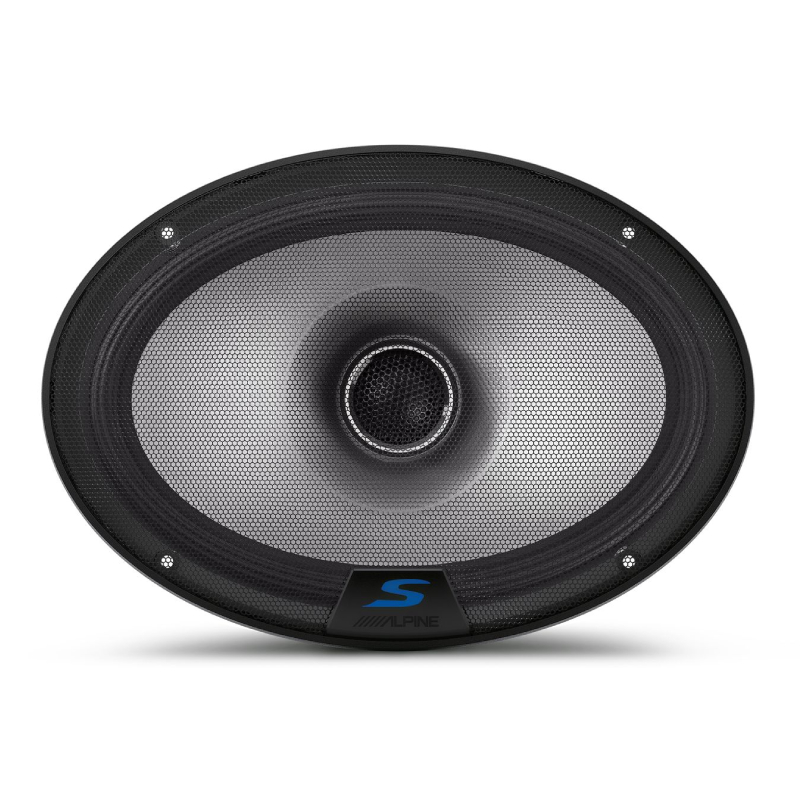

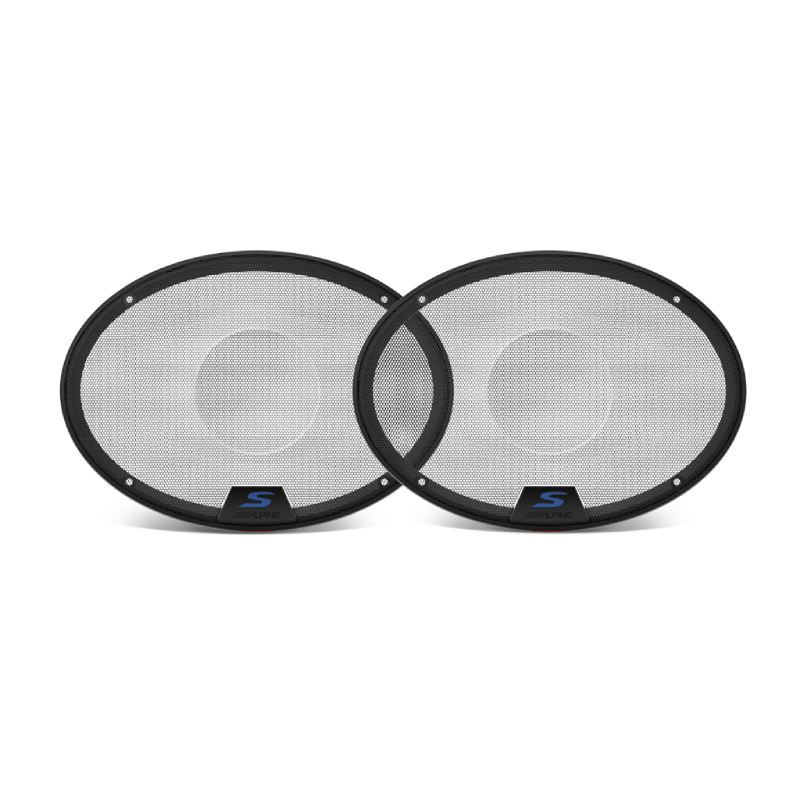

Protect your new S-Series speakers, these durable mesh speaker grilles are available for several speakers in the S-Series range and are packaged in pairs. See KTE-S69G (Sold Separately)
Sensitivity : 85 dB
Impedance : 4 Ohm
Frequency Response : 65 - 40k Hz
Peak Power Handling : 260 Watts
Design : 2 Way
Shallow Mount : 3
RMS Power Handling : 3 Watts
6×9″ (160cm x 240cm) Lightweight Glass Fiber Coaxial Speaker
HAMR (High Amplitude Multi-Roll) Surround
Large Voice Coil
Magnet Material: Strontium Ferrite
Grill sold separately: KTE-S69G
1″ Extended-Range Soft Dome Tweeter
Magnet Material: Ferrite
Tweeter Grill: Perforated Net
Woofer: Copper Air-Coiled Wound Inductor
Tweeter: High Grade Audio Poly Capacitor
Peak Power: 260 Watts
RMS Power: 85 Watts (CTA-2031 Compliant)
Frame 237 mm x 161mm
Cutout Diameter: 242mm x 152mm
Mounting Depth: 74.5 mm
Mounting Height: 7.3 mm
Magnet: 100.0 mm
Frequency Range: 55 Hz – 40 kHz
Impedance: 4 Ohms (DCR 3.7 ohms)
Sensitivity: 90 dB SPL (1W @1m)
Recommended Amplification: up to 85W RMS per channel
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
